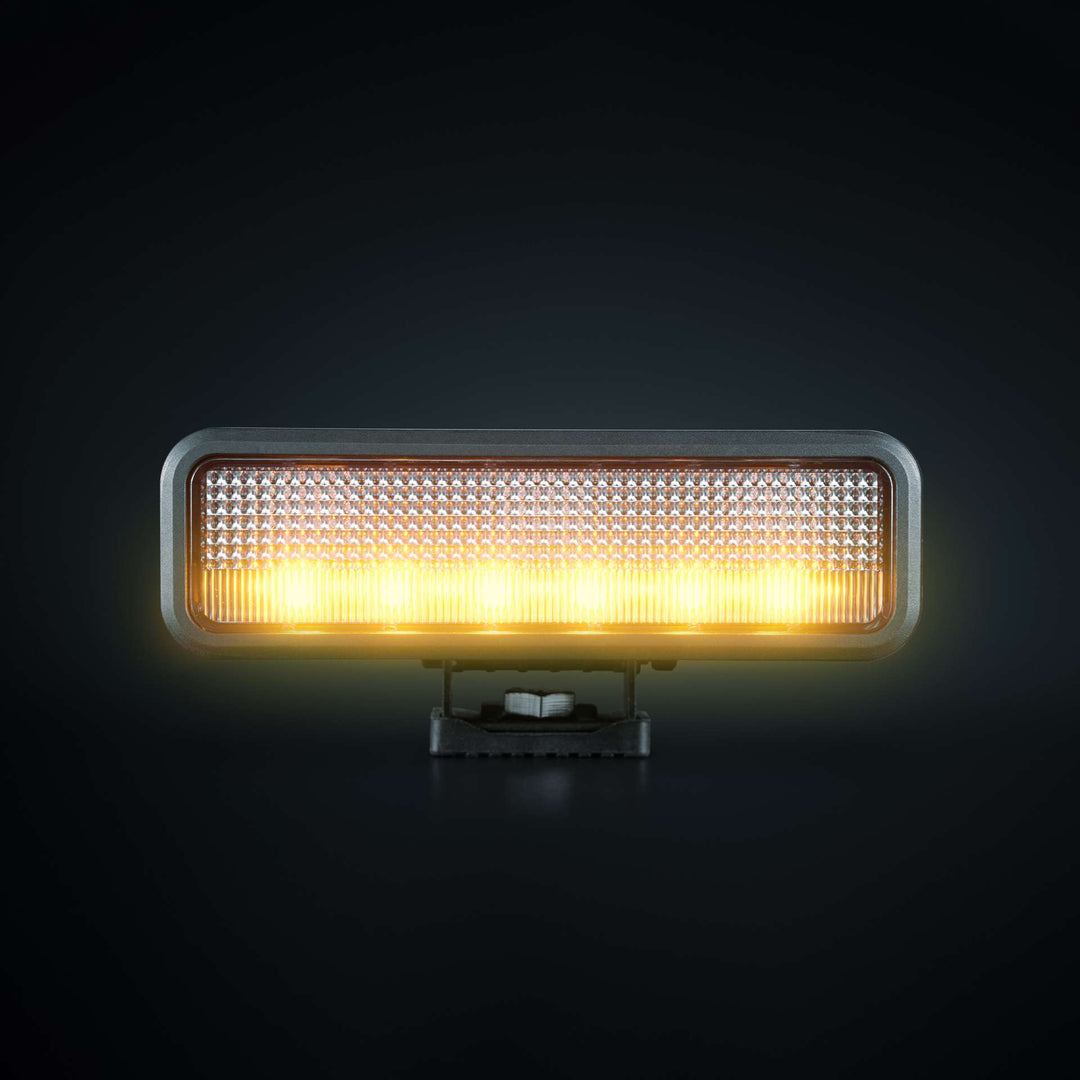

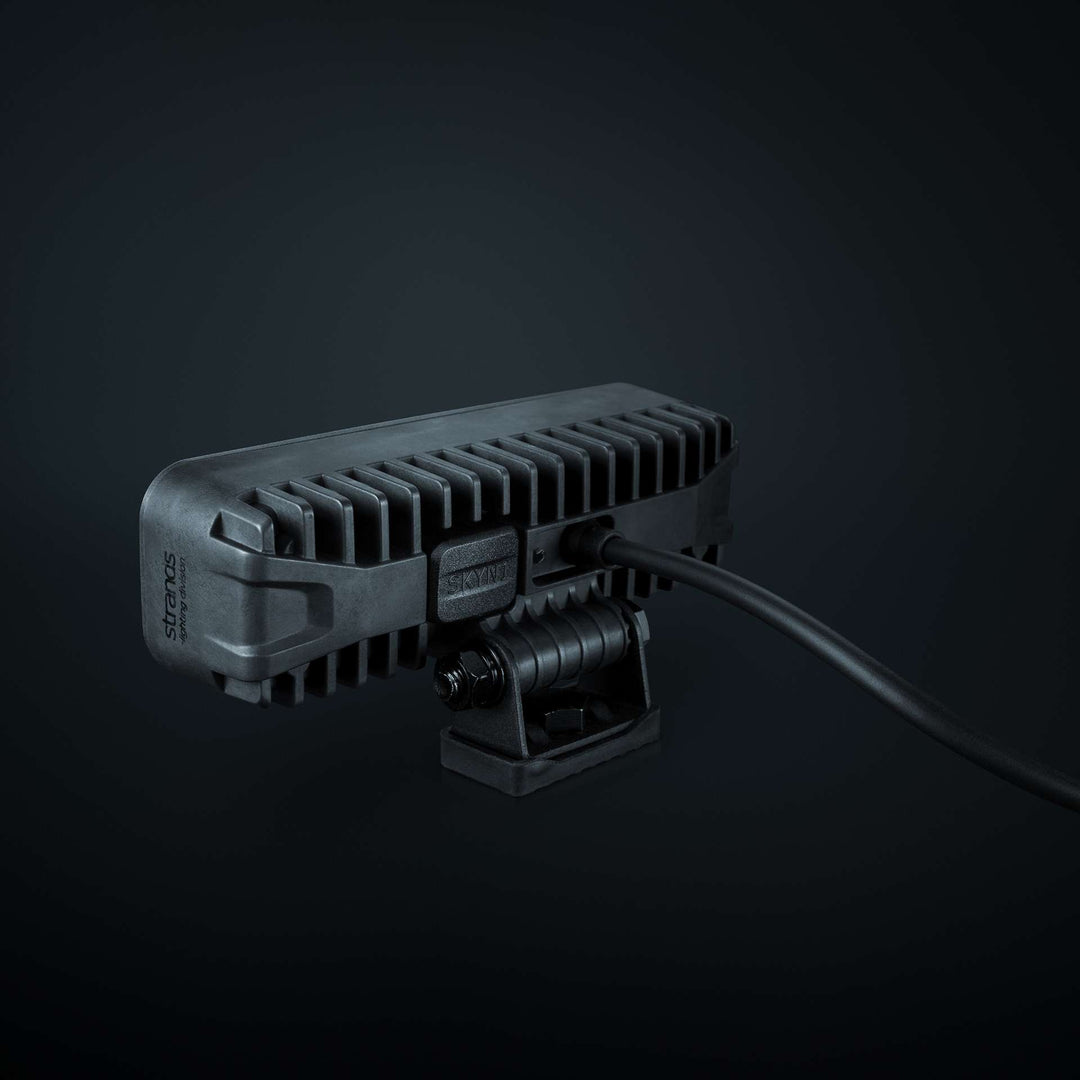

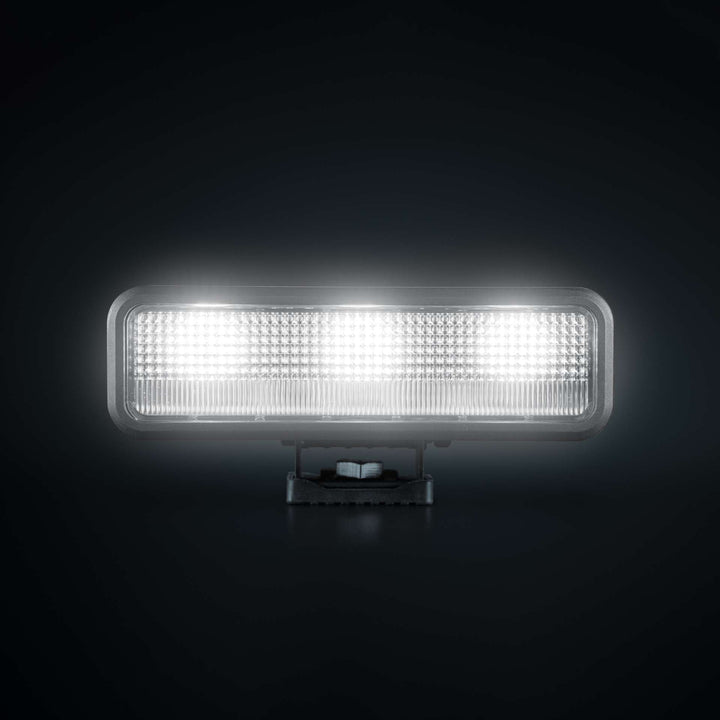

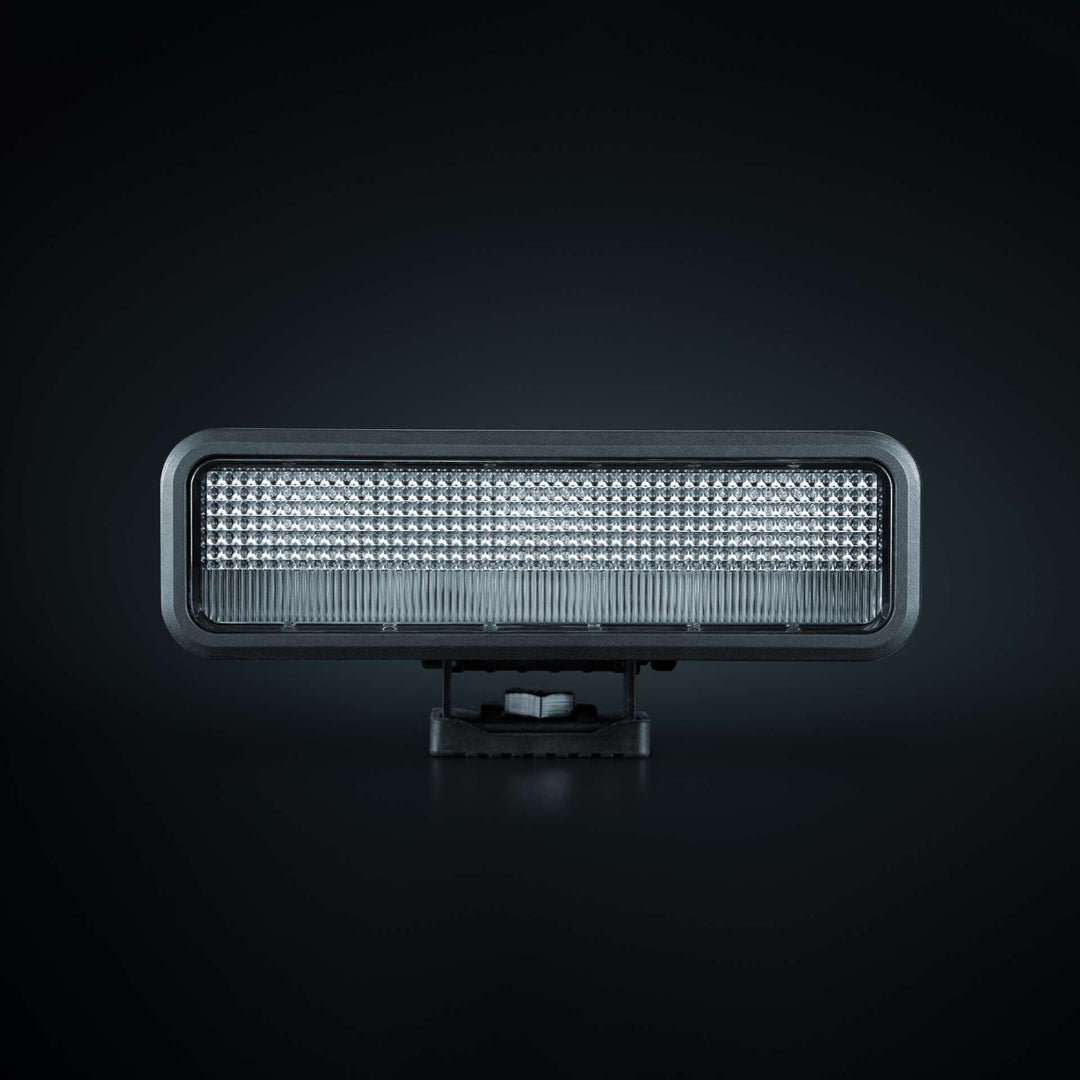

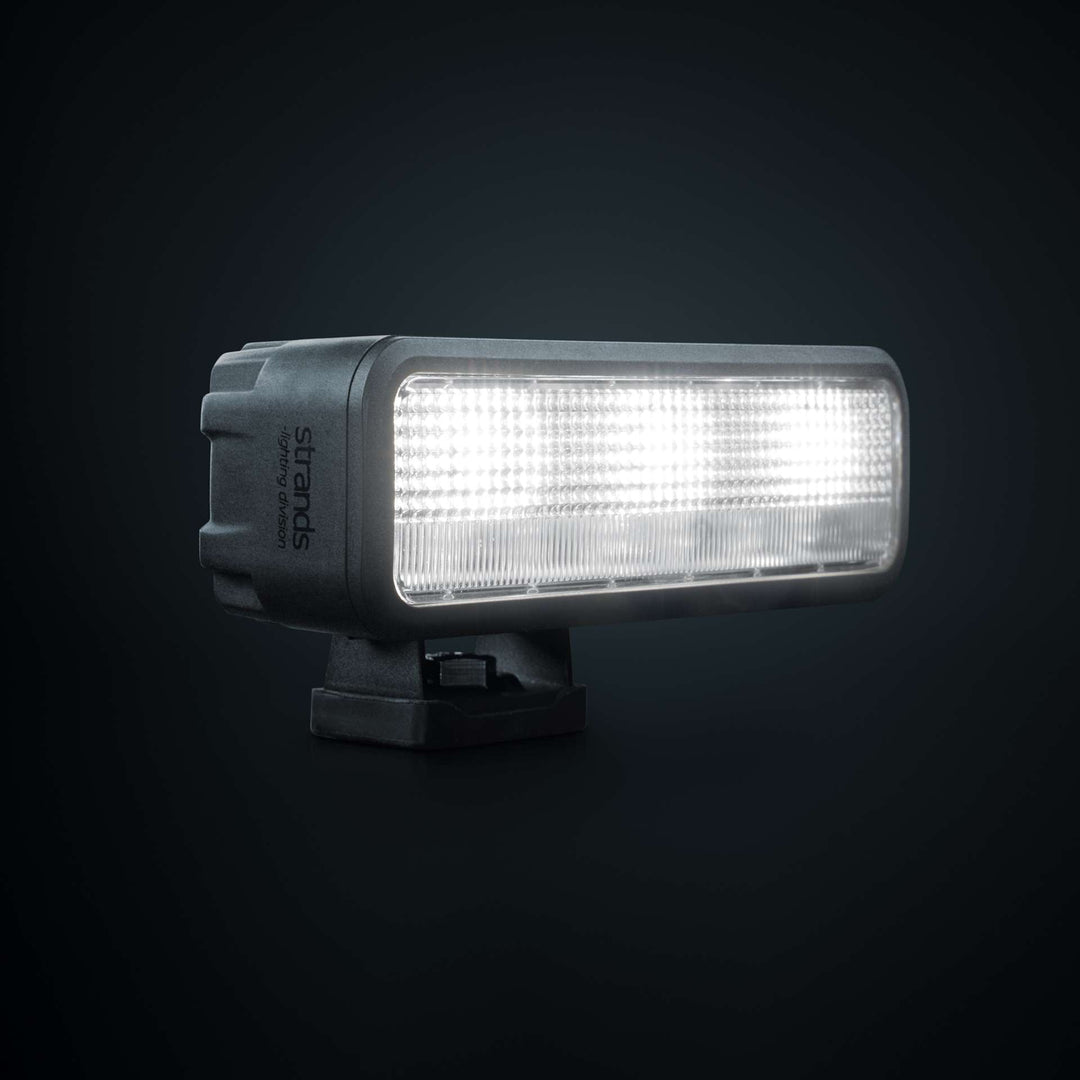

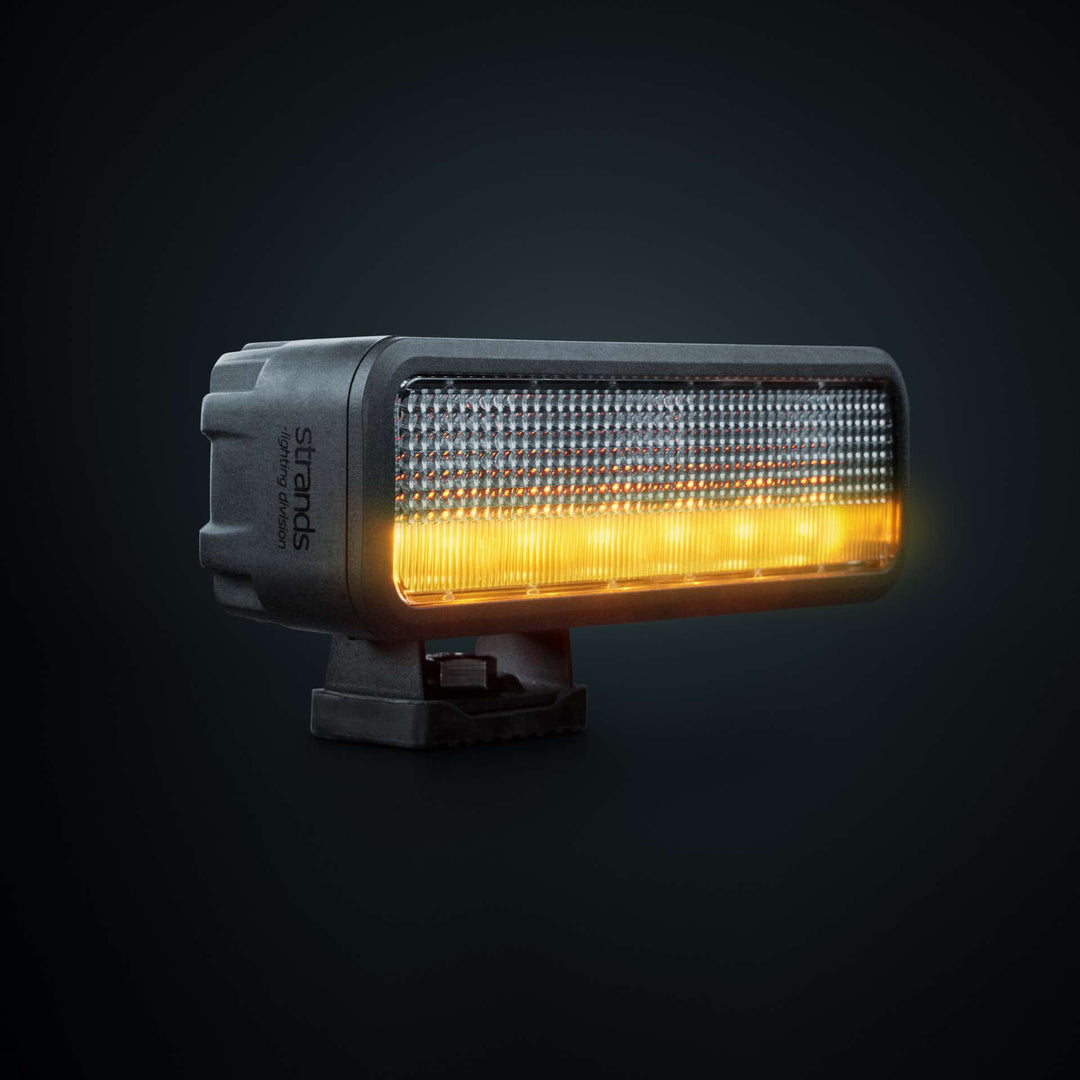

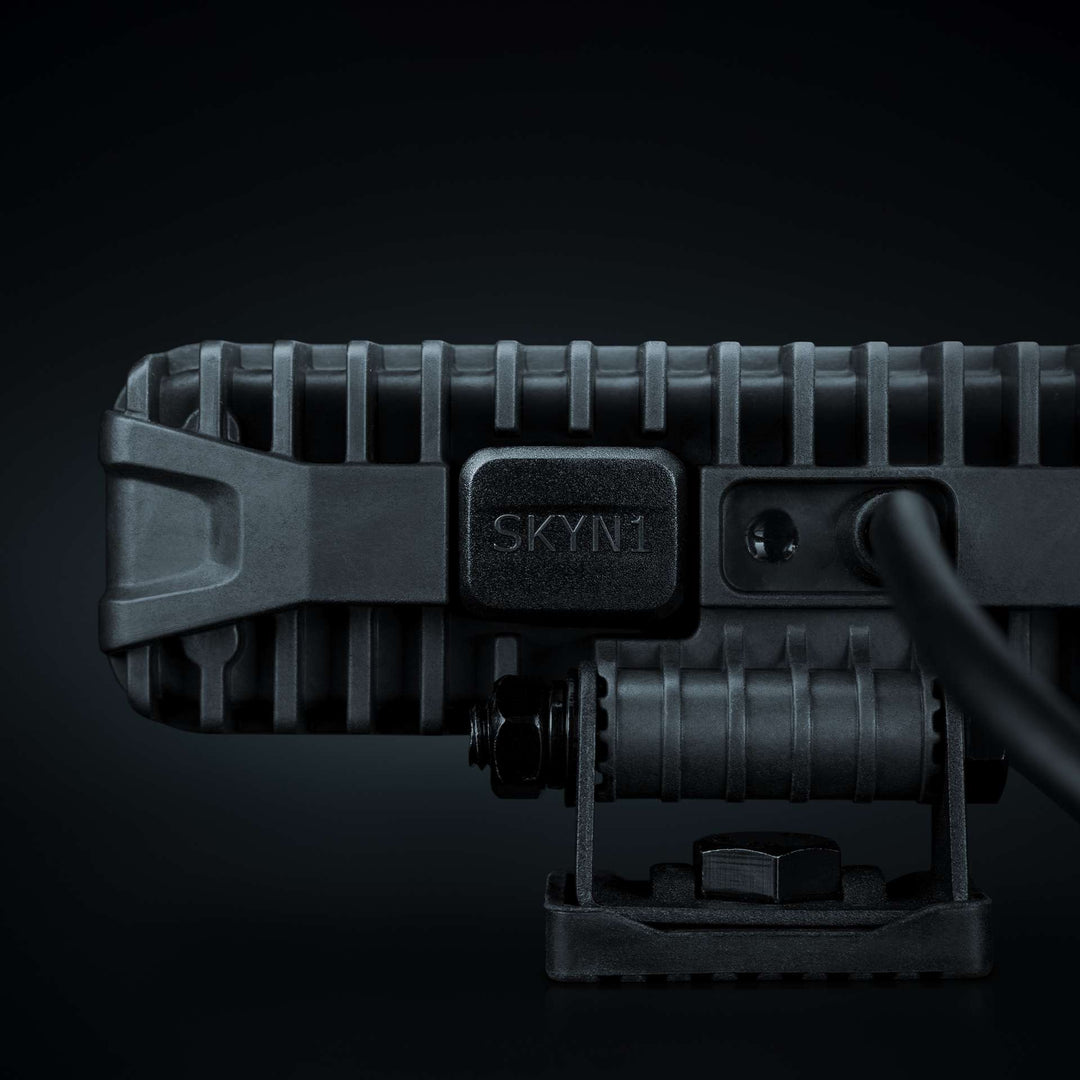

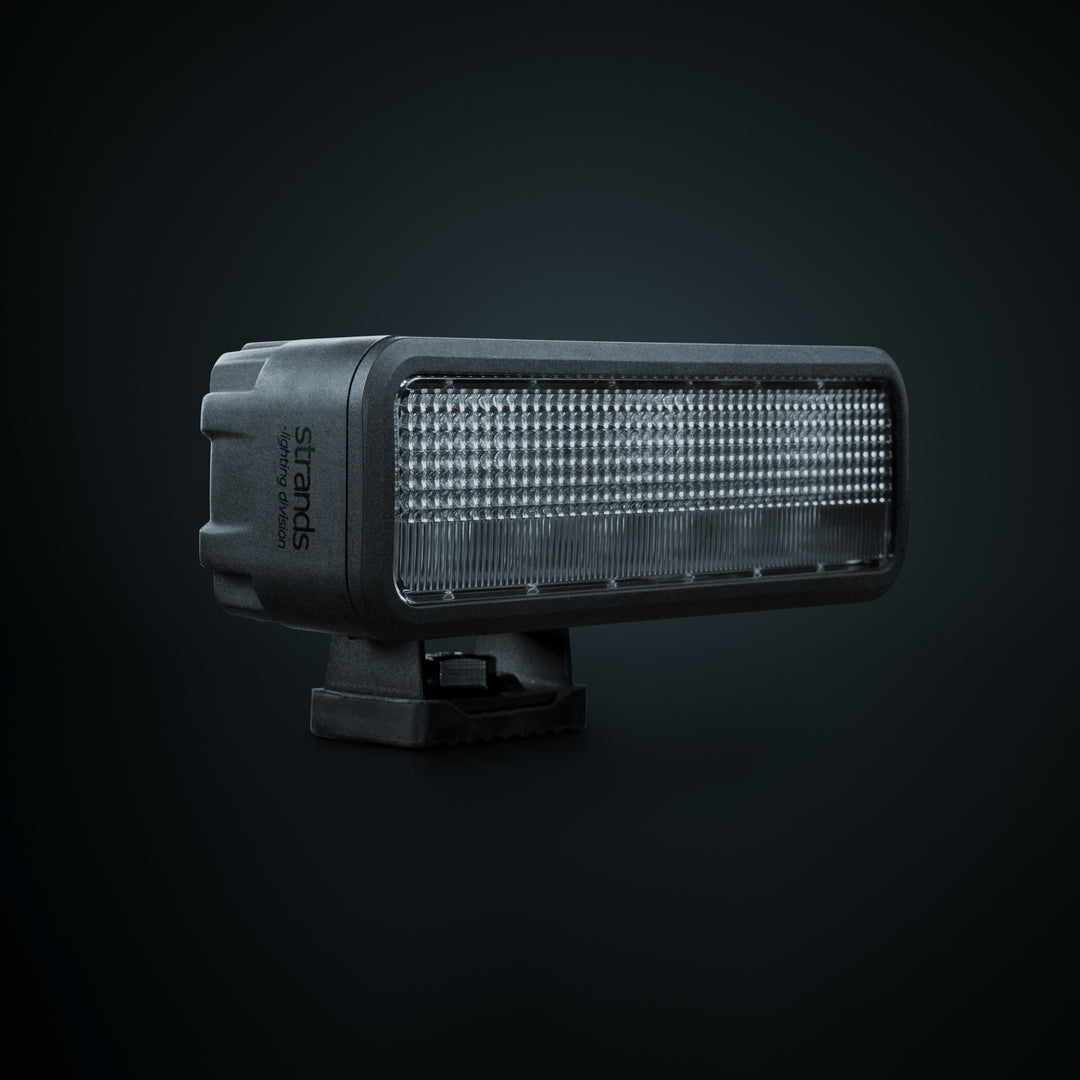

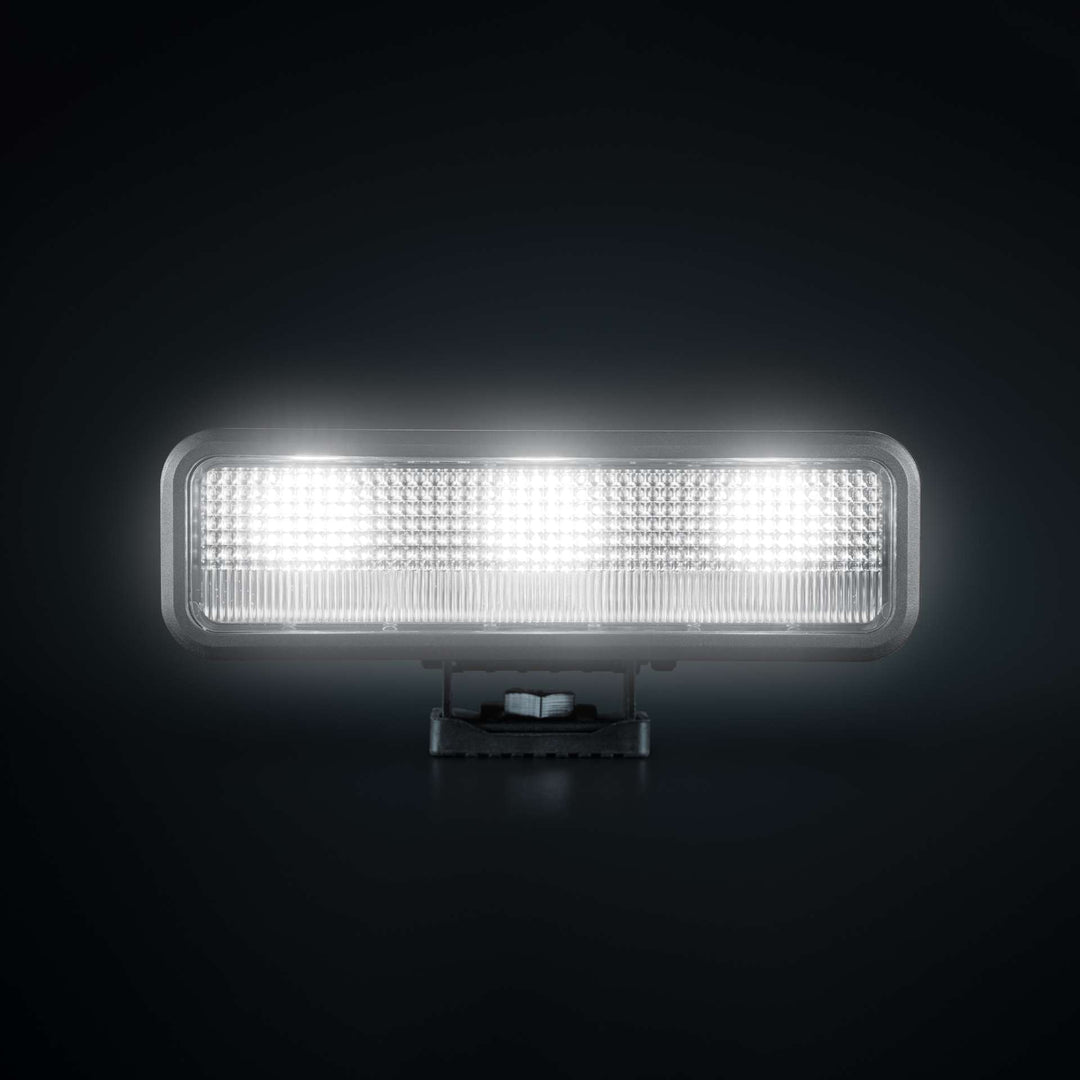

SKYLORD EXP DUO WARNING / REVERSE LIGHT 40W

The Skylord EXP Duo warning and reverse light combines an E-approved warning light and reverse light in one unit. Delivering 4,000 actual lumens, 1 lux @ 40 meters, and a 5700 K color temperature, it provides excellent visibility for reversing, maneuvering, and demanding work environments. The wide flood beam pattern ensures broad-area coverage, while approvals under R65, R23, and R10 make it suitable for professional vehicle applications.

Designed exclusively for the SKYN1 EXP system, the light connects wirelessly via Bluetooth to the EXP control (Part No. 907851S1), which is required for operation. Reverse light and warning light functions are automatically identified and assigned, reducing wiring and simplifying installation. Built from corrosion-free materials and IP69K-rated, the Skylord EXP Duo is engineered for demanding environments and backed by Strands’ 3-year warranty. Installation accessories are included.

Unit: PCS
Voltage (DC): 10–32V DC
Theoretical effect: 50W
Consumption: 42W
Functions: Warning light / Reverse light
Consumption specific function: Reverse light 42W / Warning light 2.8W
Patterns: 4
Theoretical lumen: 5000lm
Actual lumen: 4050lm
1 lux @: 38m
Color temperature: 5700K
Beam pattern: Flood beam
Beam angle: 124.1°
Connection: DT-2PIN
Cable length: 550mm
Color housing: Dark grey
Color lens: Clear
Color LED's: White / Amber
Material bracket: Stainless Steel
Material housing/chassi: Thermal plastic
Material lens: Polycarbonate

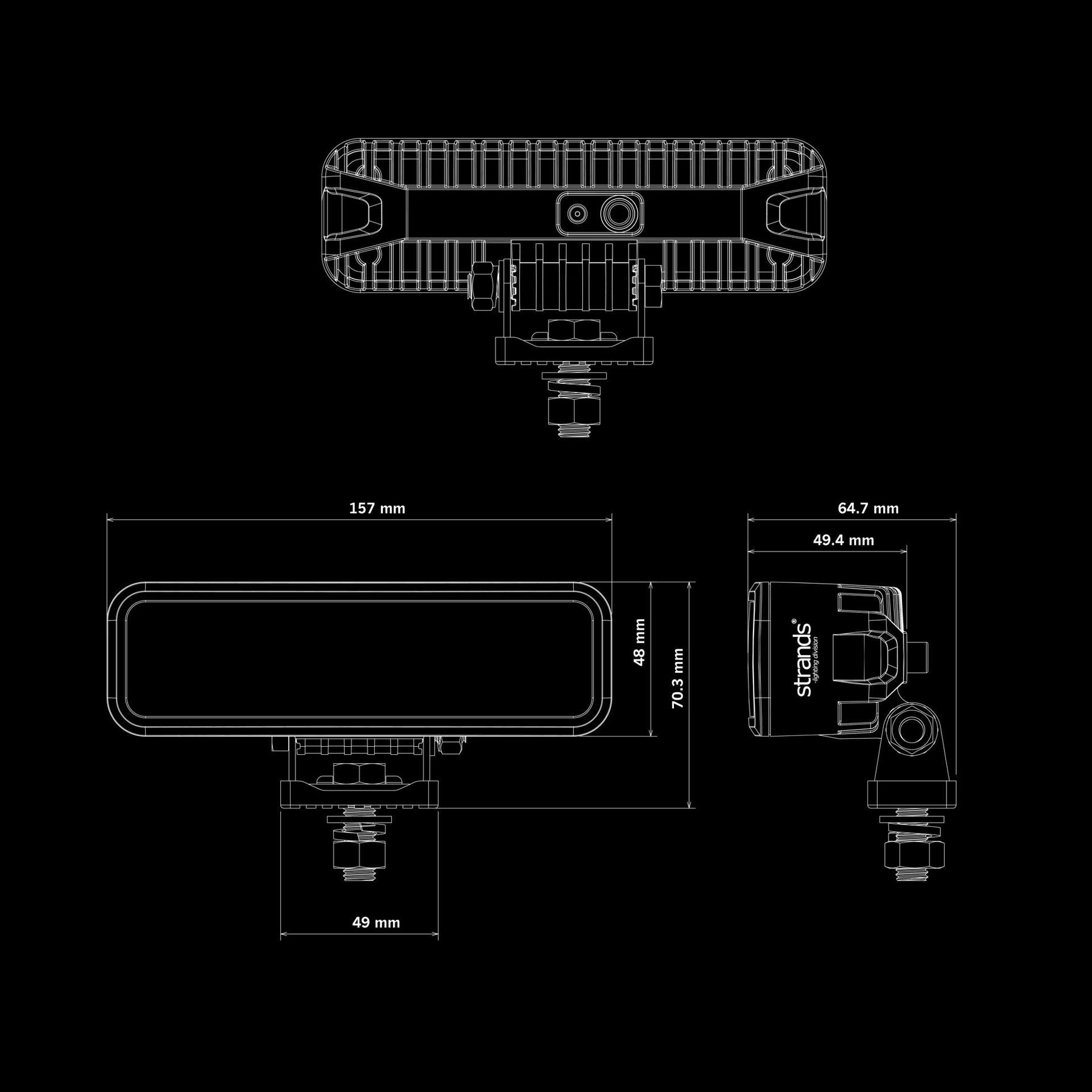

Length: 157mm
Depth: 64.7mm
Height: 48mm
Height including bracket: 70.3mm
Weight: 0.41kg
IP-class: IP69K
Operating temperature: -35° – +60°C
E-approved: Yes
ECE approval: R23 / R65 Class 2 / R10.07 / CE-RED
Other approval: SIG Bluetooth
Additional information: Works with SKYN1 EXP CONTROLLER 907851S1
