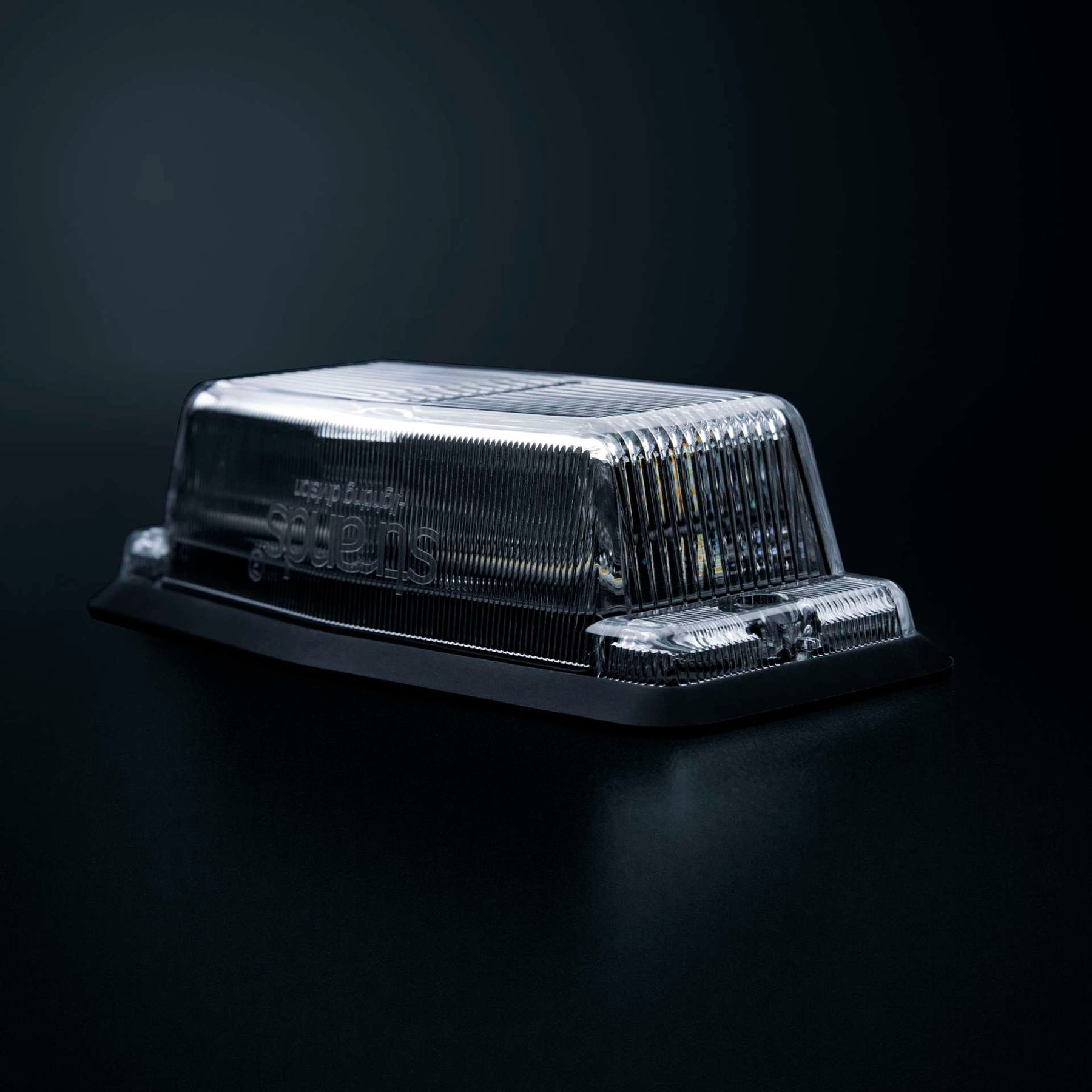

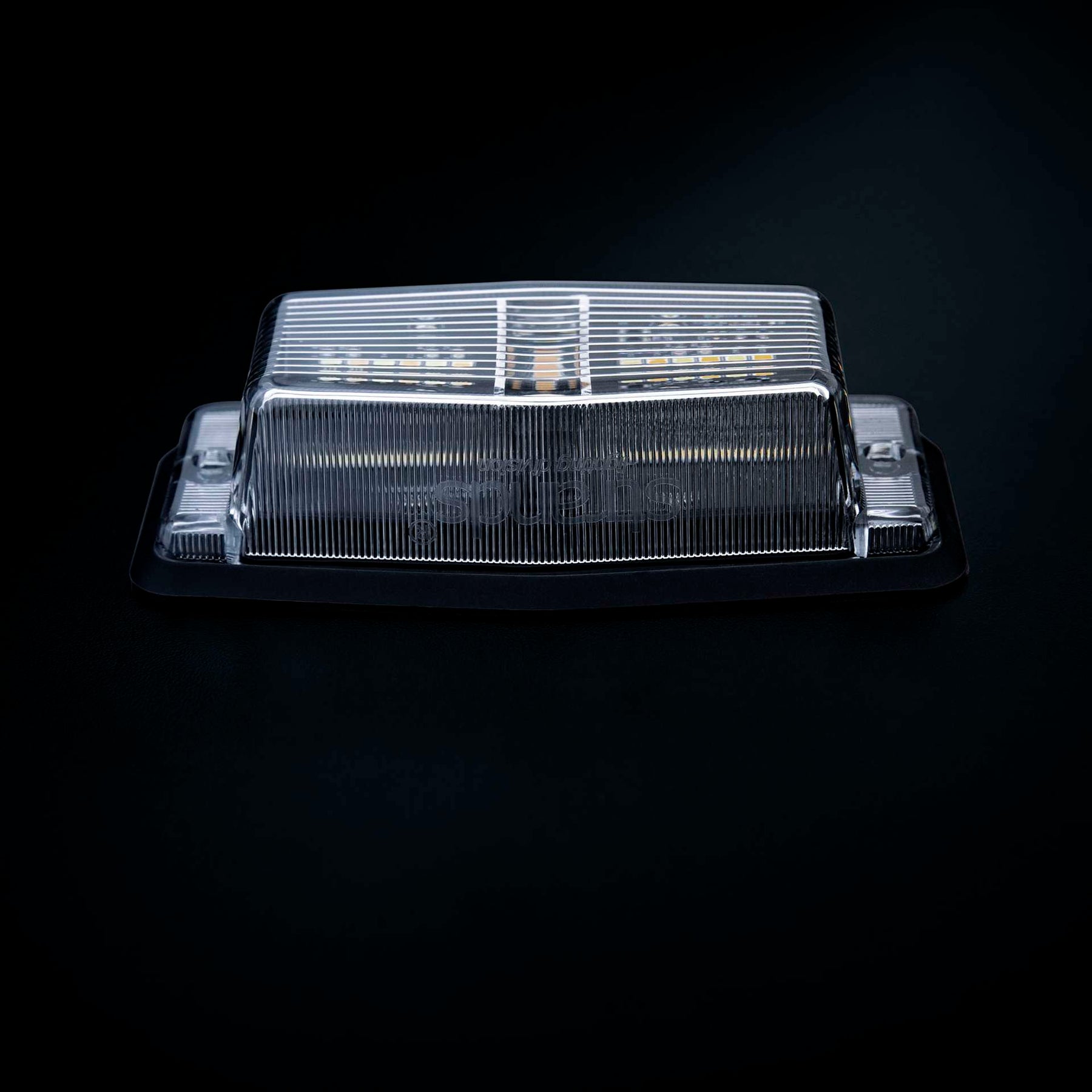

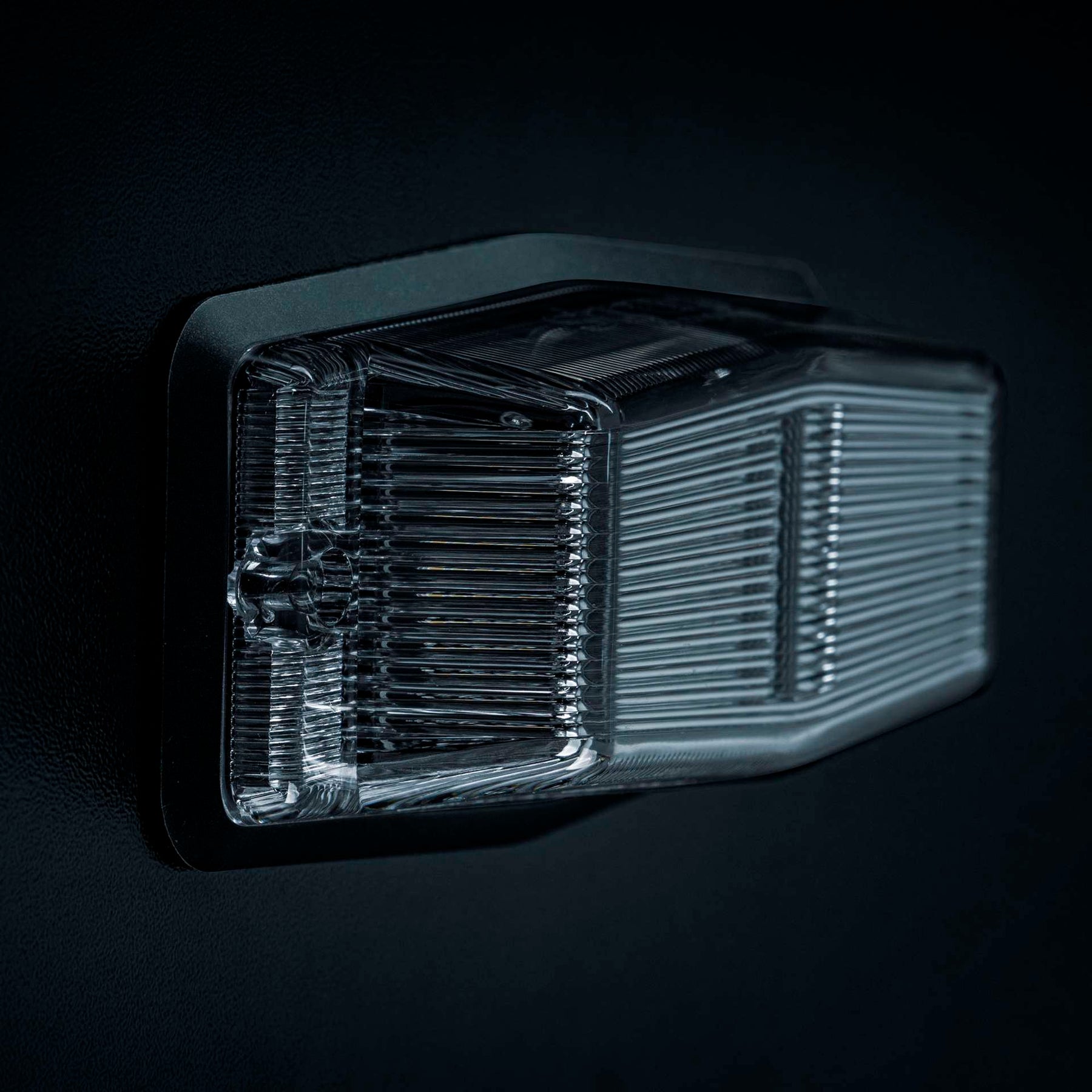

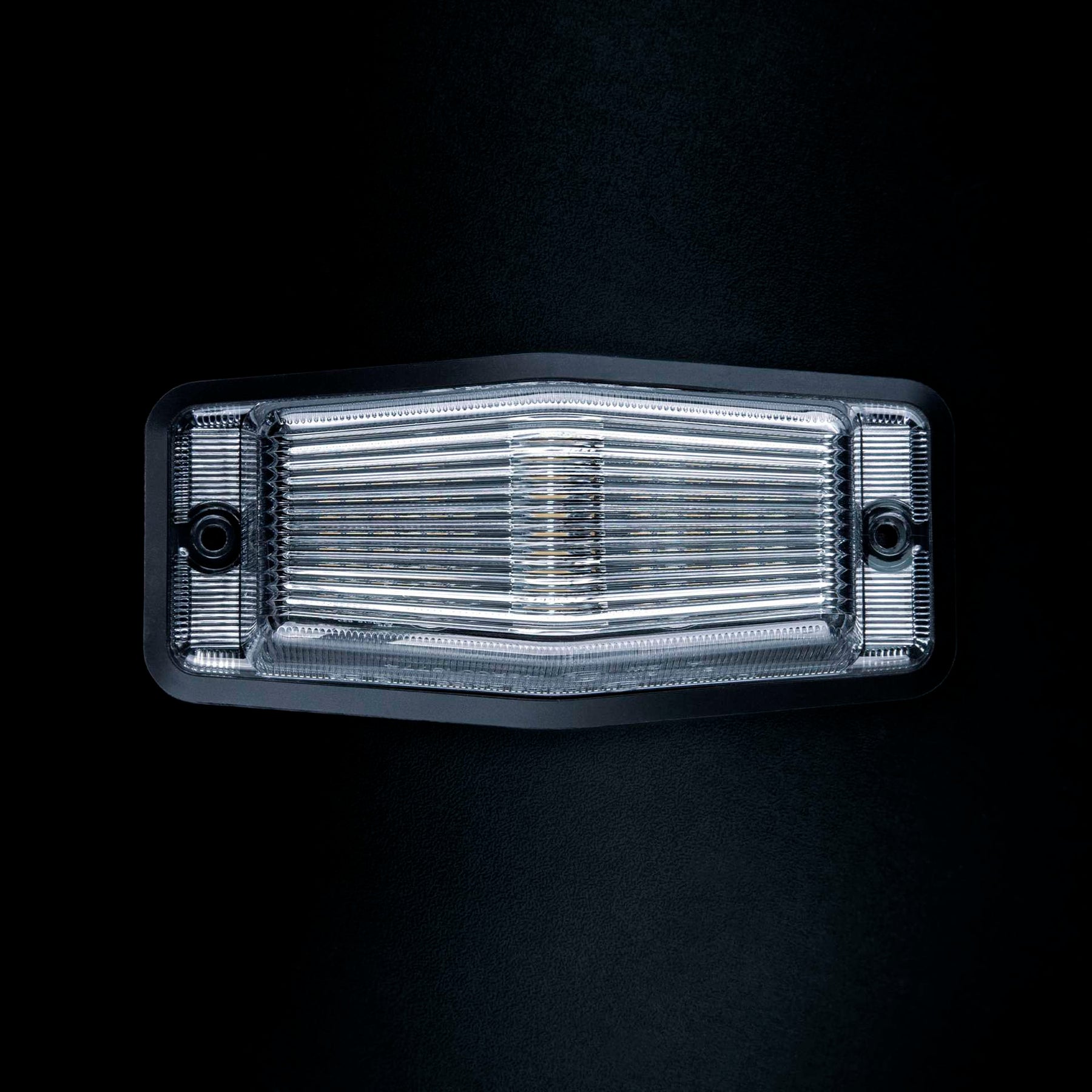

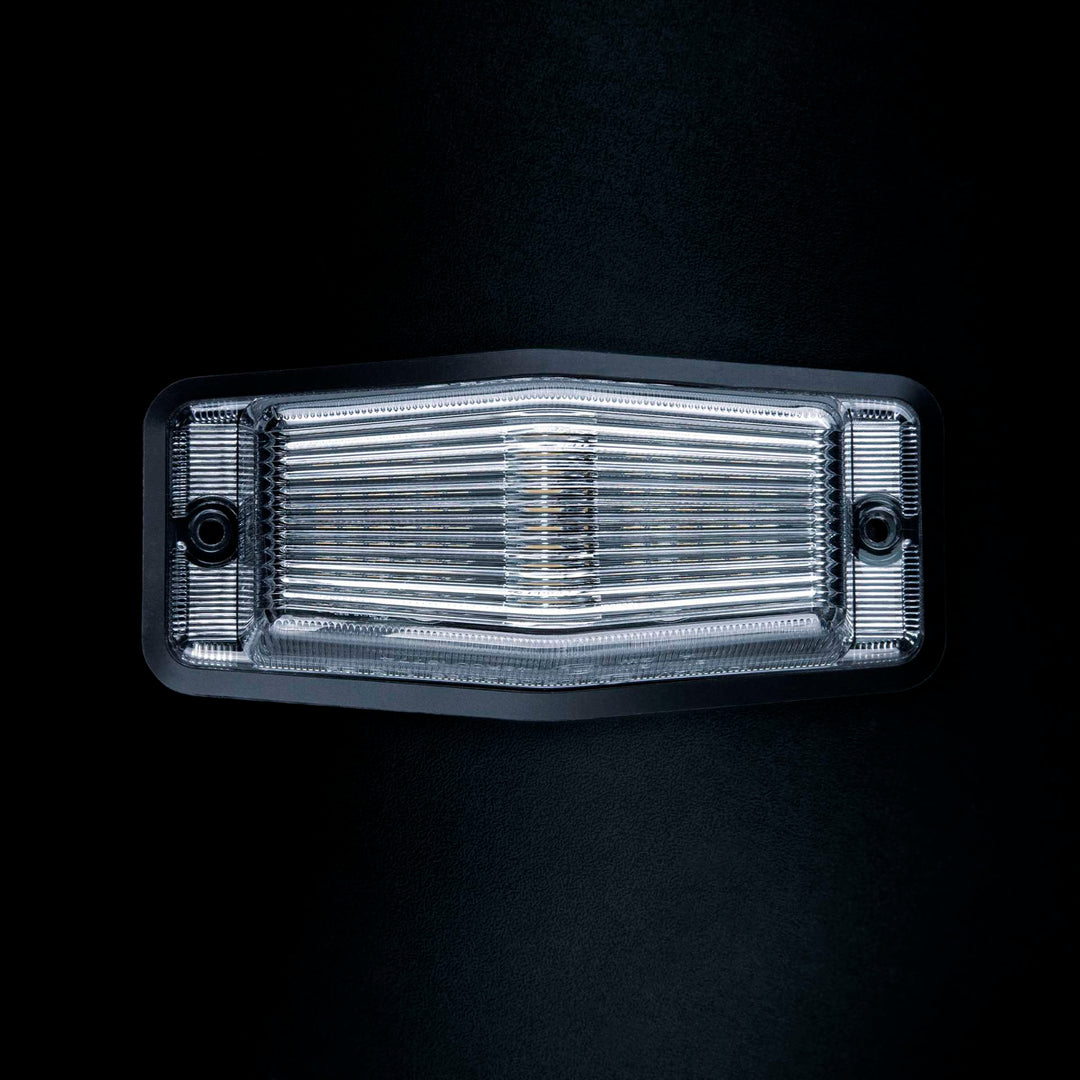

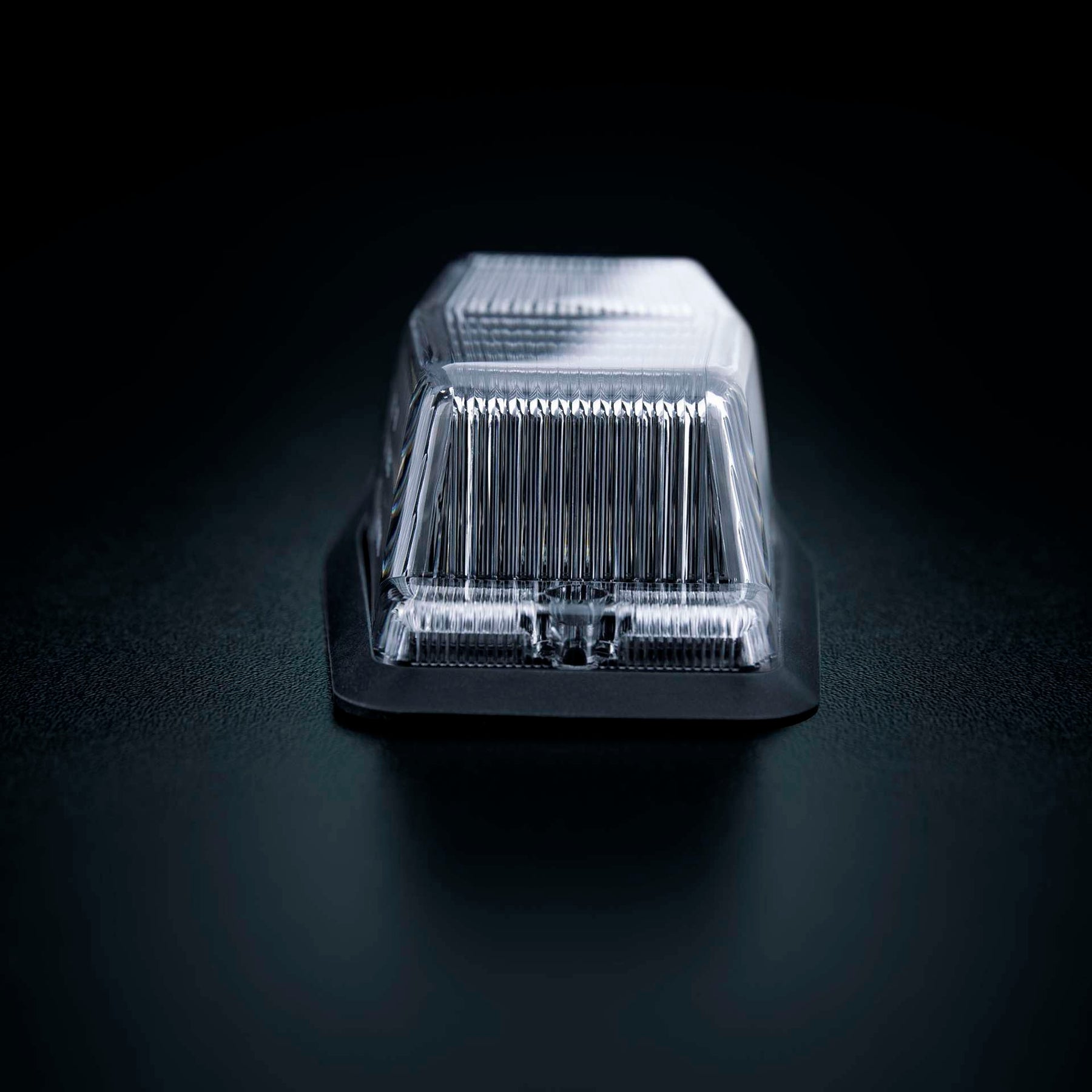

IZE LED SILVER ARROW DOUBLE BURNER DUO

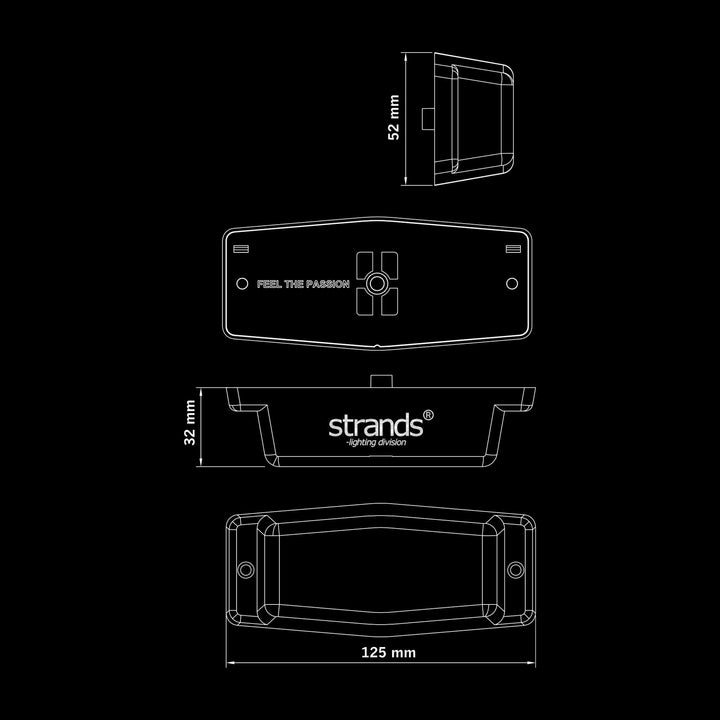

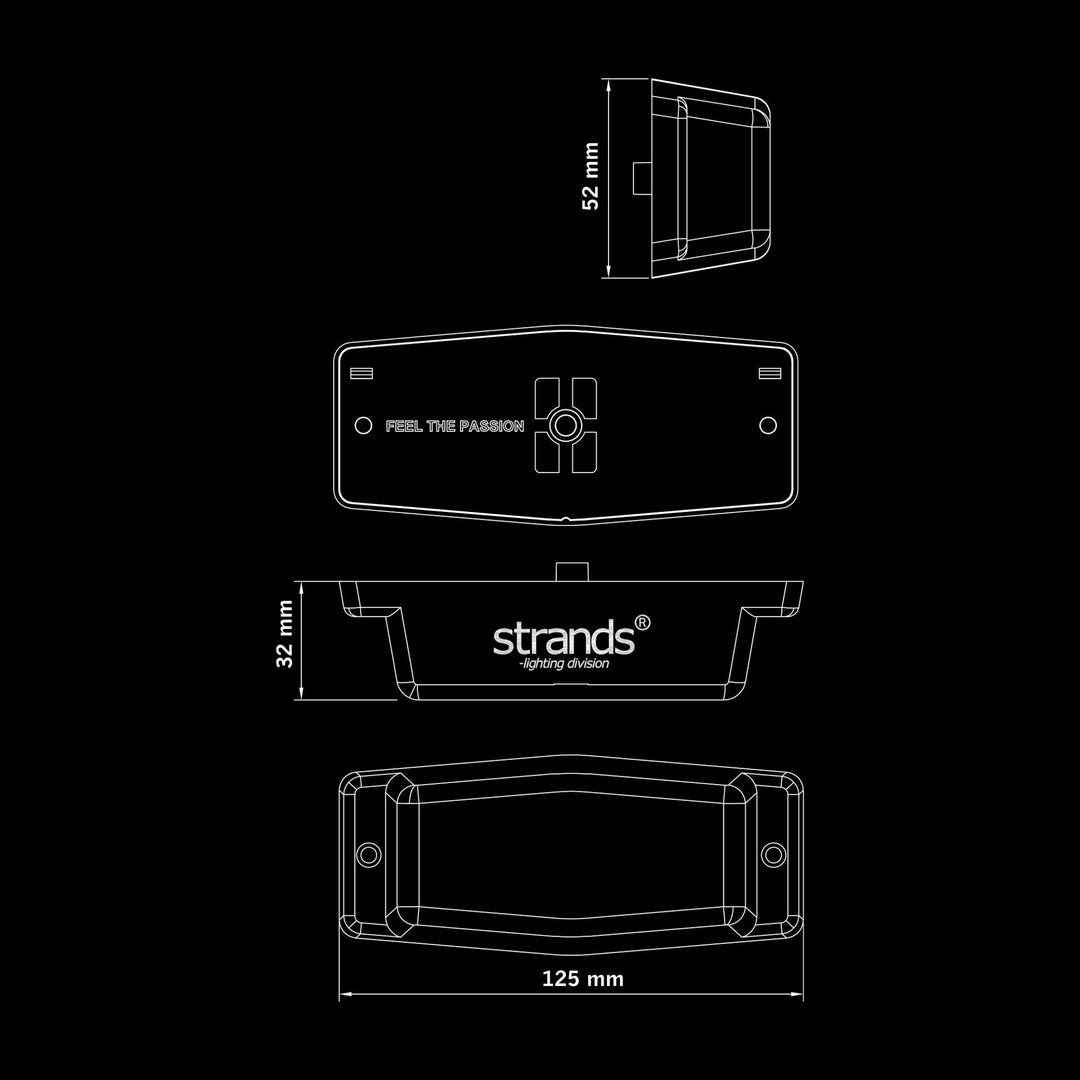

You want it old-school, we make it pro. White and amber position light, built-in warning light with 19 patterns, clear lens, and lasting quality make this light a perfect companion for years to come. Strands’ 3-year function warranty guarantees the quality. Made from corrosion-free polycarbonate and IP-rated IP69K, you can be sure this light will tackle heavy rain, dirt, and extreme temperatures with flying colors. So you don’t need to miss out on either old-school style or cutting-edge quality. The IZE LED Silver Arrow is E-approved for front position light and side marker (R148 (R7, R91)), and EMC-certified ECE R10. It is sturdy and compact, measuring 125x52x32 mm and 109 mm CC, with a 1000 mm cable.

Unit: PCS
Voltage (DC): 10–32V DC
Theoretical effect: 10W
Consumption: 8.5W

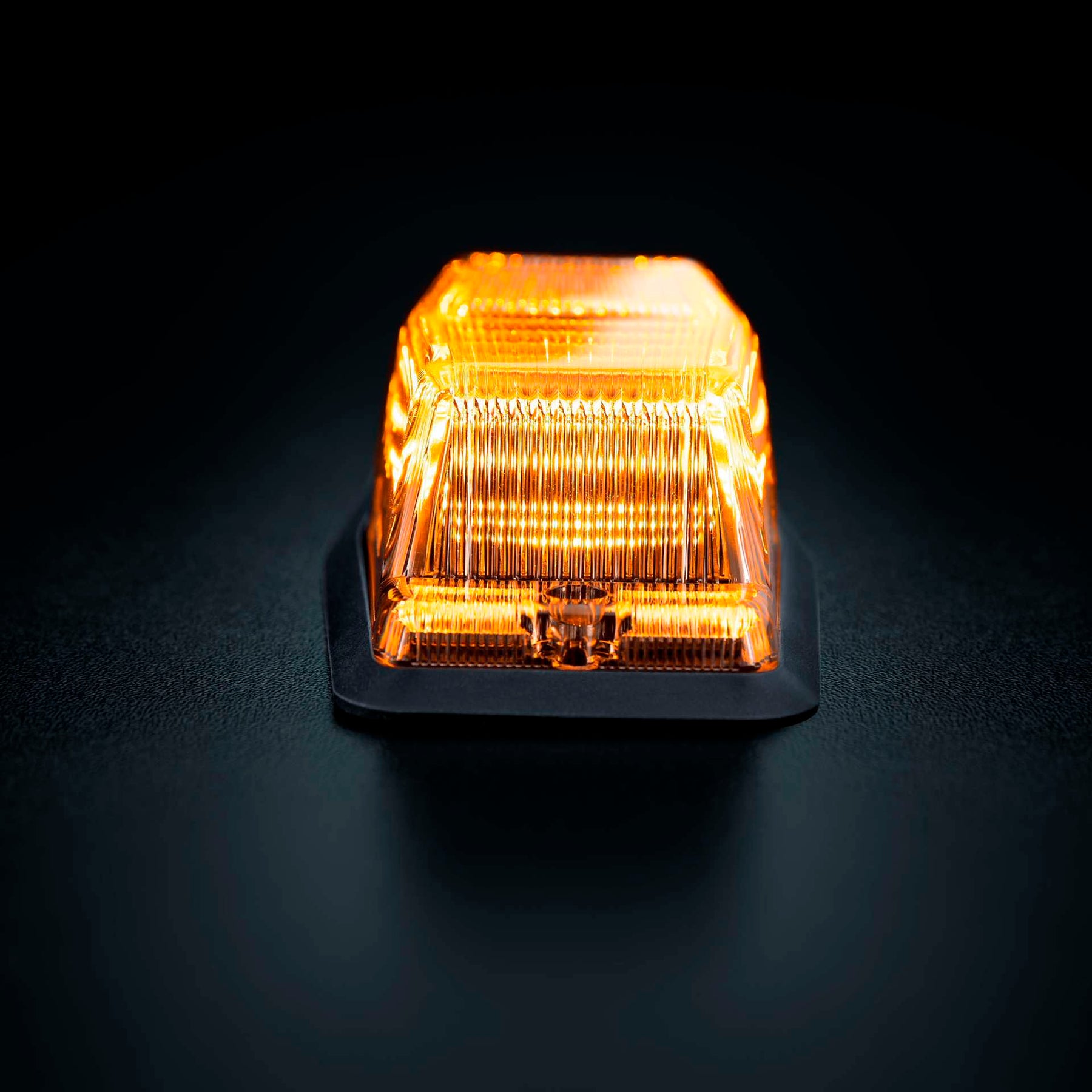

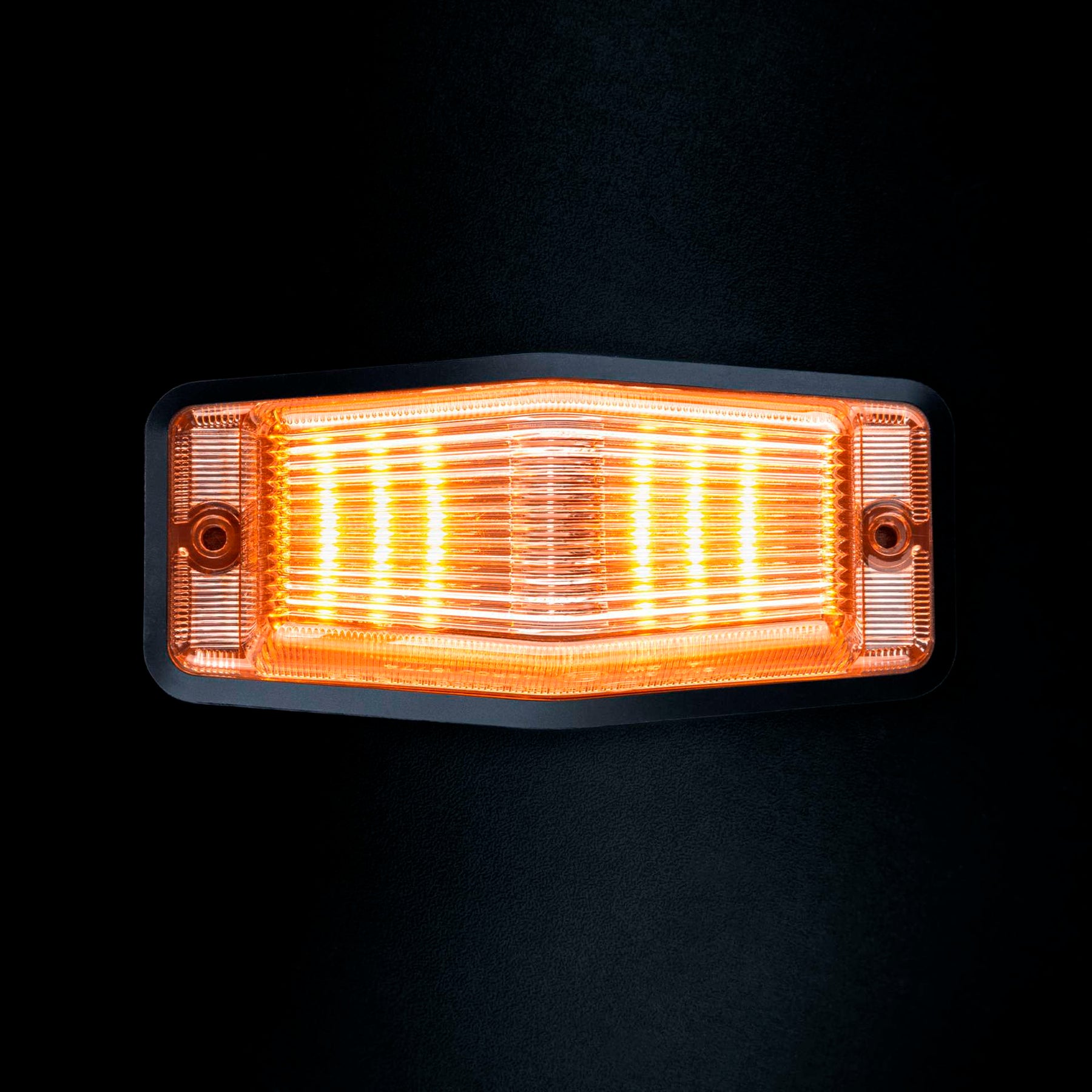

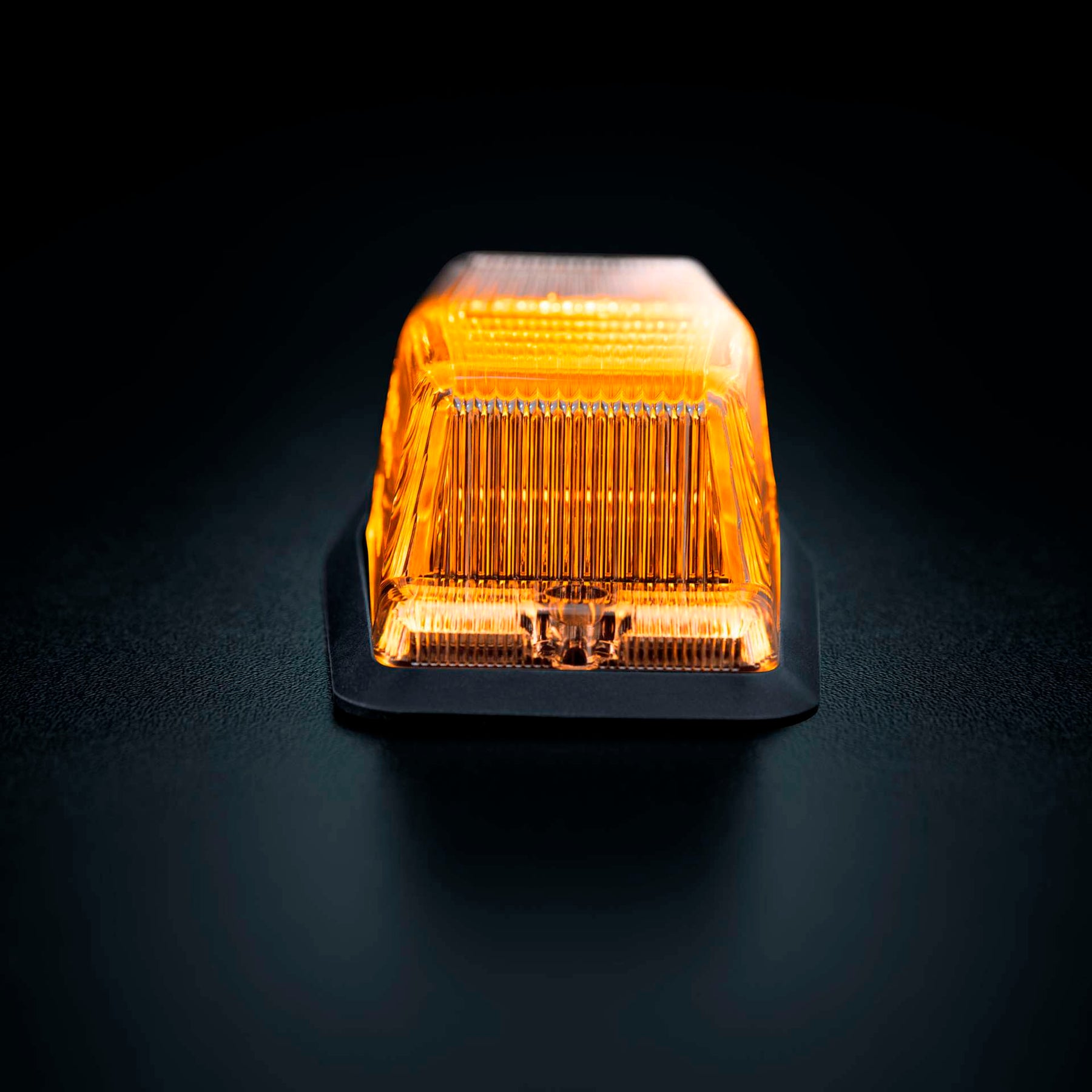

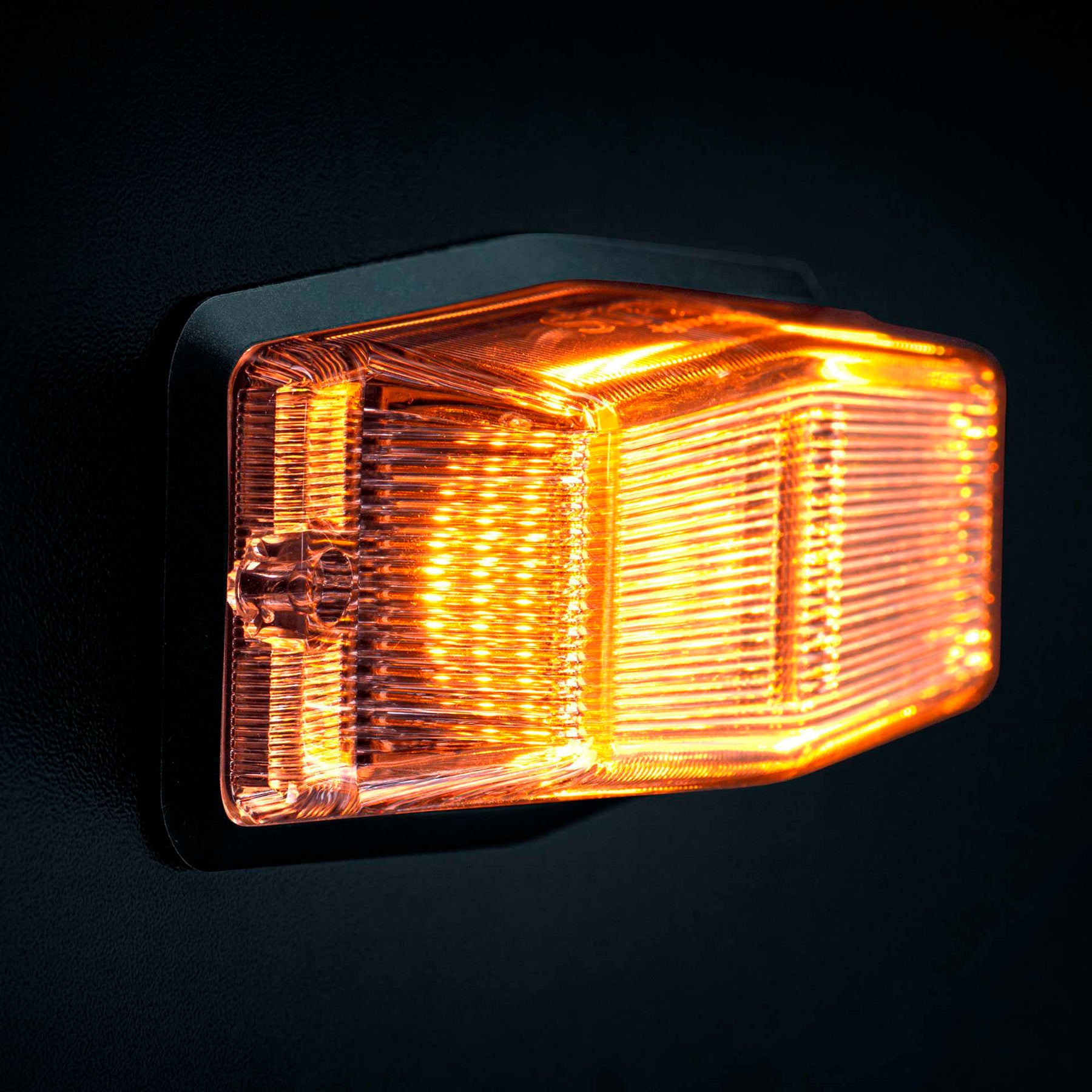

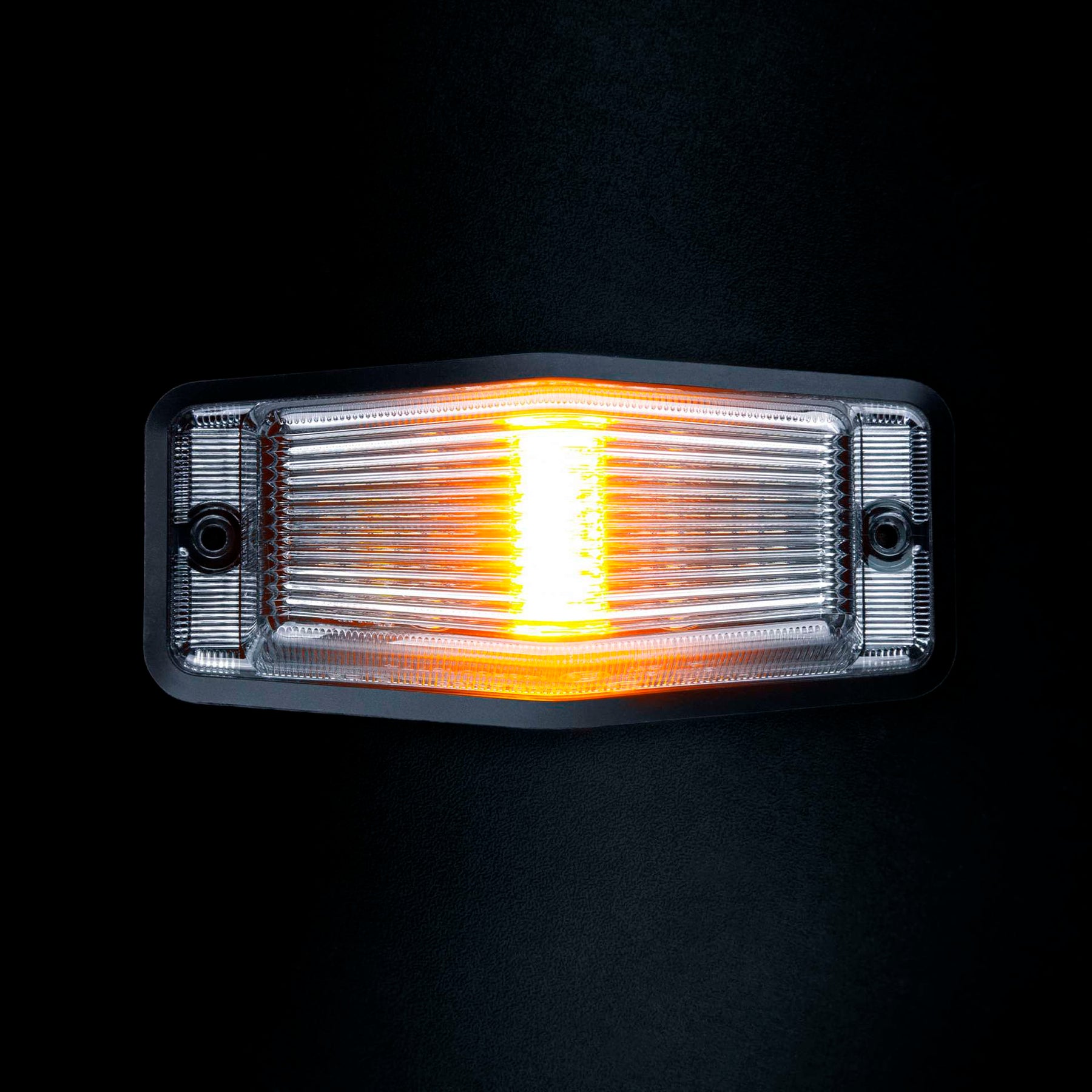

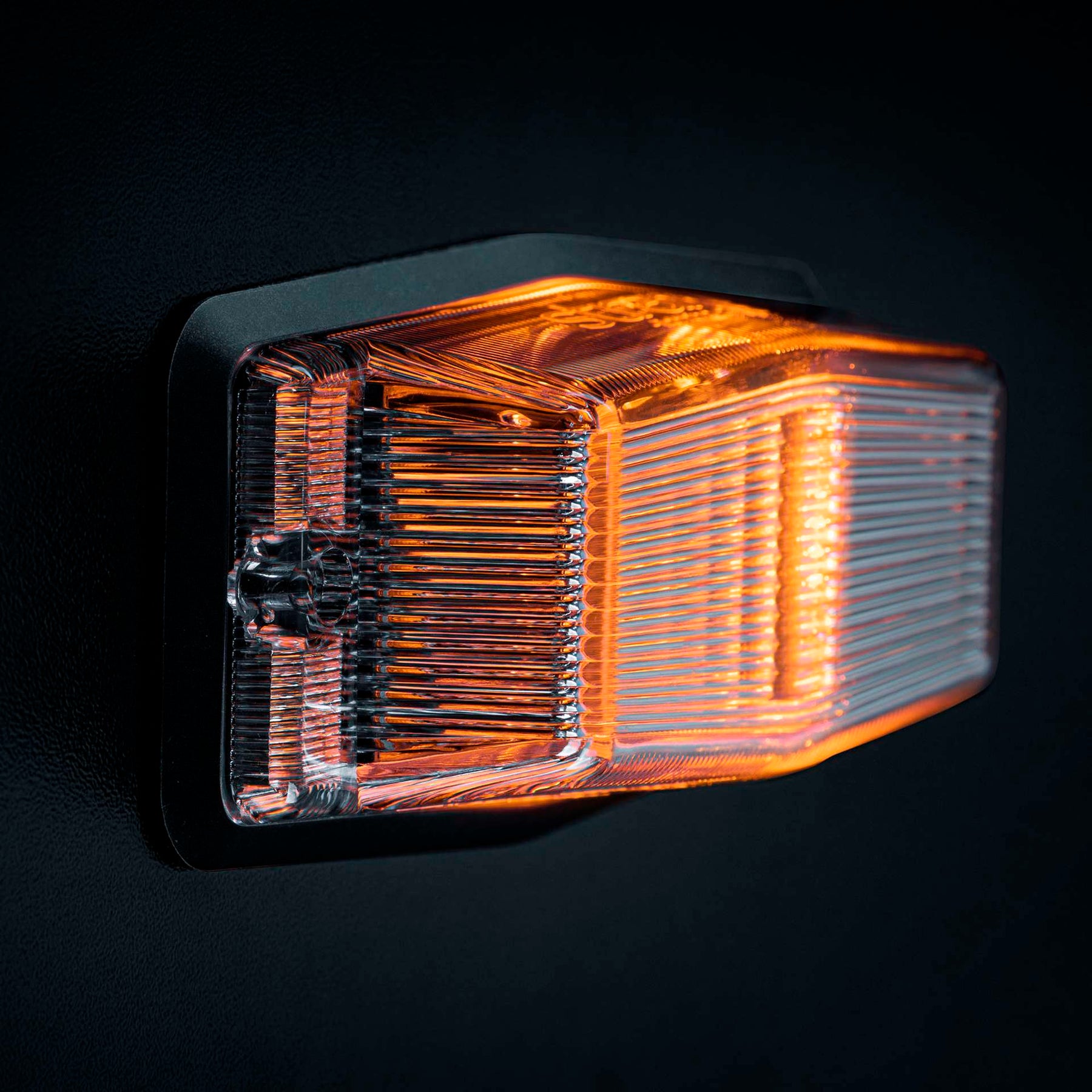

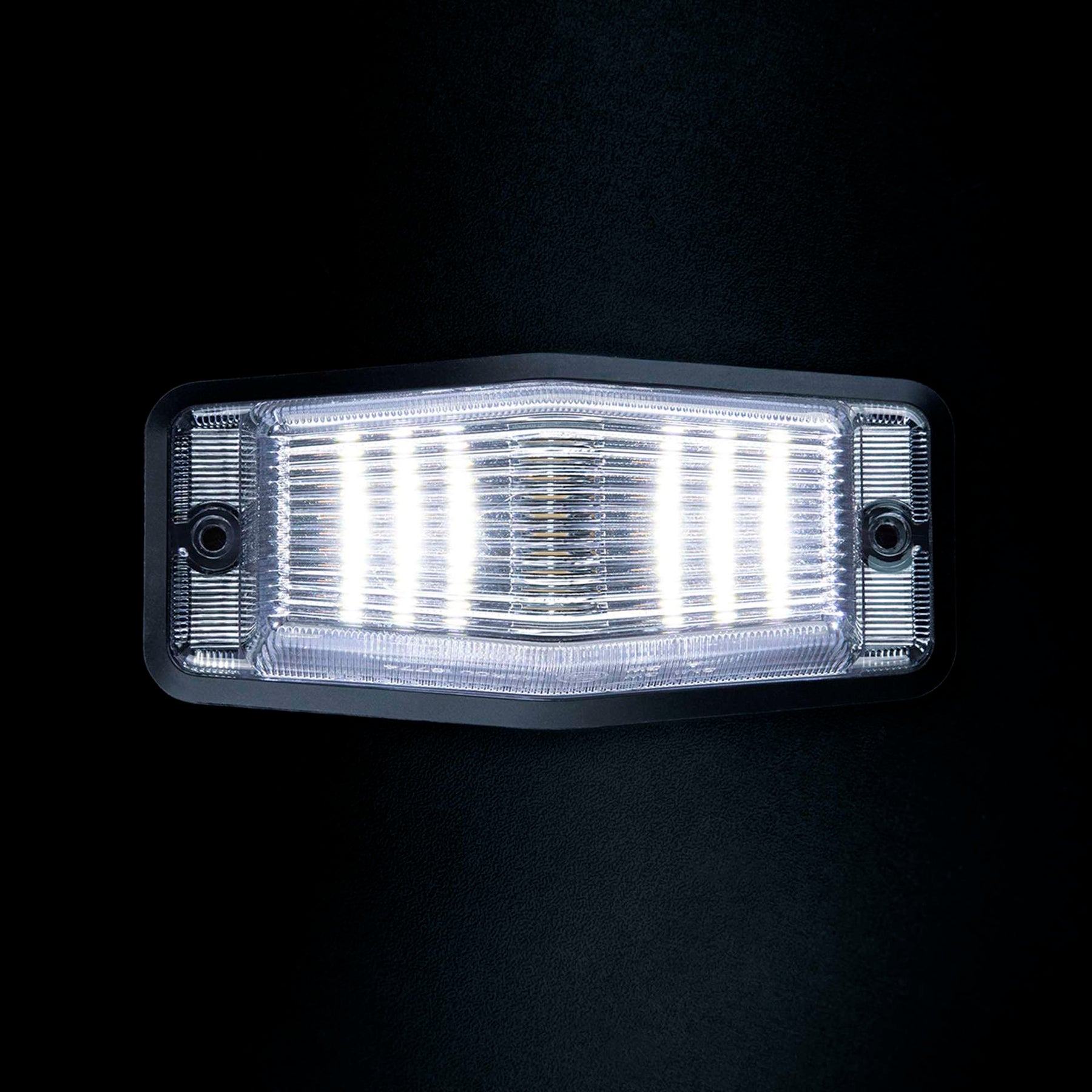

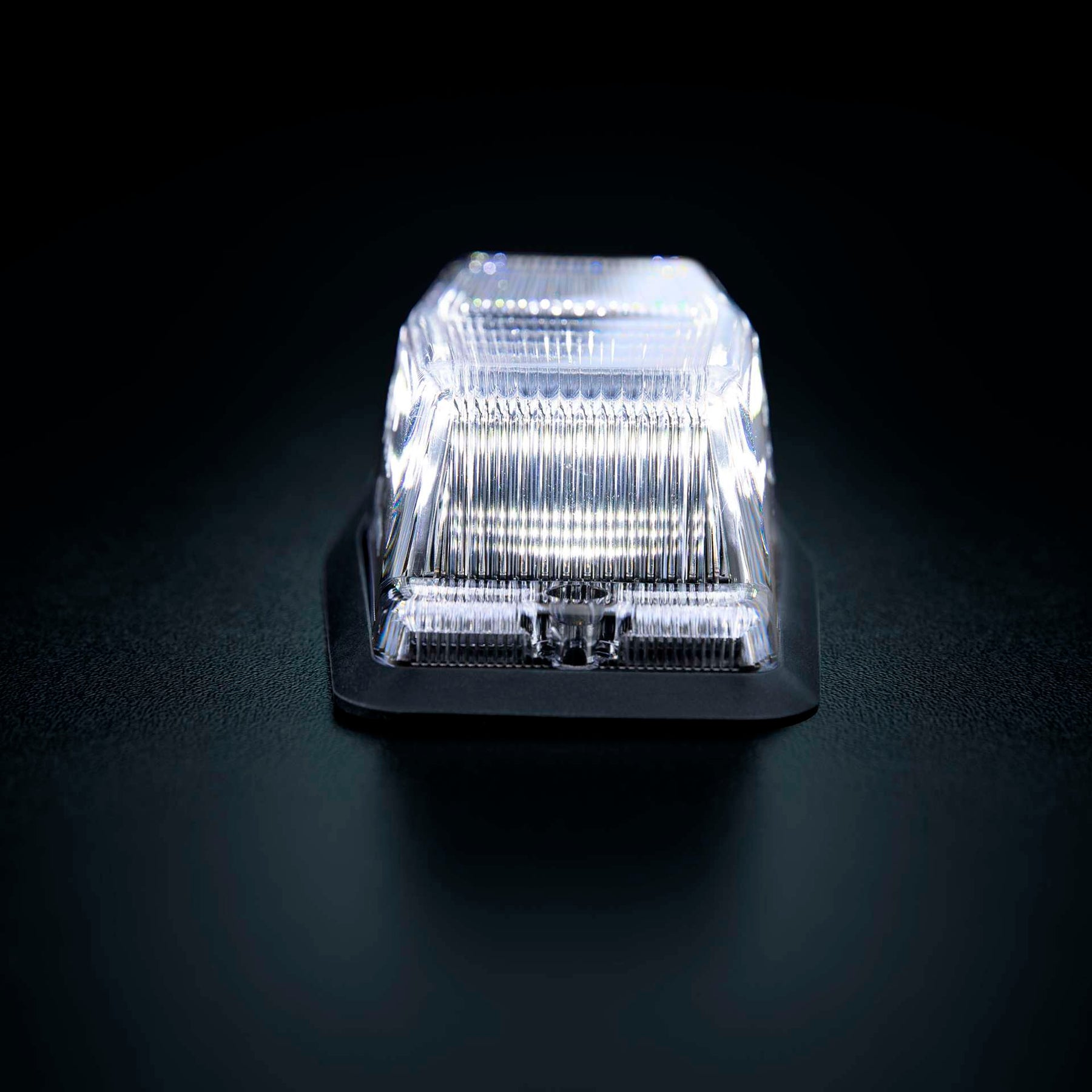

Functions: Warning light / Amber Pos. / White Pos.
Consumption specific function: White Pos. 3W / Amber Pos. 3W / Warning 2.5W
Patterns: 21
Connection: Cable
Cable length: 1000mm
Color housing: Black
Color lens: Clear
Color LED’s: White / Amber
Material housing/chassi: Polycarbonate
Material lens: Polycarbonate
Length: 125mm
Depth: 32mm
Height: 52mm
Weight: 0.096kg
CC: 109mm
IP-class: IP69K
Operating temperature: -30° – +61°C
E-approved: Yes
ECE approval: R10.06 / R148

Download Manual
