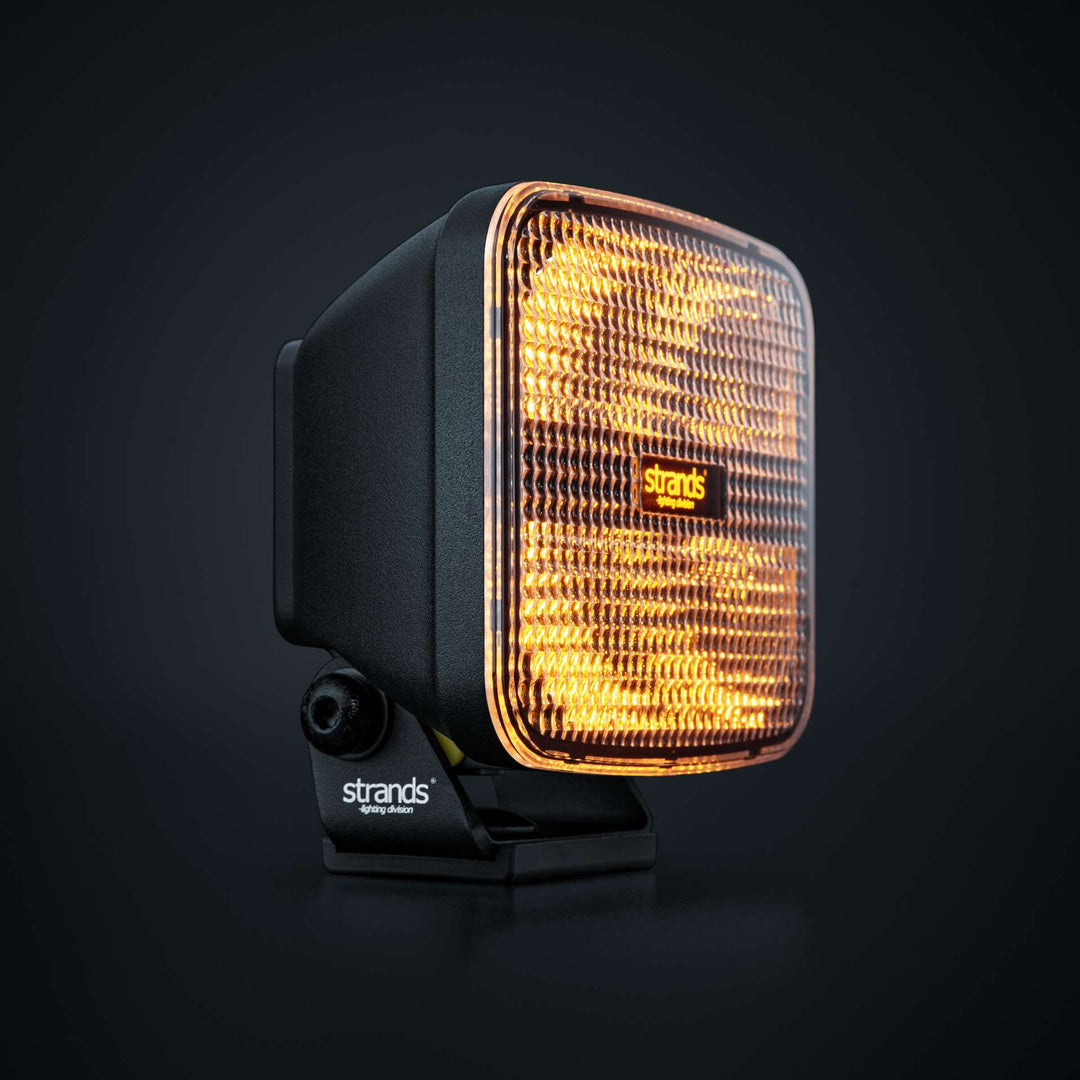

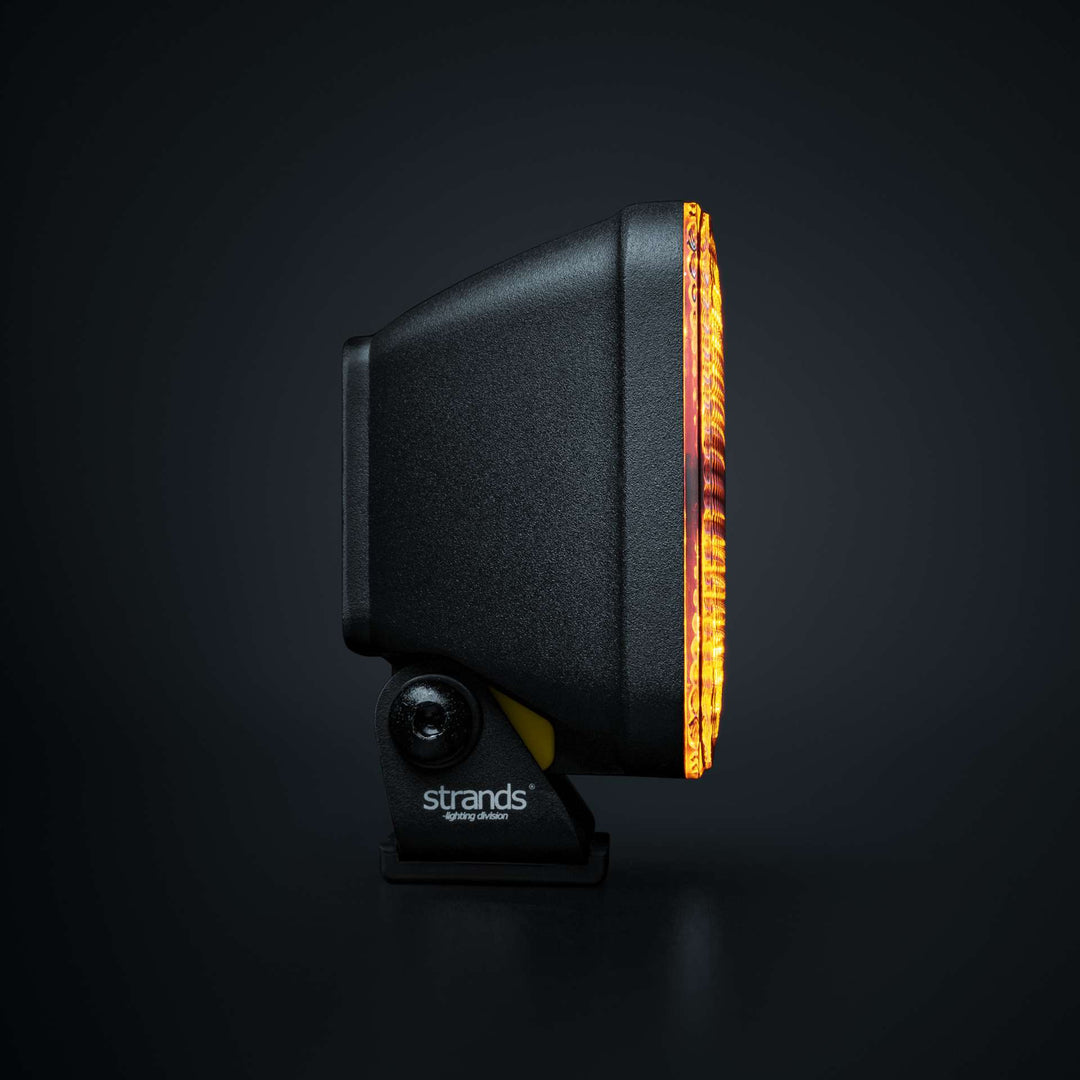

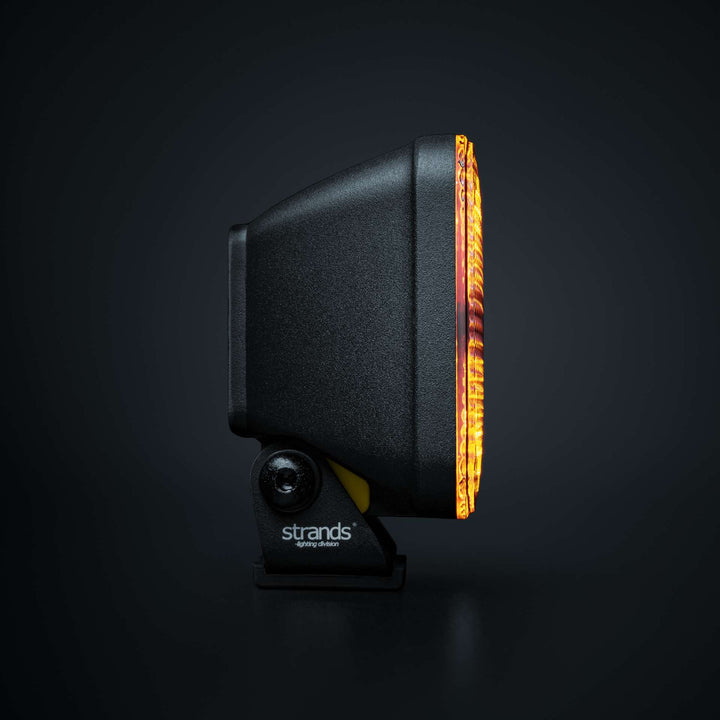

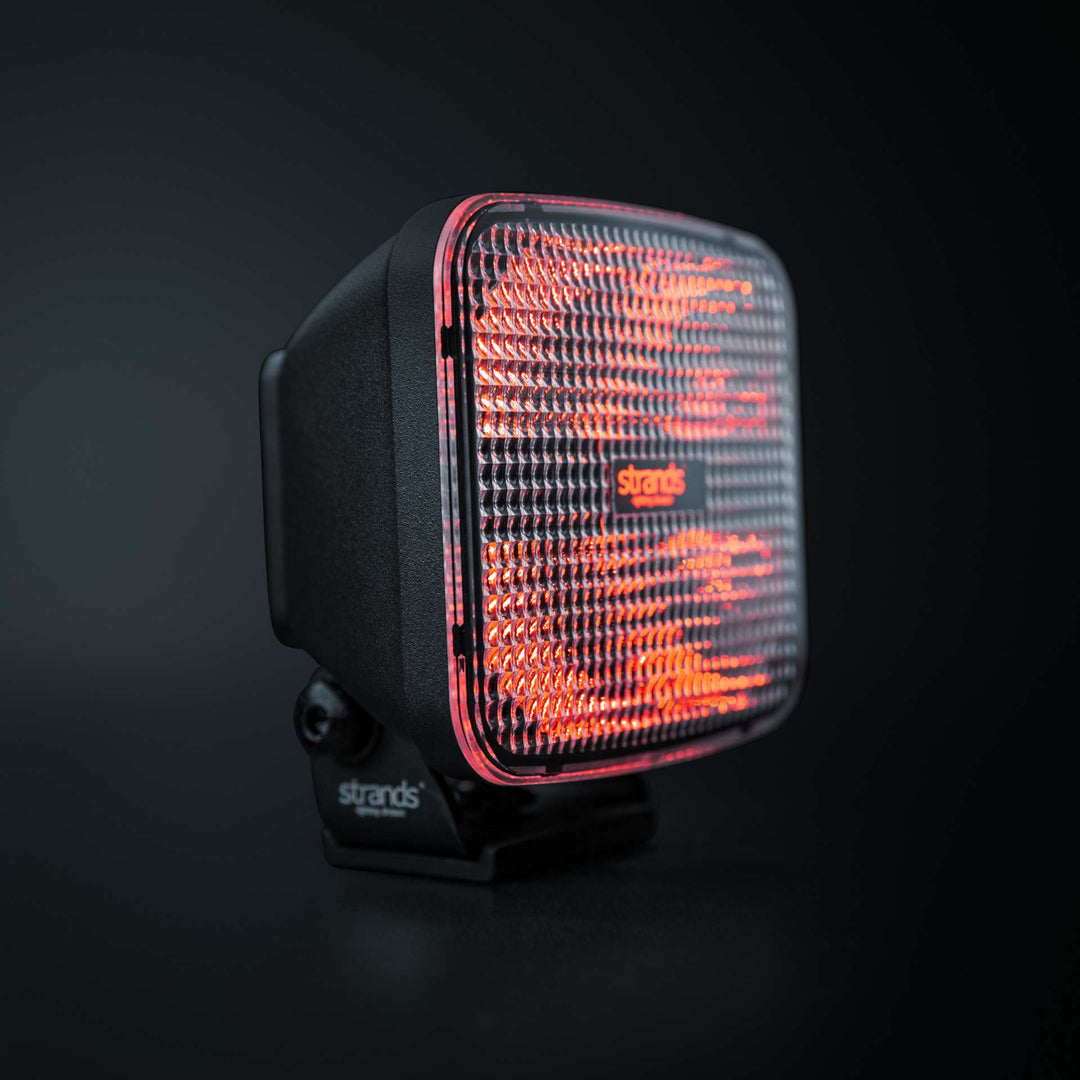

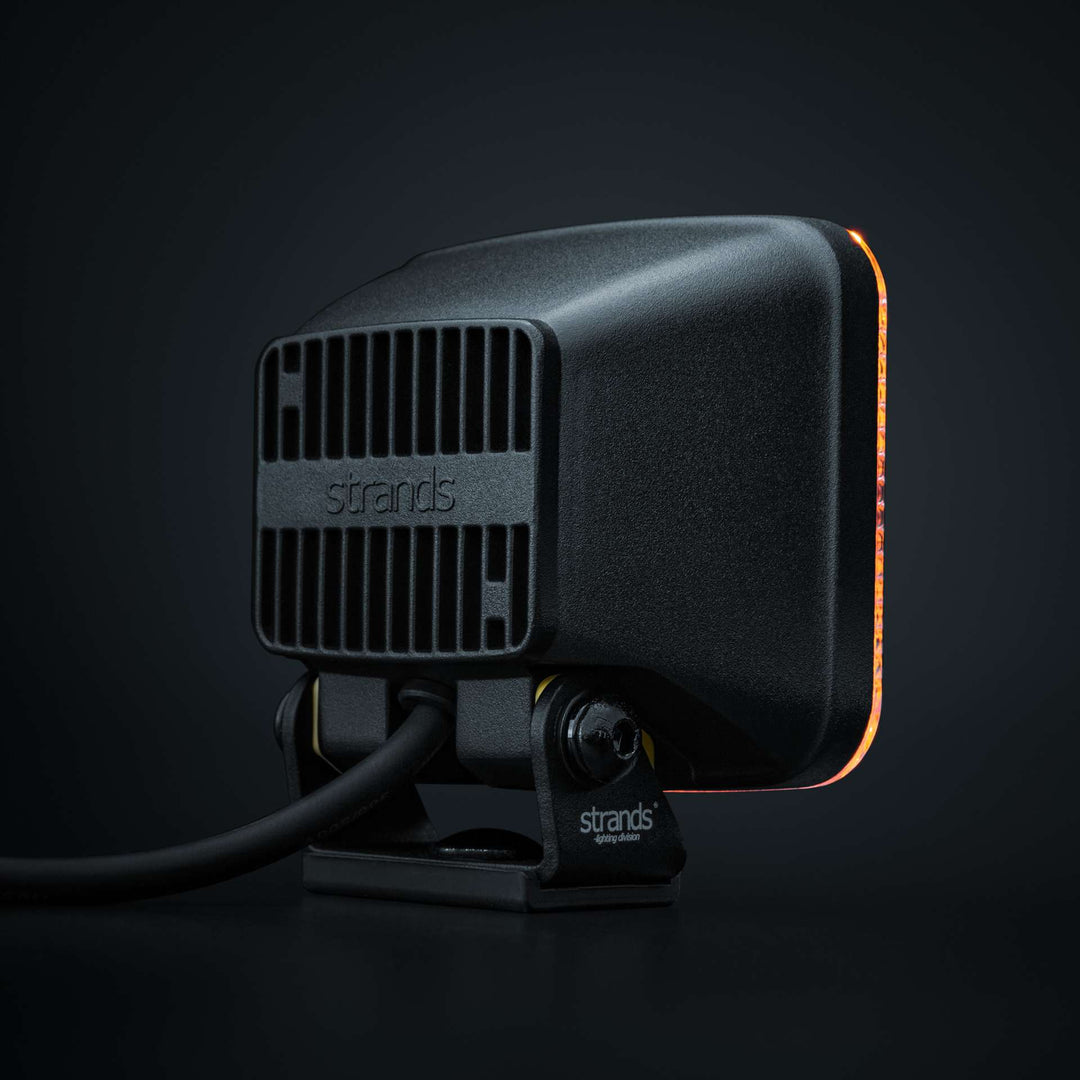

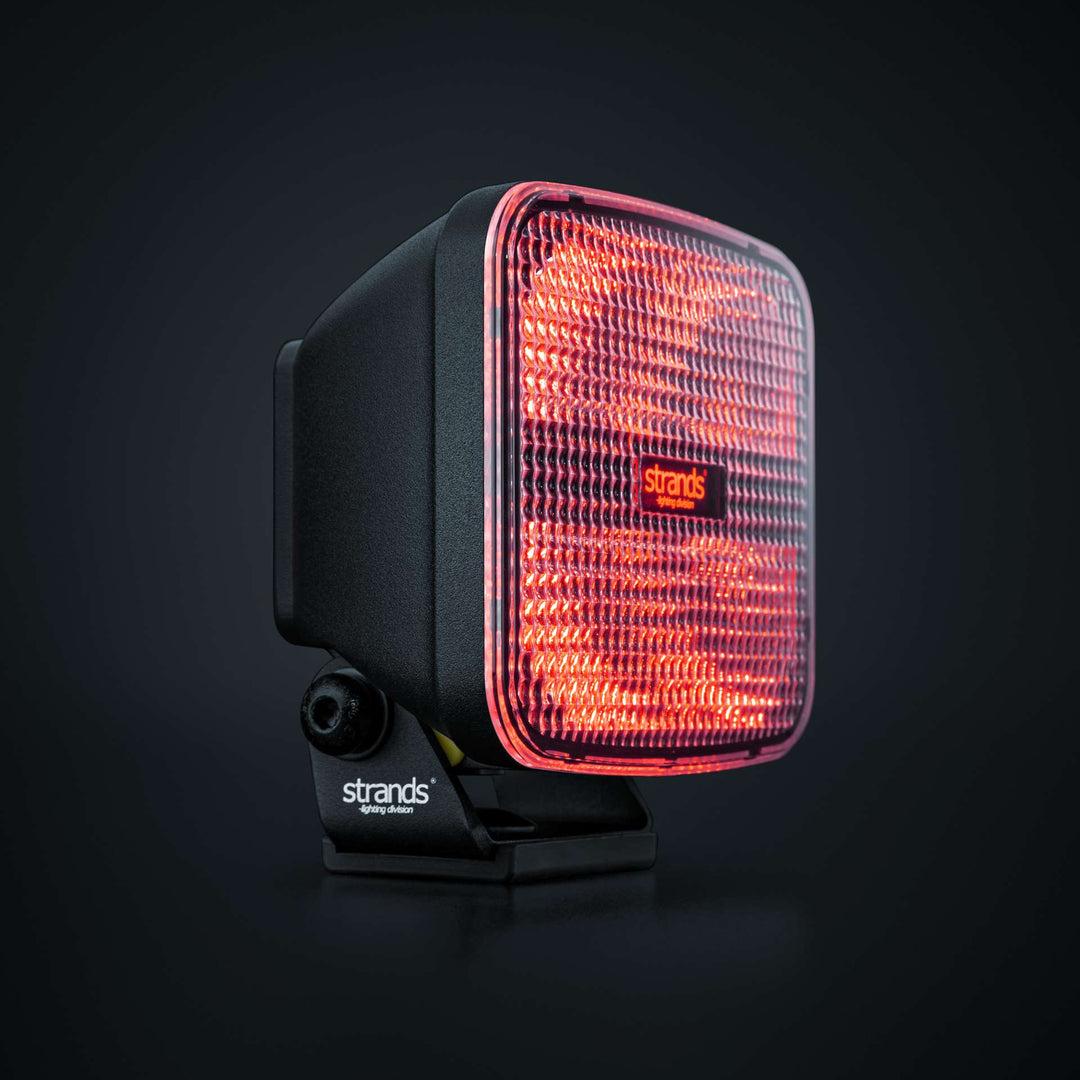

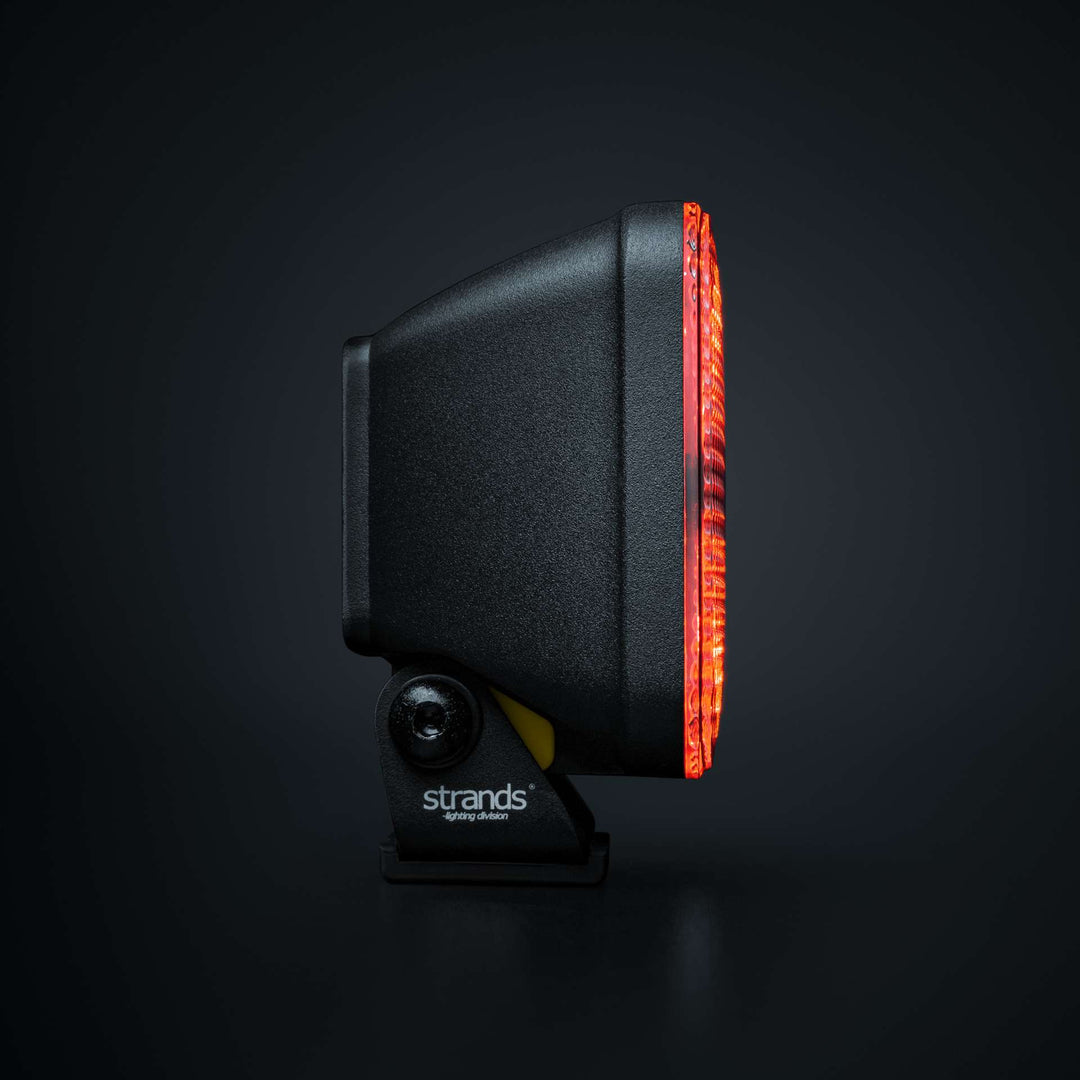

IZE LED OG Work Light Red/Amber Position

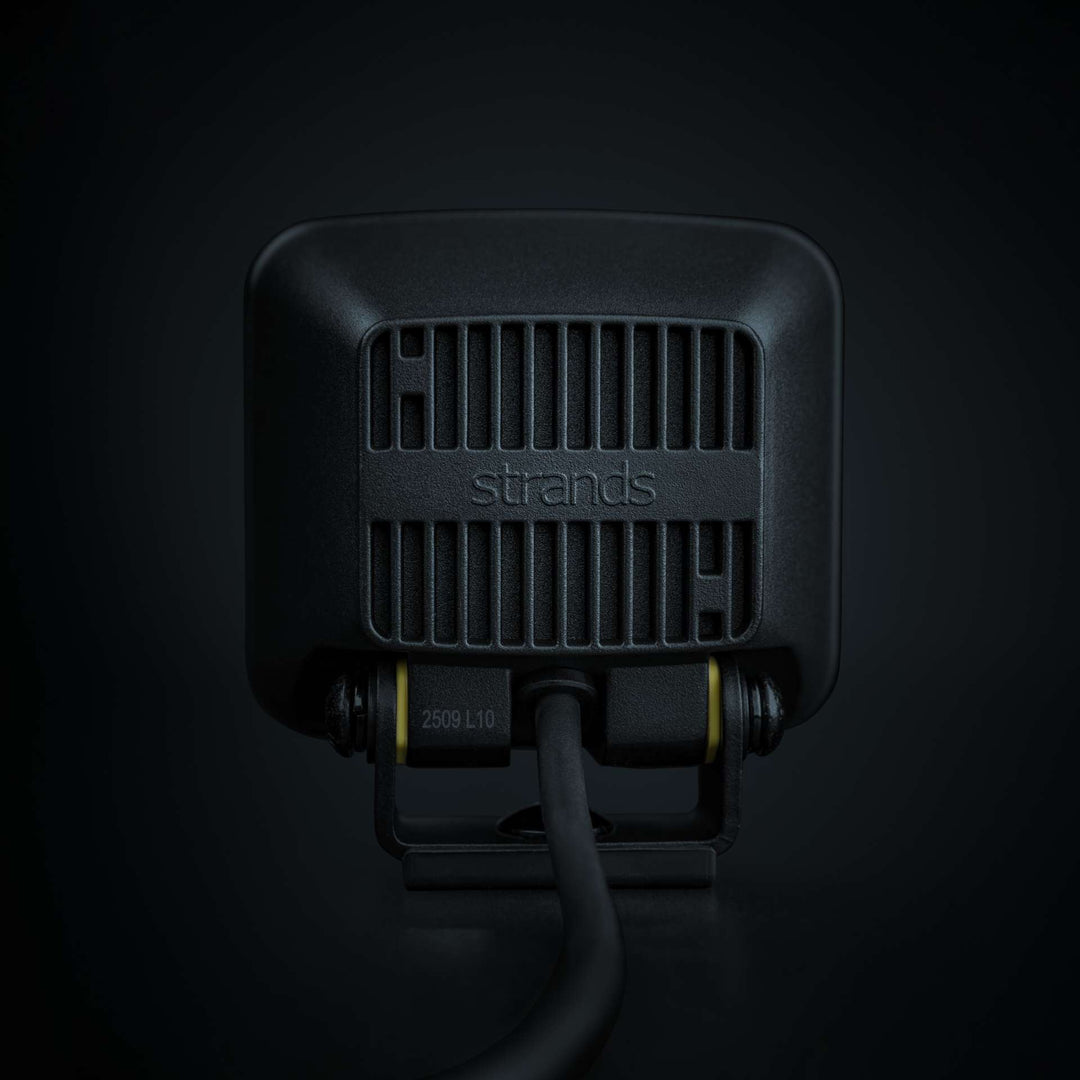

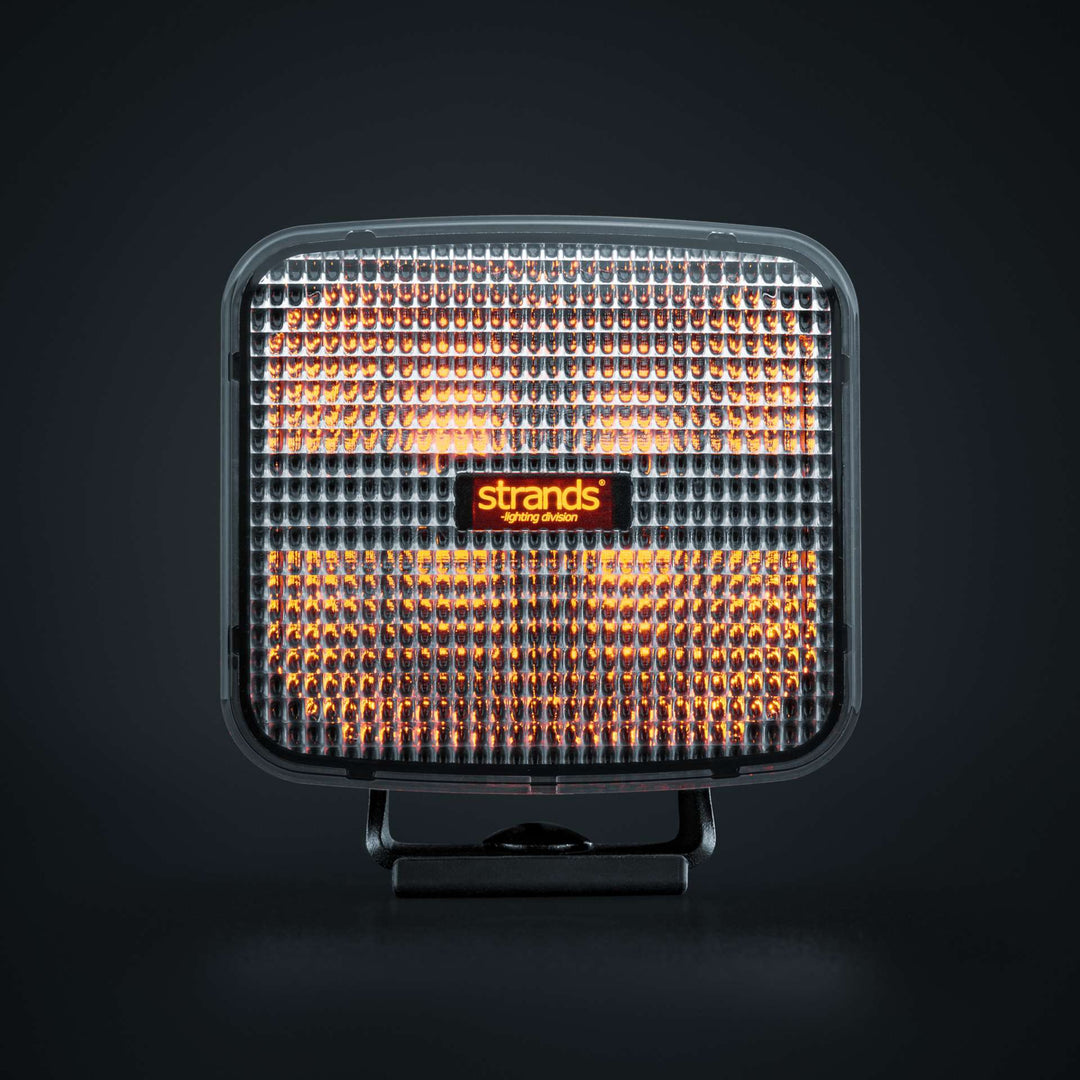

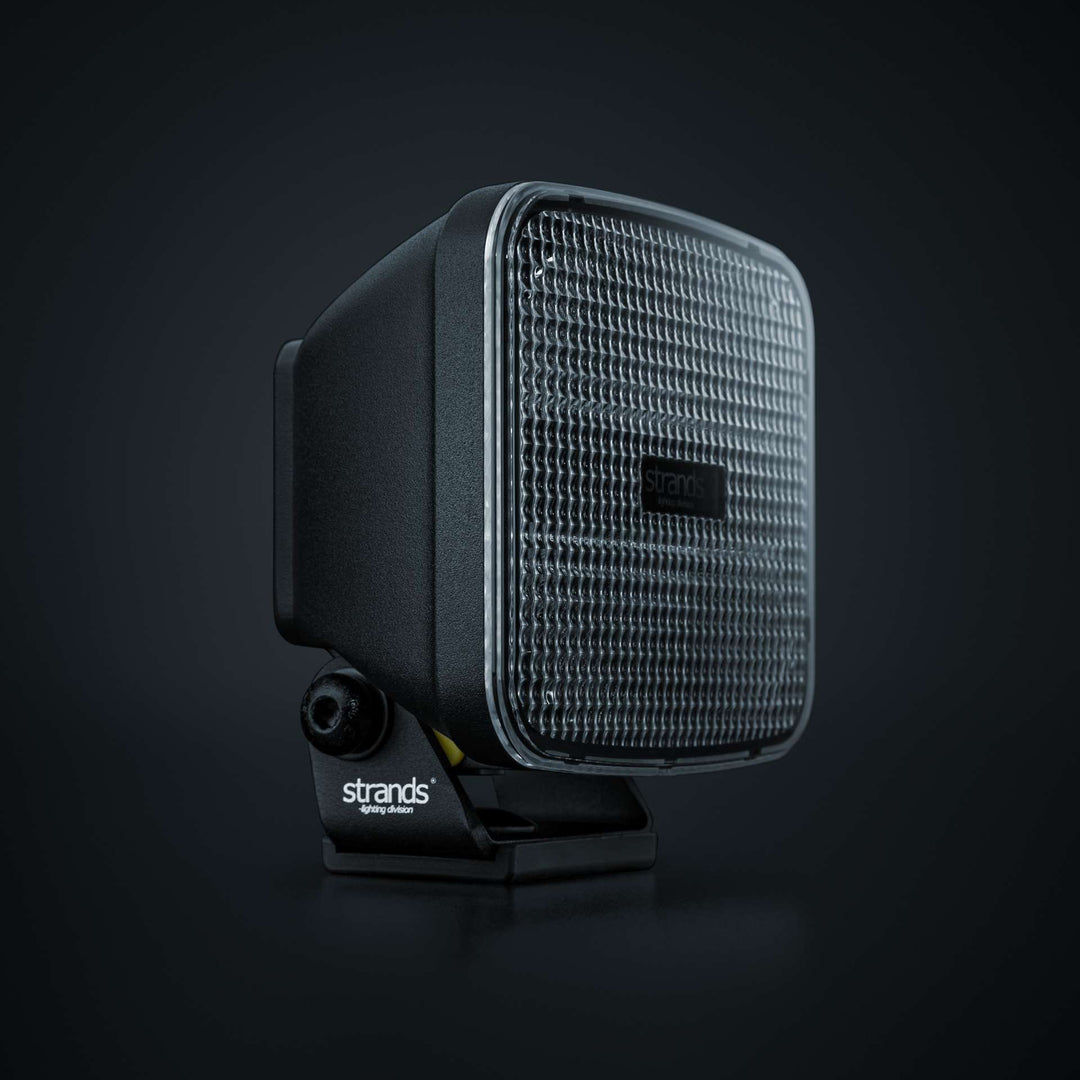

The OG 42W work light provides 3400 actual lumens of brightness for a range of 57 meters. Its 4500 K color temperature delivers a clear, bright output. The OG has a dual-color position light in red and amber. The textured lens gives a comfortable glow with a classic feel. Thanks to the IP rating of IP68/69K, it can be installed even where it’s exposed to hard use and weather. Constructed with a durable aluminum housing and PC lens, and backed by a 3-year warranty, it’s built to last. The OG measures 10 cm high without the bracket and is designed to fit all vehicles. It comes with a 1 m cable and includes everything needed for installation: bracket, M10 bolt, washer, nut, loose DT-4 parts, and rubber pad. For a more discreet look, the OG work light is also available without position lights (Part No. 906000).

Unit: PCS
Voltage (DC): 10–36V DC
Theoretical effect: 45W
Consumption: 42W
Functions: Work light / Amber Pos. / Red Pos.
Consumption specific function: Red Pos. 0.5W / Amber Pos. 0.5W / Work 42W
Theoretical lumen: 3900lm
Actual lumen: 3400lm

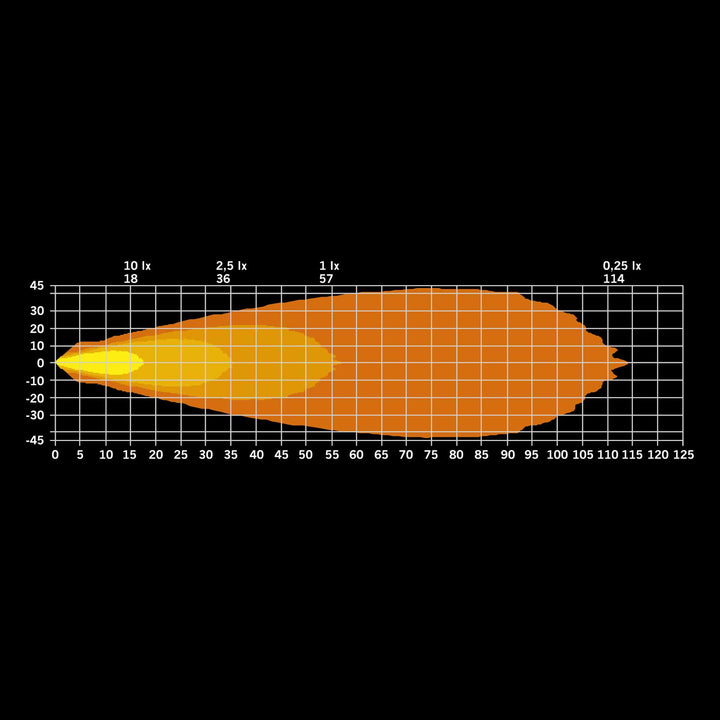

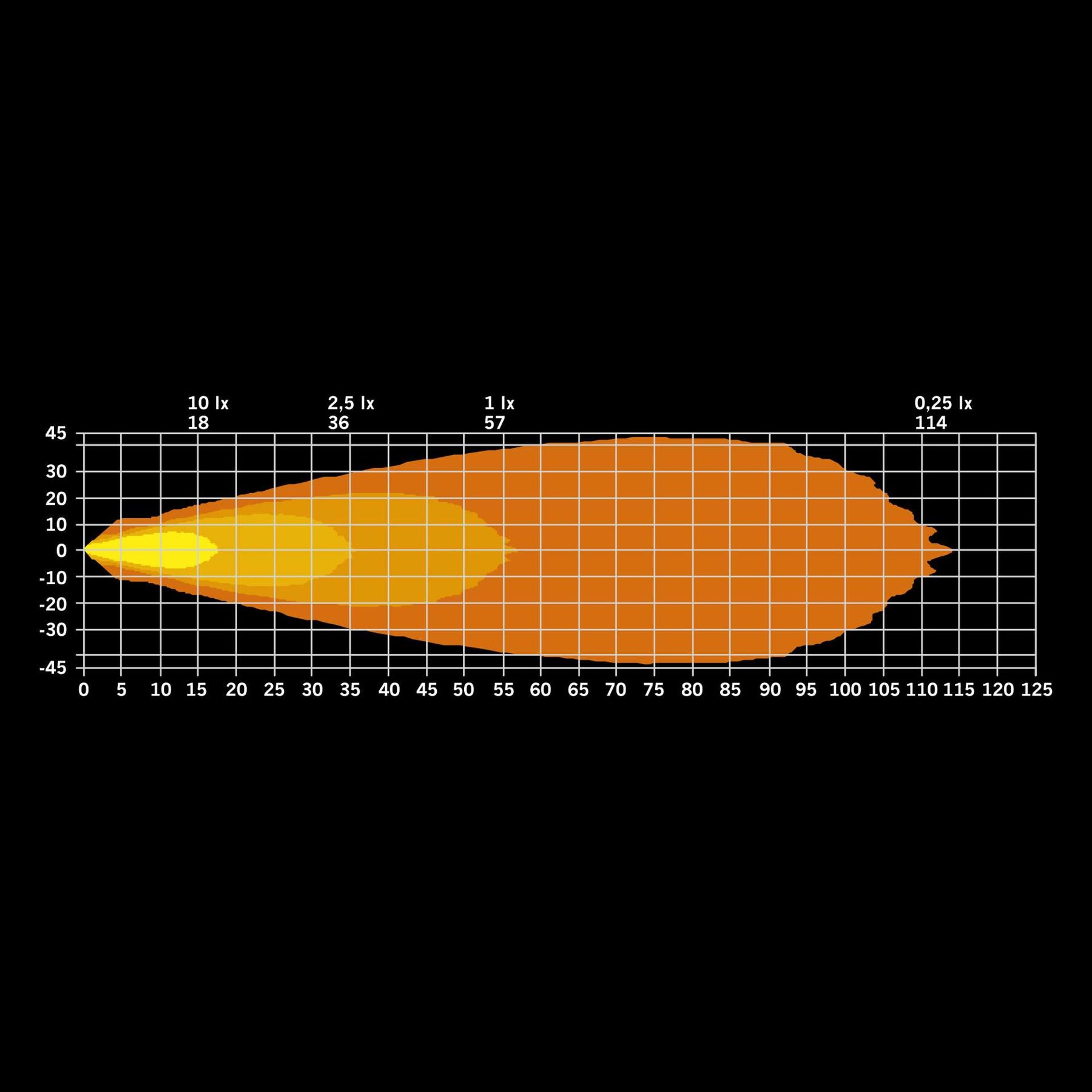

1 lux @: 57m
Color temperature: 4500K
Beam pattern: Wide beam
Beam angle: 86°
Connection: Cable (with loose DT-4 parts)
Cable length: 1000mm
Color housing: Black
Color lens: Clear
Color LED’s: White / Red / Amber
Material bracket: Stainless Steel
Material housing/chassi: Aluminium
Material lens: Polycarbonate

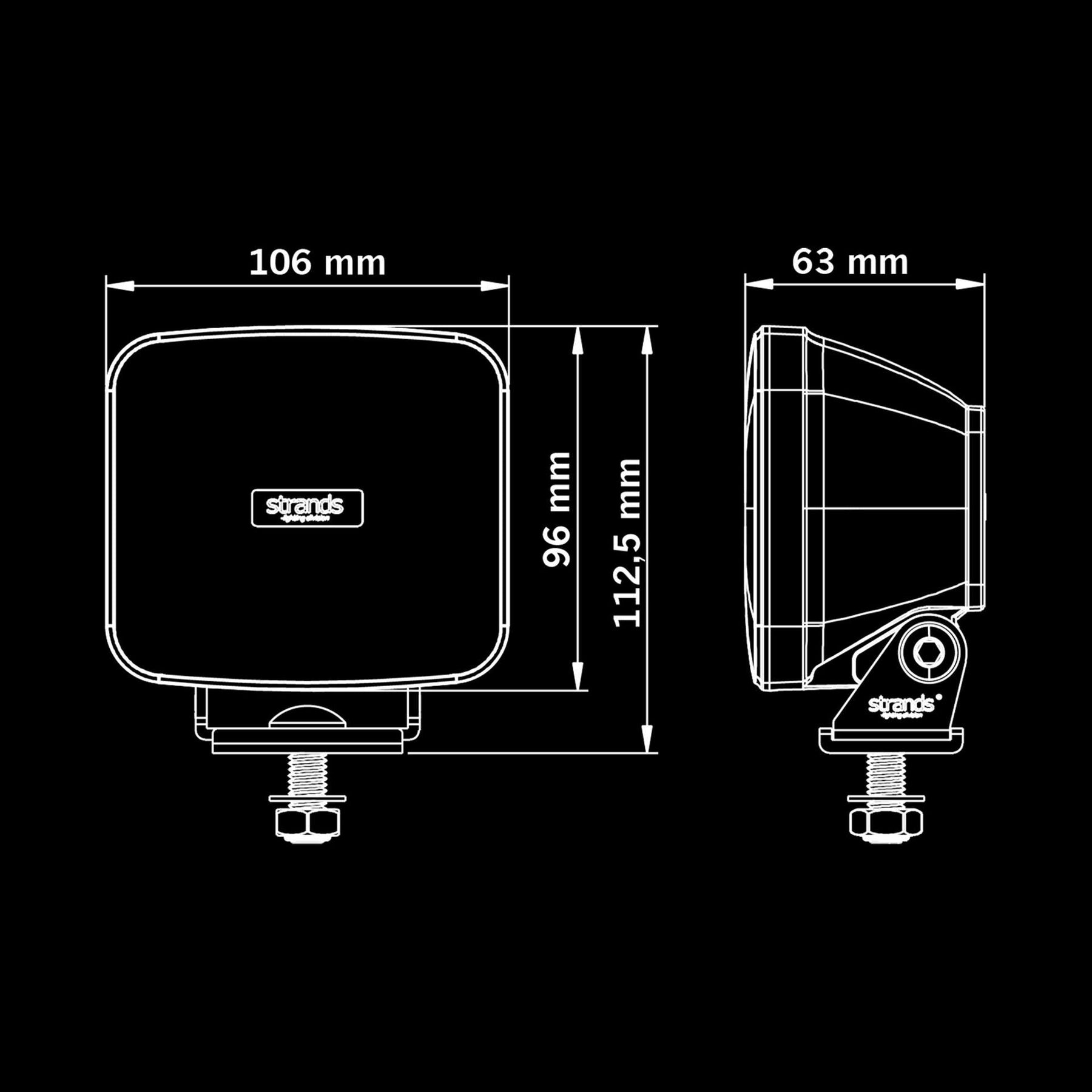

Length: 106mm
Depth: 63mm
Height: 96mm
Height including bracket: 112.5mm
Weight: 0.65kg
IP-class: IP68/69K
Operating temperature: -40° – +60°C
E-approved: No
ECE approval: —
