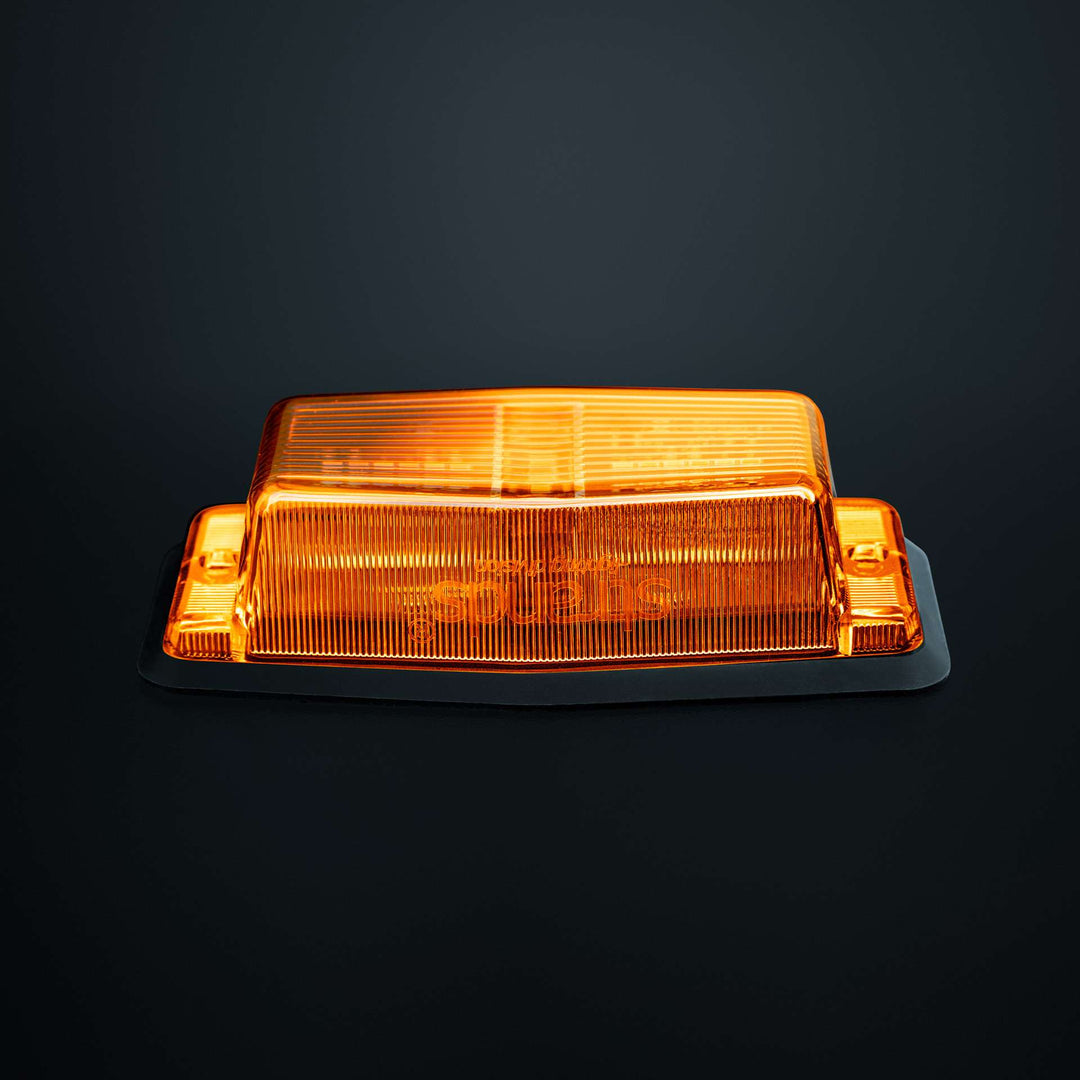

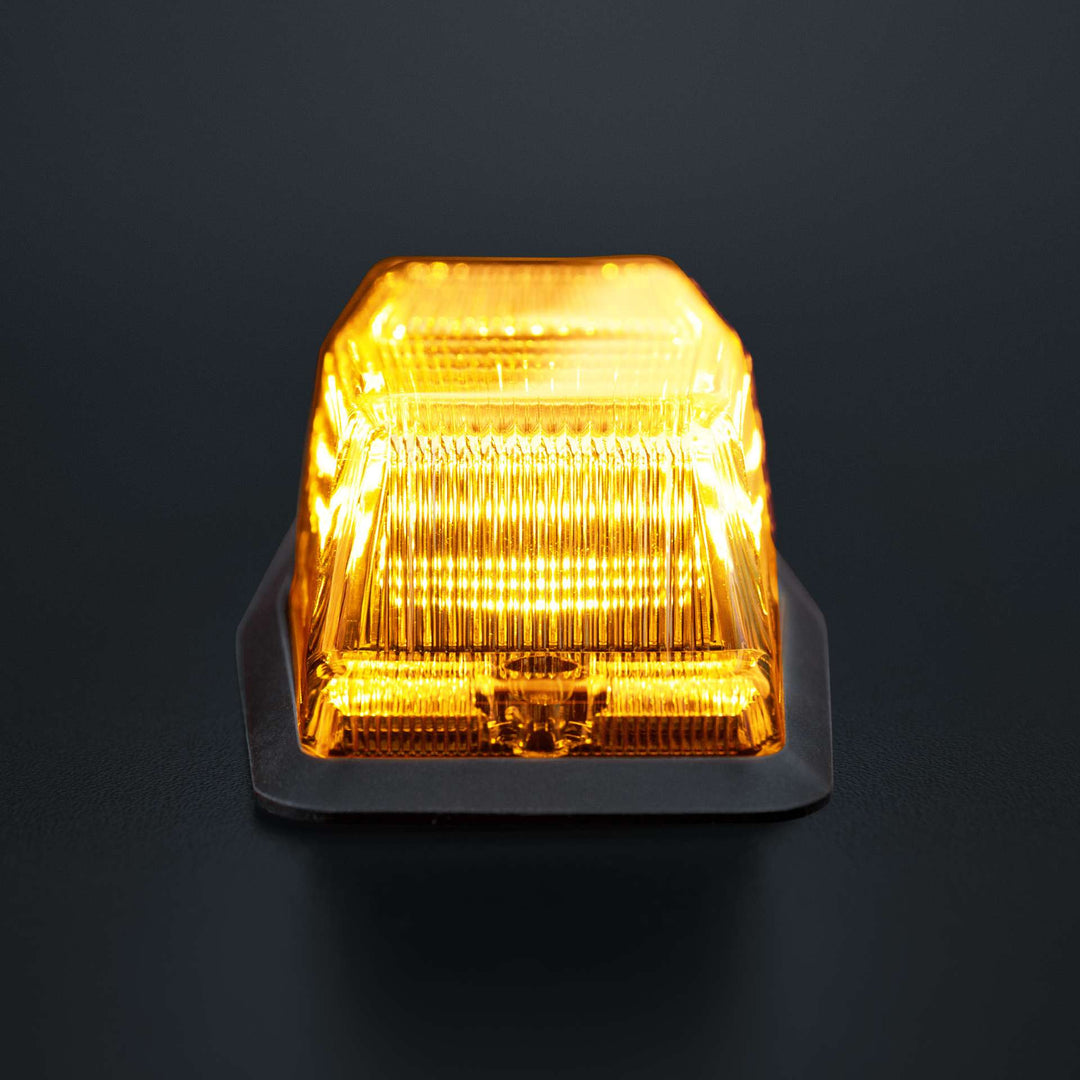

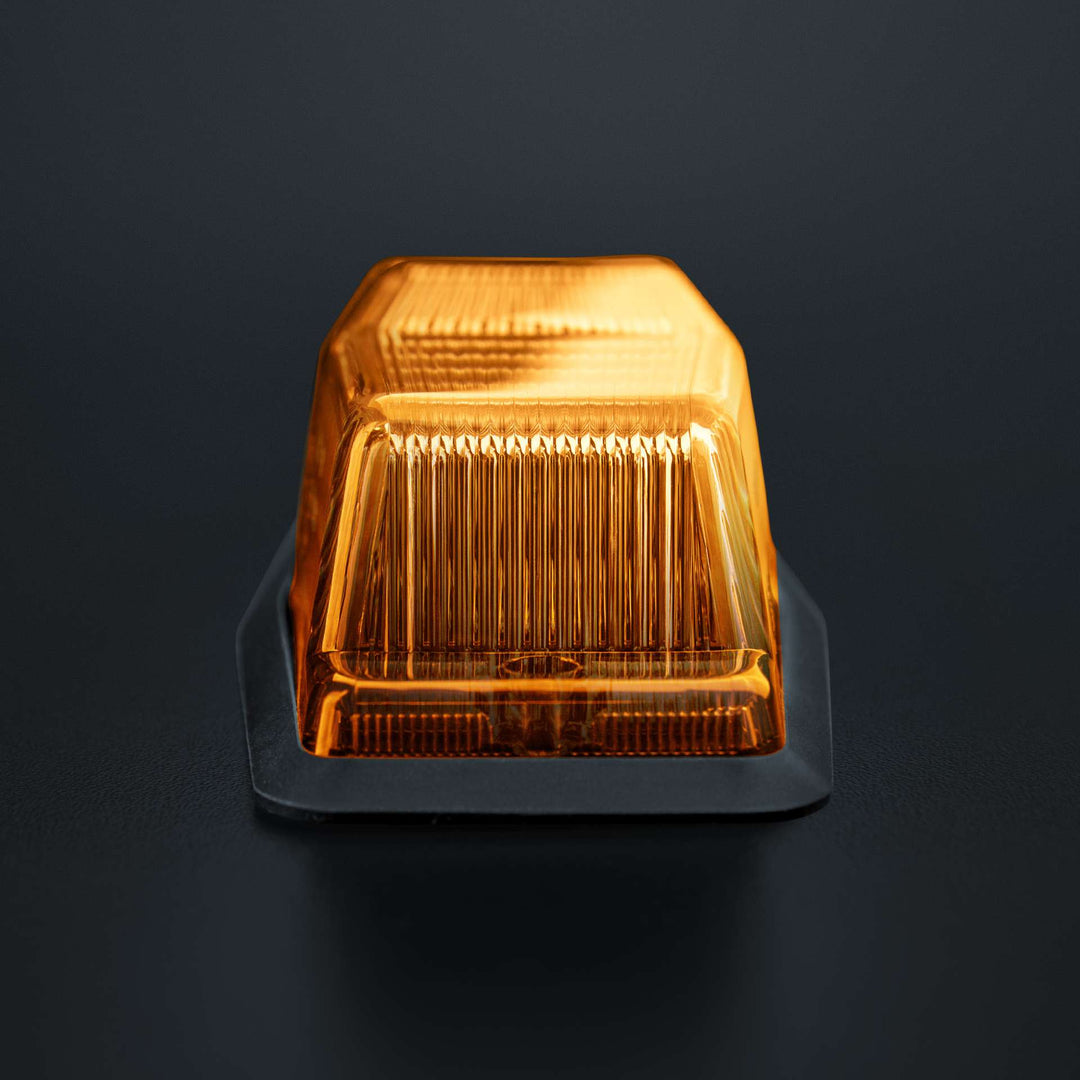

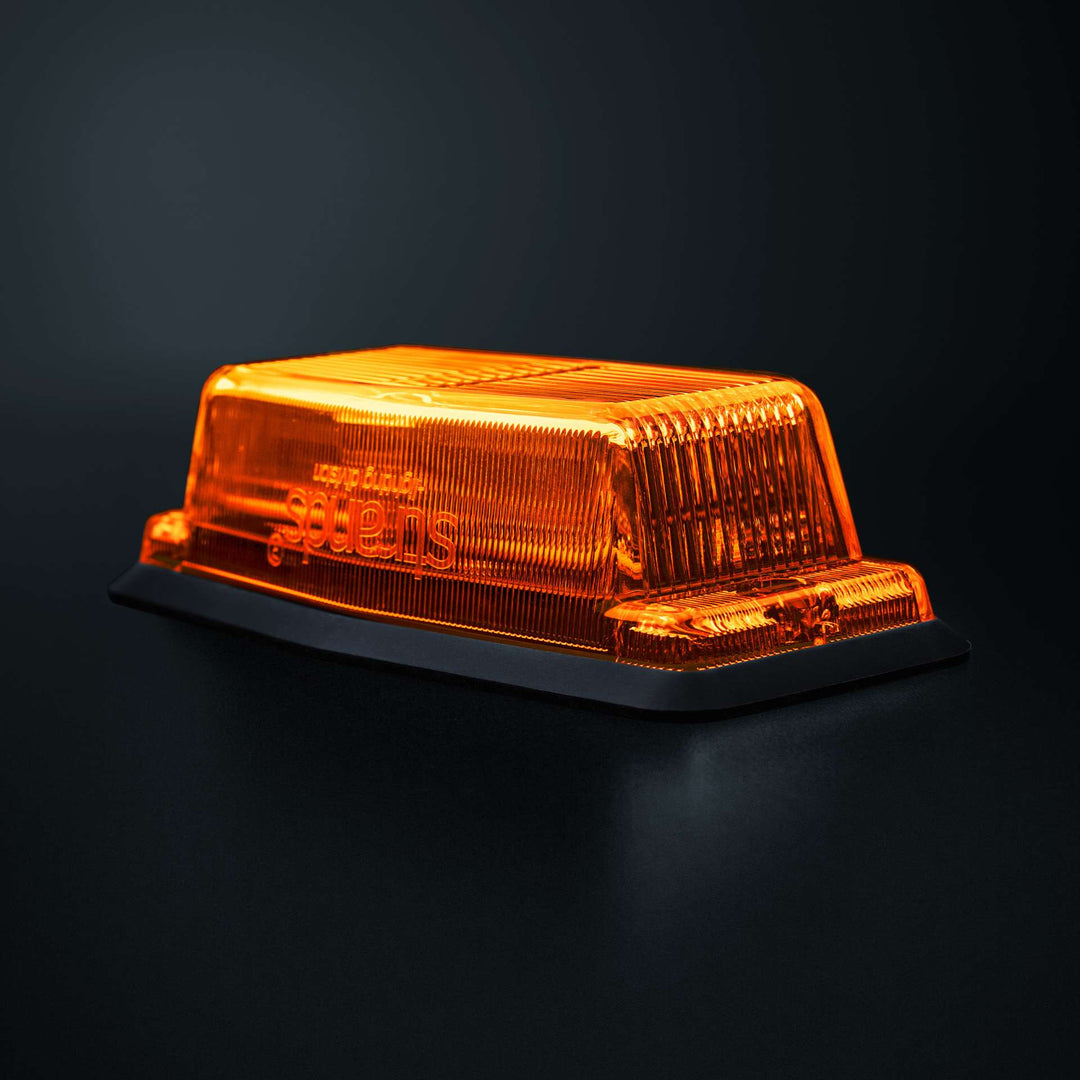

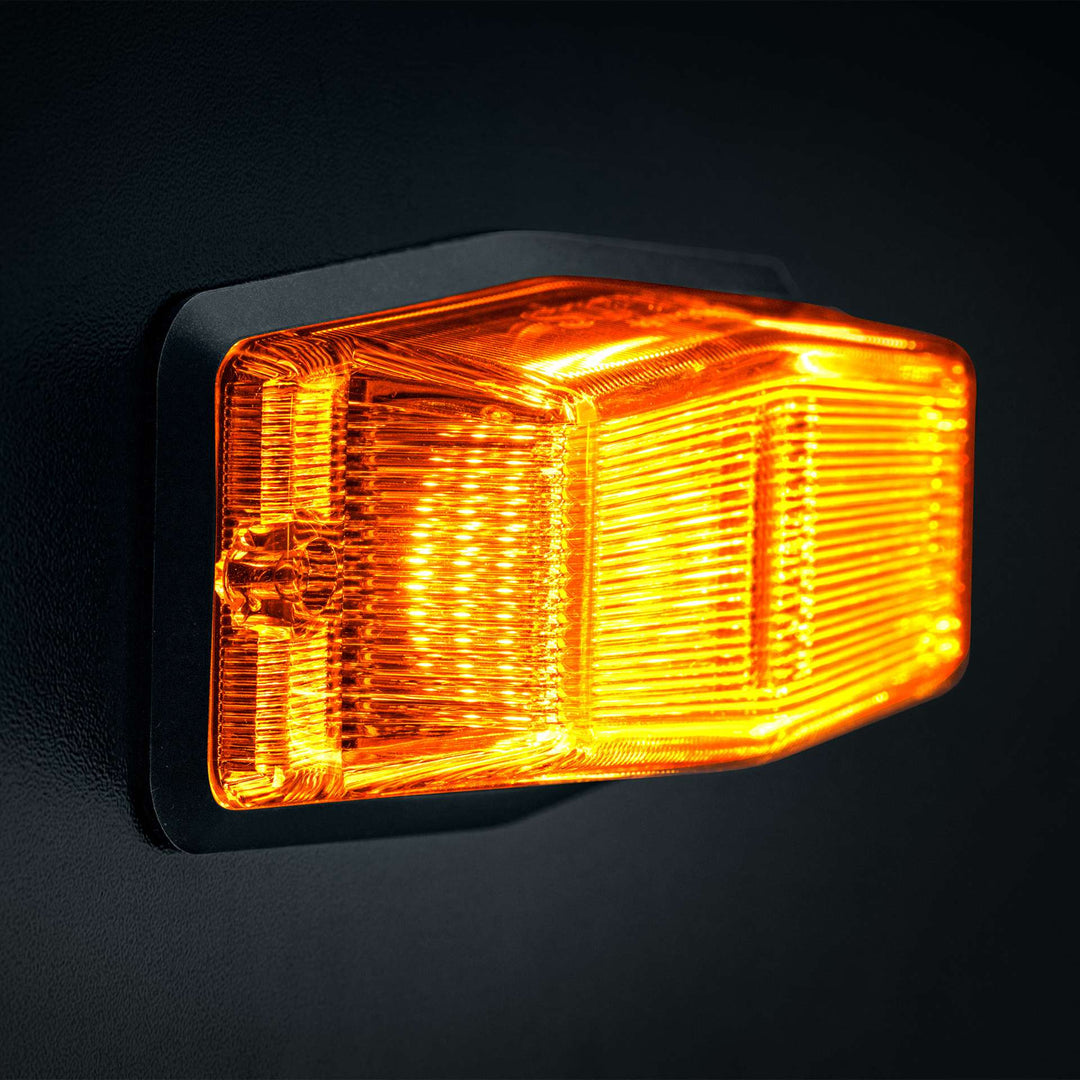

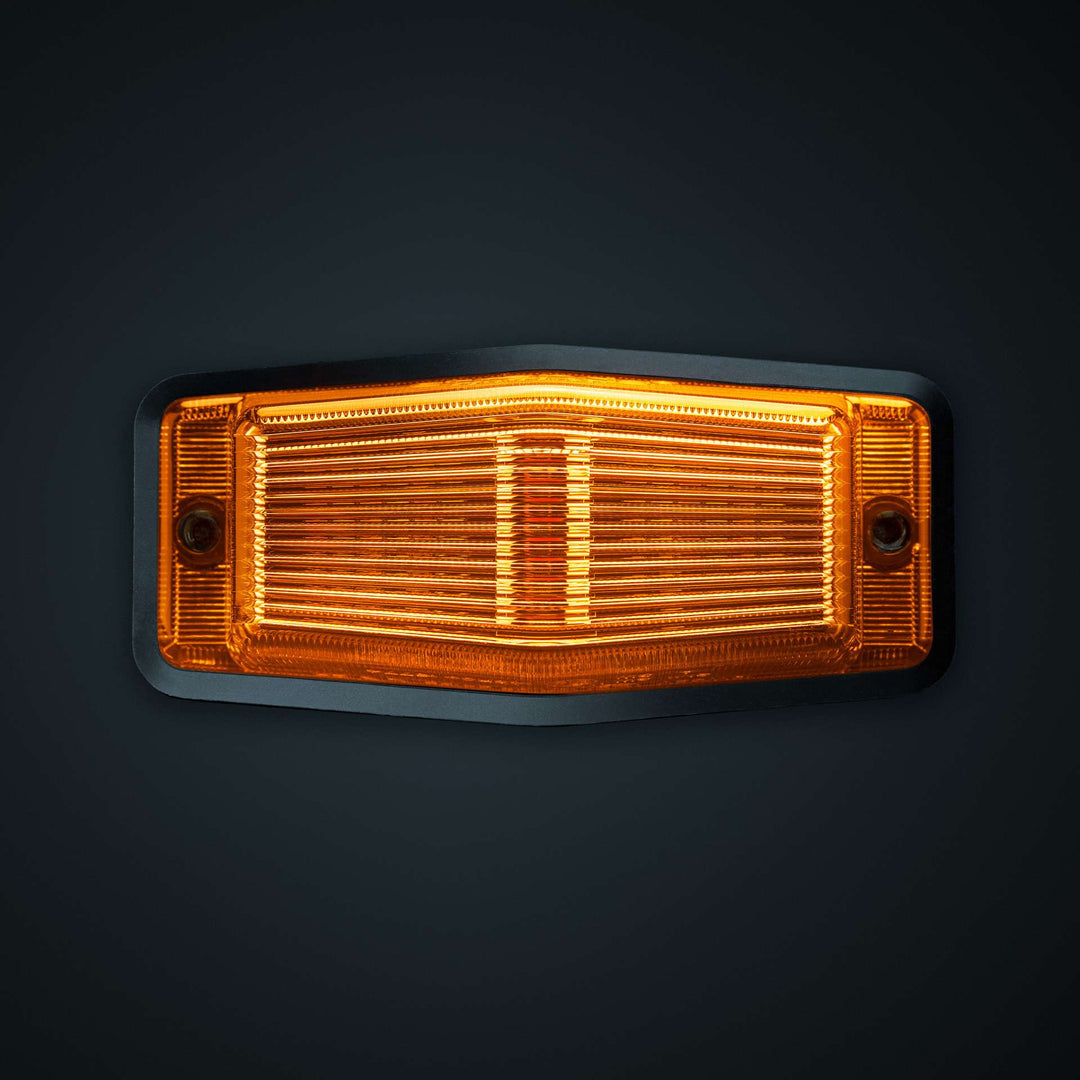

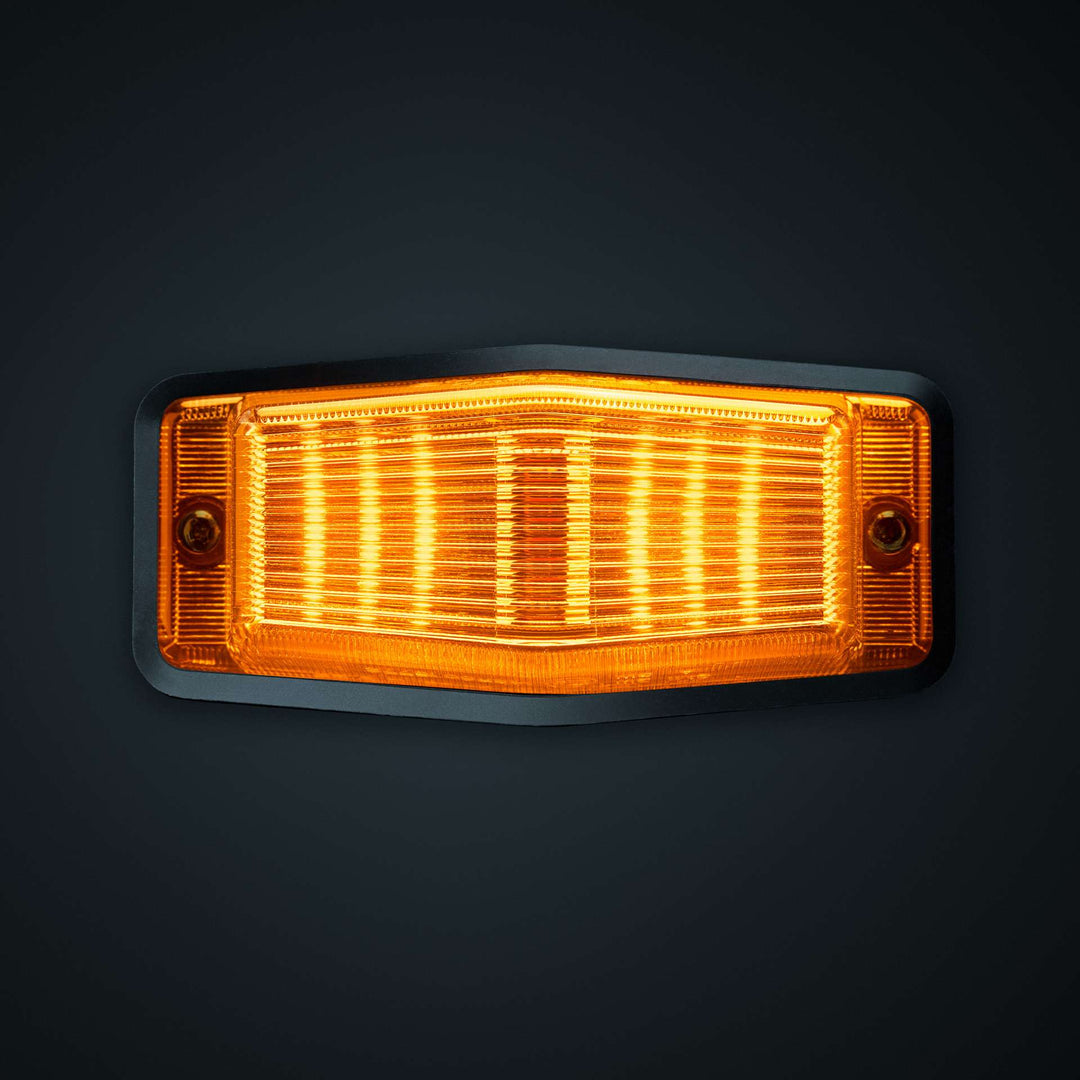

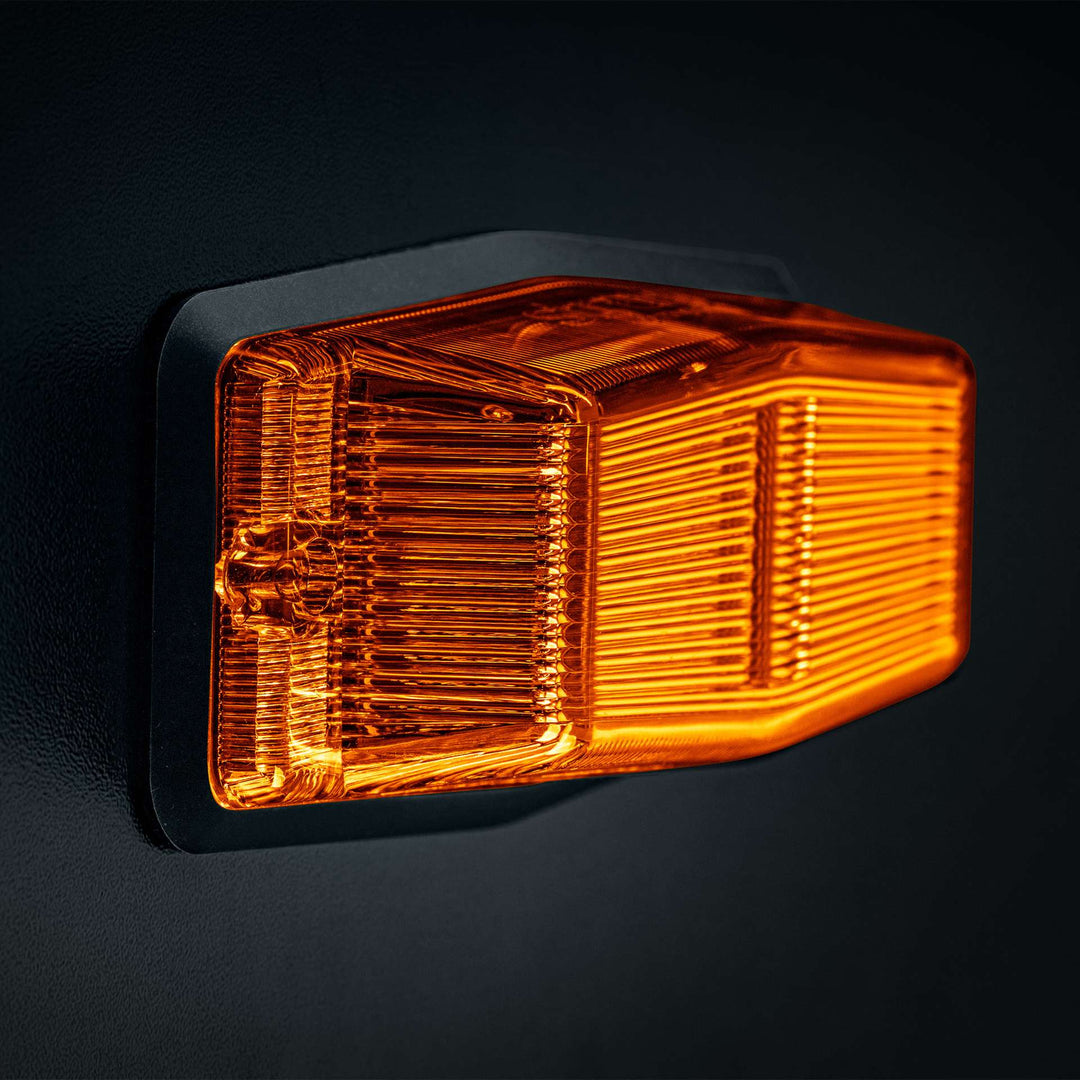

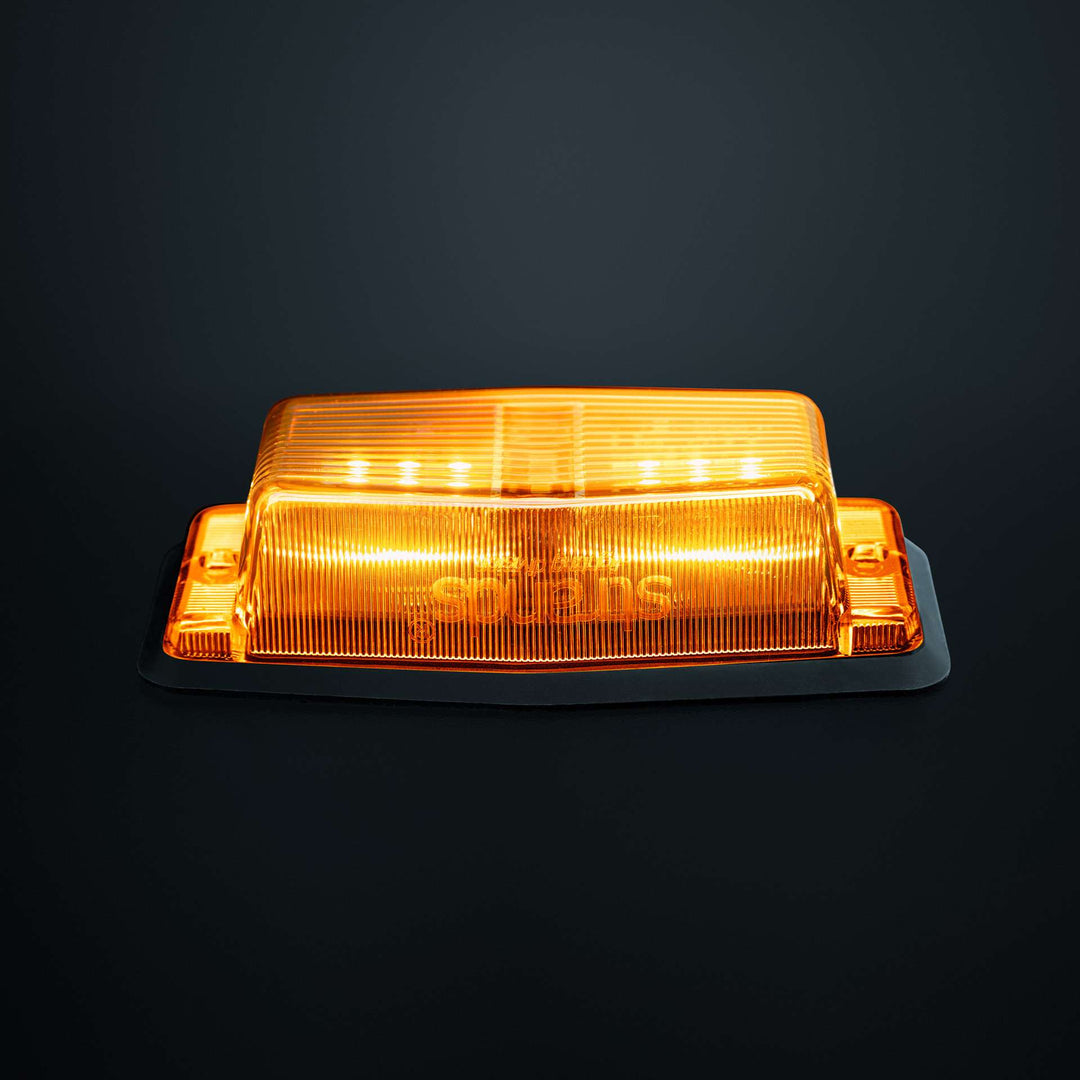

IZE LED AMBER DOUBLE BURNER

You want it old-school, we make it pro. This amber side marker, featuring a built-in warning light with 19 patterns, an amber lens, and lasting quality, makes this light a perfect companion for years to come. Strands’ 3-year function warranty guarantees the quality. Made from corrosion-free polycarbonate and IP-rated IP69K, you can be sure this light will withstand heavy rain, dirt, and extreme temperatures with ease. The IZE LED Double Burner is E-approved (R148) and EMC-certified ECE R10. It measures 125 x 52 x 32 mm and 109 mm CC, with a 1000 mm cable.

Unit: PCS
Voltage (DC): 10–32V DC
Theoretical effect: 8W
Consumption: 5.5W
Functions: Side marker / Warning light
Consumption specific function: Warning 2.5W / Side marker 3W
Patterns: 19
Connection: Cable
Cable length: 1000mm
Color housing: Black
Color lens: Amber
Color LED’s: Amber
Material housing/chassi: Polycarbonate
Material lens: Polycarbonate
Length: 125mm
Depth: 32mm
Height: 52mm
Weight: 0.096kg
CC: 109mm
IP-class: IP69K
Operating temperature: -30° – +60°C
E-approved: Yes
ECE approval: R10.06 / R148
