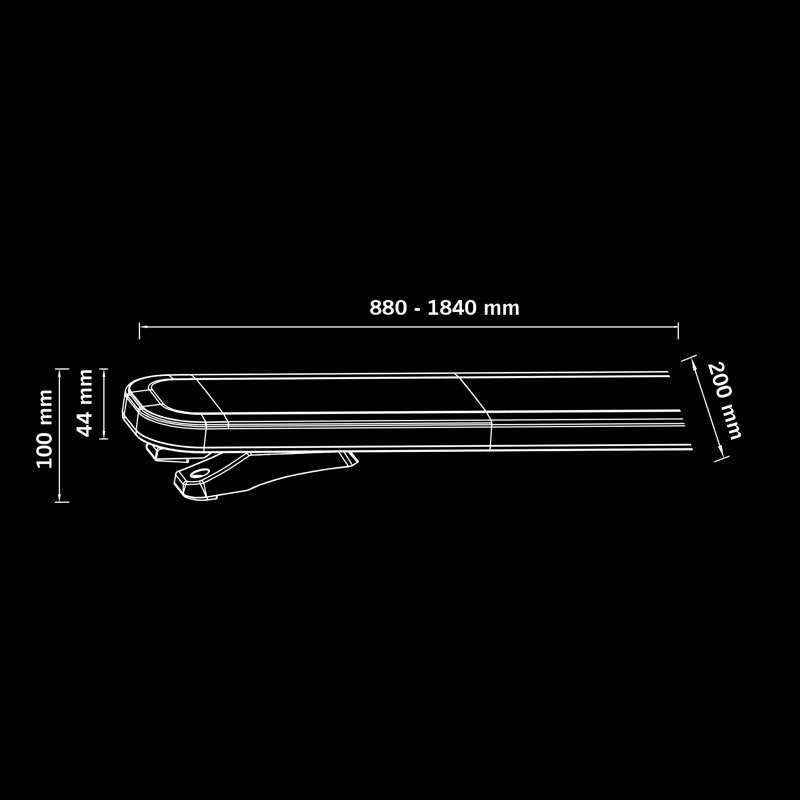

A smooth, dark style with an irresistible amber glow. The heavy-duty Big Energy XL is available in sizes between 880-1840 mm and has a 200 mm depth, making it a solid fit for trucks and other heavy vehicles. It’s E-approved ECE R65 TA2 and approved according to regulation ICAO type C for use on airport vehicles. This makes it a powerful warning light solution for any driver. The premium design boasts a dark lens, smooth sparkling TPU top, and rounded edges. It’s also updated with a much-requested feature: the amber cruise light glow. The amber cruise light has two patterns: on the edges or around the bar. For maximum flexibility, you can choose between 27 warning light patterns, and it will automatically switch to the latest setting. A 2500 mm cable allows easy access to the junction box, and it has separate cables for steady-on and day mode. The Big Energy XL is a durable product with high protection against dirt and water, thanks to the IP67 IP rating. It’s covered by Strands Lighting Divisions’ 3-year function warranty.
Specifications
Voltage (V DC)10-32V DC
Consumption 160w
Patterns29
FunctionsWarning light
ConnectionCable
Cable length (mm)2500
Color housingBlack
Color lensDark tinted
Color LED´sAmber
Material bracket Nylon
Material housing/chassisAluminium
Material lensPolycarbonate
Length (mm)1840
Depth (mm)200
Height (mm)44
Height including bracket (mm)100
IP-class67
Operating temperature-30 - +60°C
According to regulationECE R65 Class 2, ICAO Type C
EMCECE R10
Wiring
Black cable- (Negative)
Red cable+ Positive
White cableLow intensity, constantly connect to red wire to achieve it
Blue cable+ (Positive steady on pattern nr 28 and 29)
Yellow cablePattern selection, apply to red
Brown cableRight arrow direction (Apply to red wire constantly)
Green cableLeft arrow direction (Apply to red wire constantly)
