Name: Skylord LED BAR (10"-40")
Brand: Strands-Canada
SKU: 902000
Price: 959.0 USD
Availability: InStock

$959.00

Shipping calculated at checkout.

Size

10 Inch

20 Inch

30 Inch

40 Inch

Description
Specifications
Manual
Product Sheet

Description

5-year warranty

This is the next generation of LED bars, with an output tailored to provide a new kind of lighting experience. The housing is cast in one piece, securing it against water, corrosion, vibrations, and dirt. Since the housing has no screw holes, it offers superior protection against wear and tear. It’s waterproof, IP-rated IP69K, and has a new type of coating. It features double breathers and a solid build, making it especially suited to heavier vehicles. It’s covered by Strands’ unique 5-year warranty.

One LED bar, 2x20 reference number

By combining clever design and innovative technology, we have integrated a dual light source into a single LED bar. This means that in the E-approved E-mode (R148/149), the 20”-40” Skylords have a reference number of 2x20. The 10” version has reference number 20. In many European countries, a dual light source is a requirement for road-legal lighting. This solution allows the Skylord LED bar to deliver more actual lumens while remaining approved in E-mode.

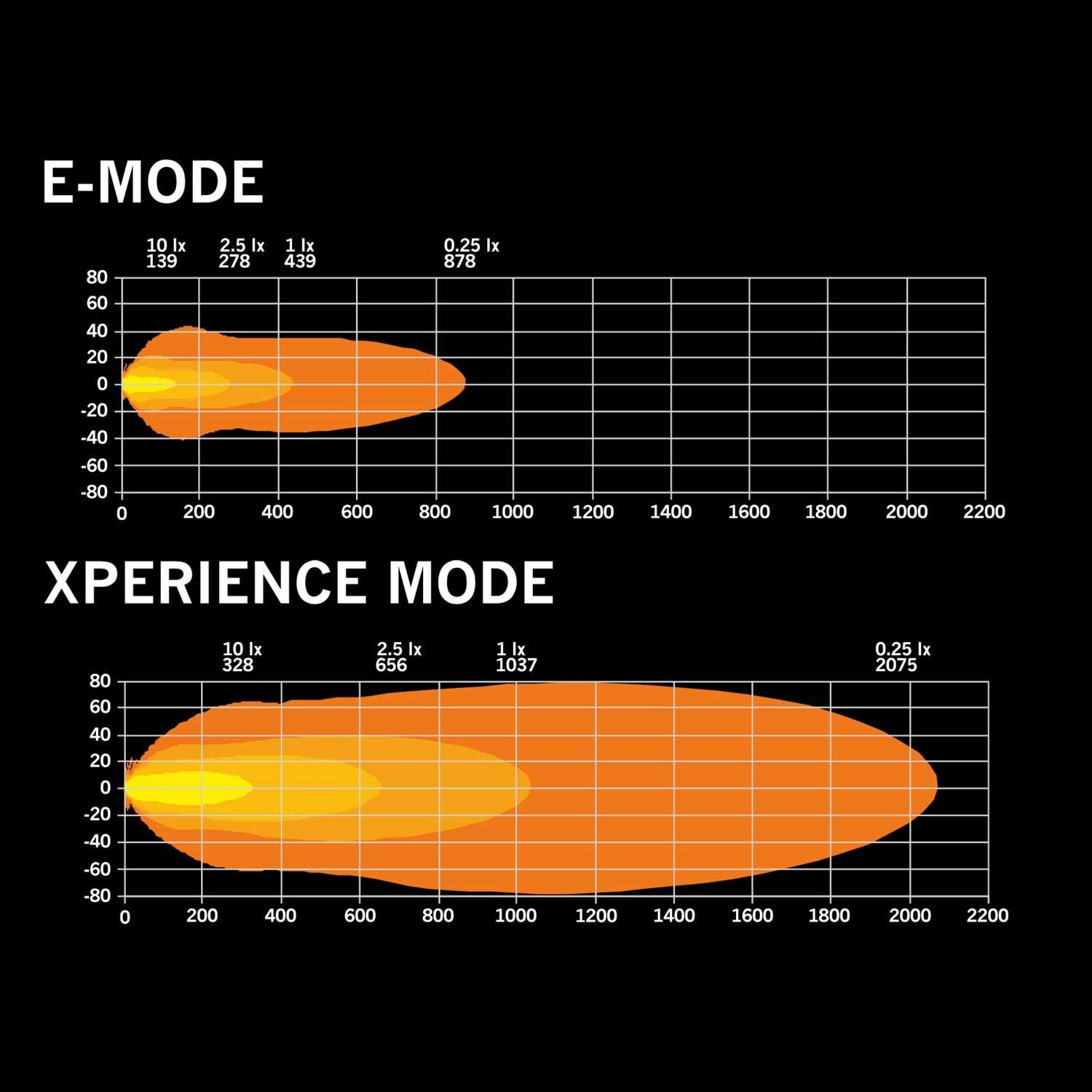

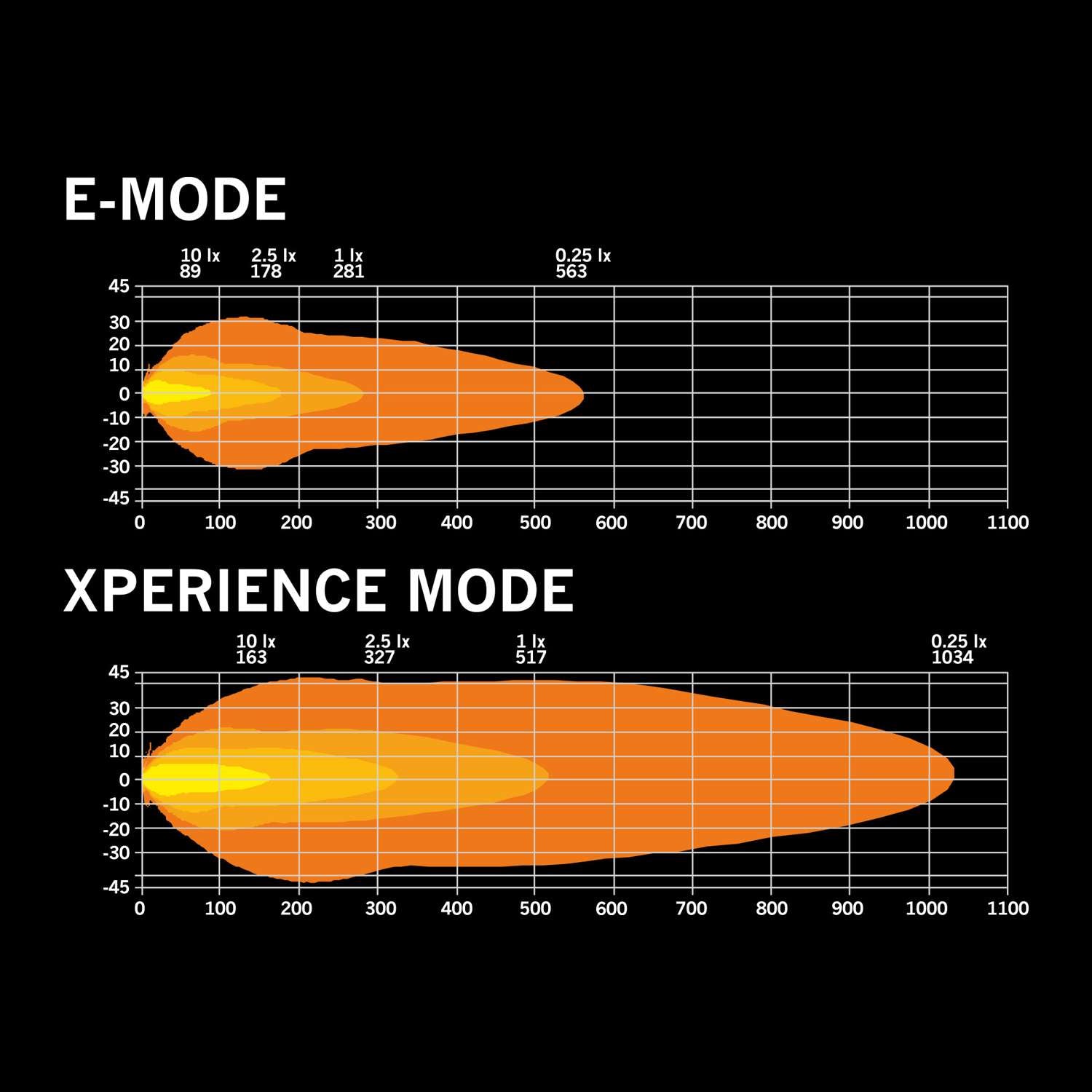

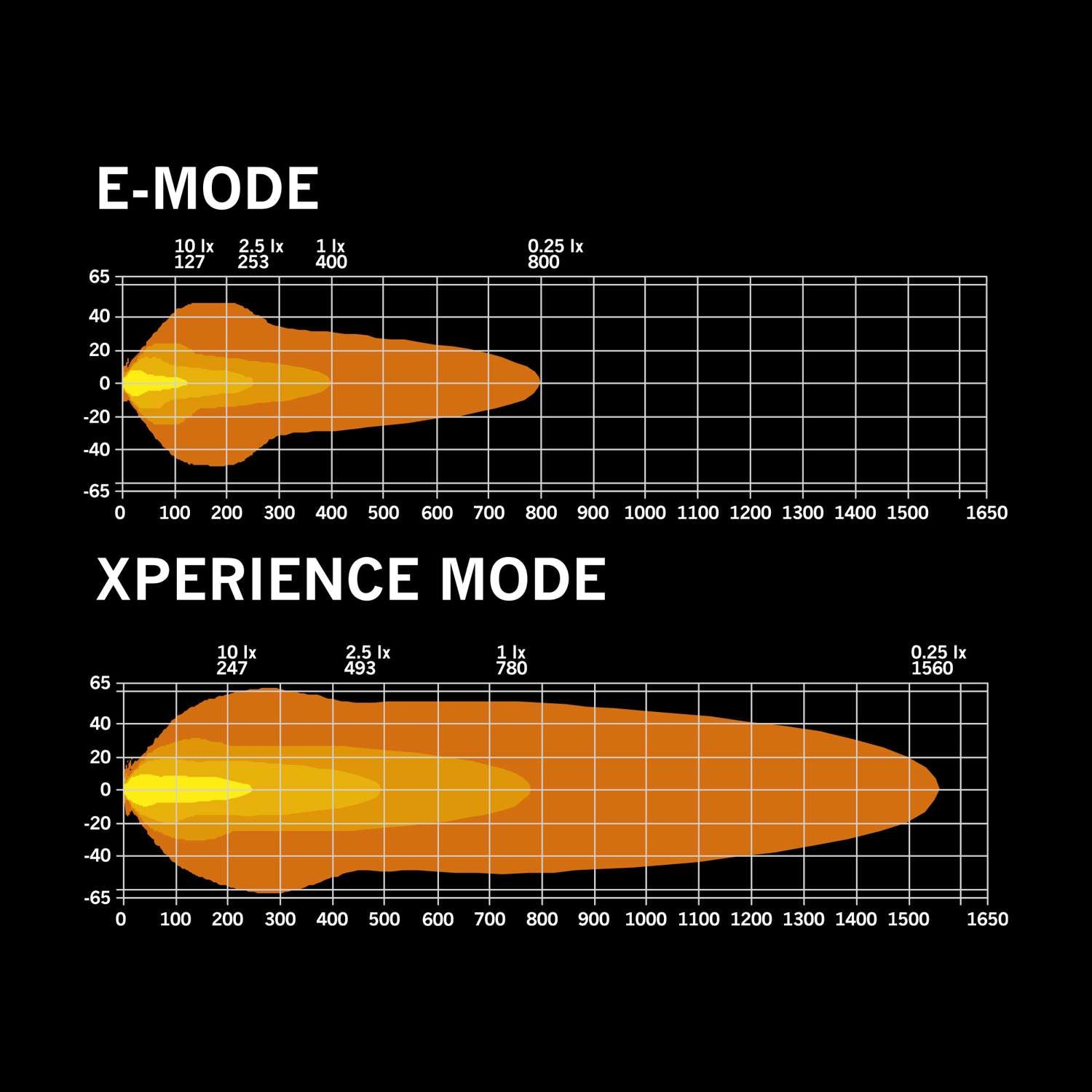

1 lux @ 1 km

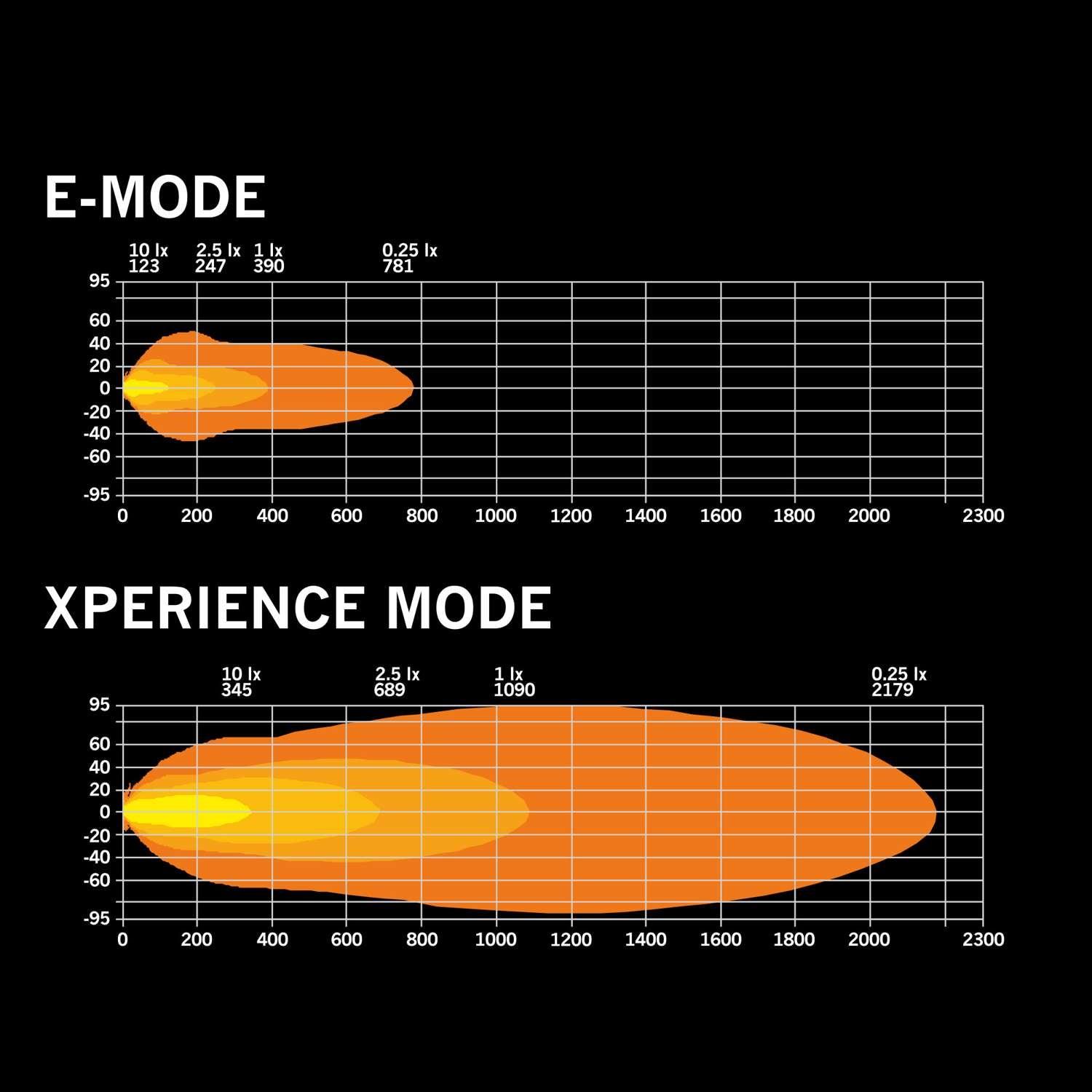

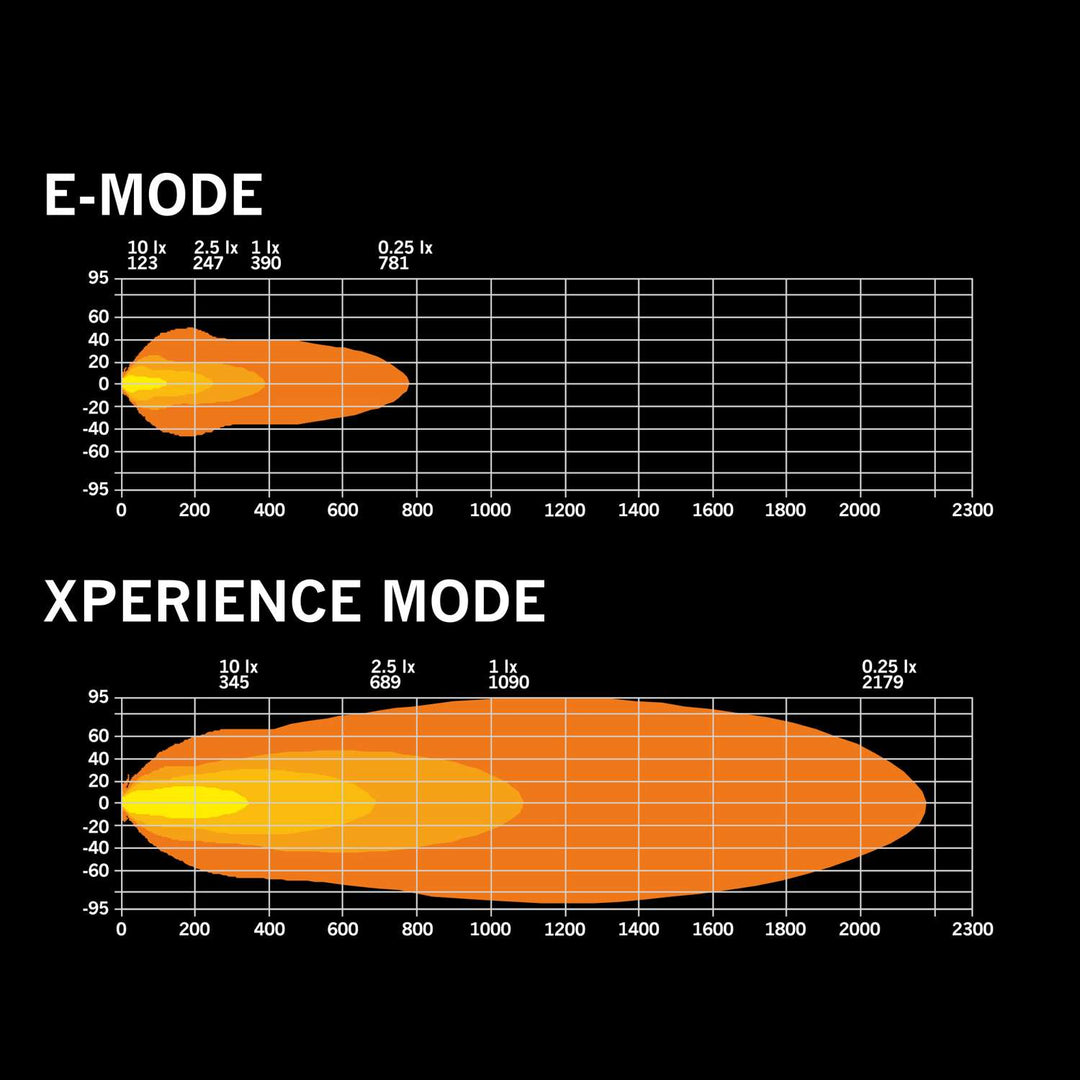

Thanks to the effective technology, the Skylord output is unique. The new beam pattern provides maximum visibility to both the front and sides. It reaches further than the average combo beam and is broader and stronger closer to the vehicle than ordinary long-distance beams. All Skylord LED bars can be used with the E-approved E-mode or with Xperience mode. The Xperience mode is a powerful boost mode that reaches over 30,000 actual lumens and 1 lux @ 1 km for the 40” model.

Plug and play installation

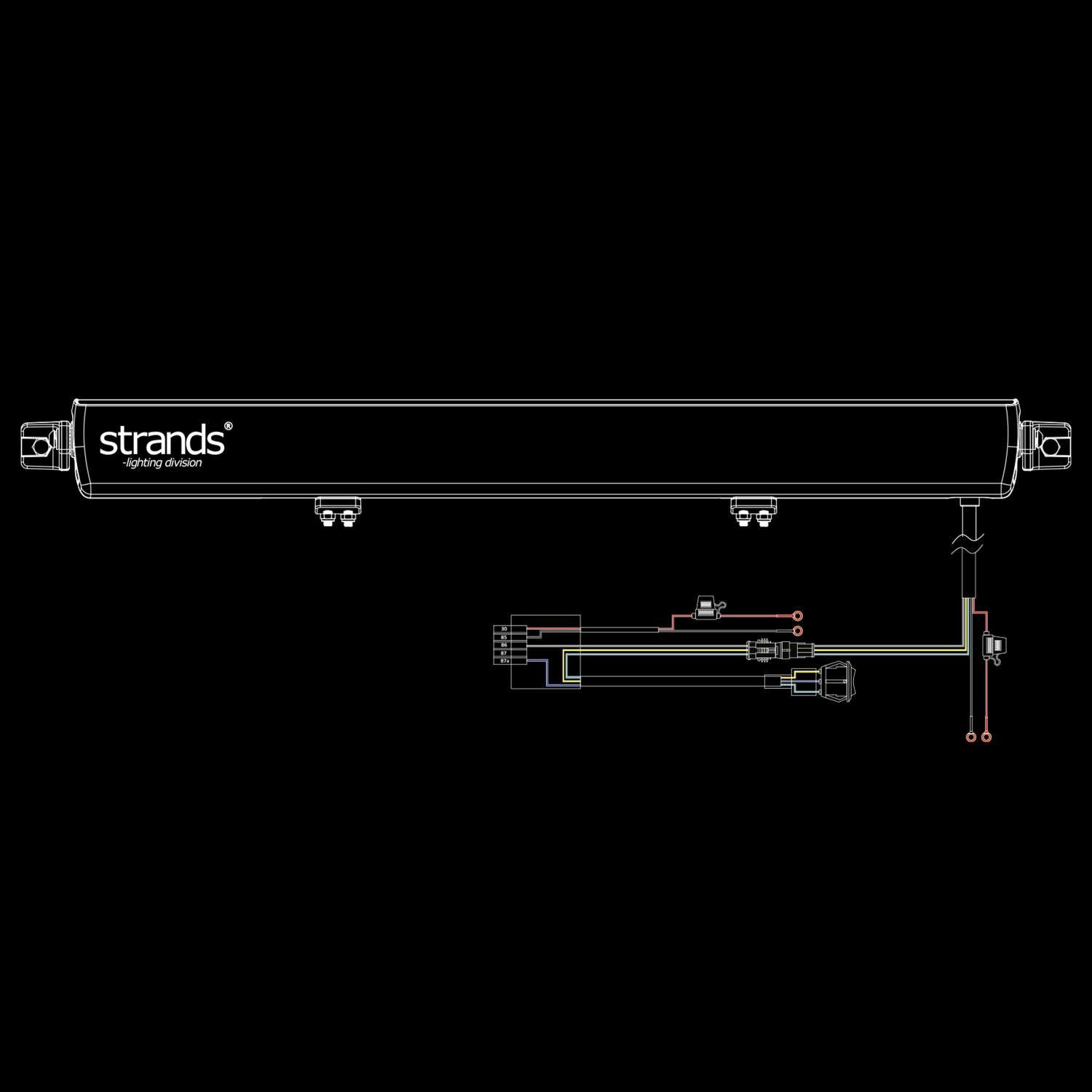

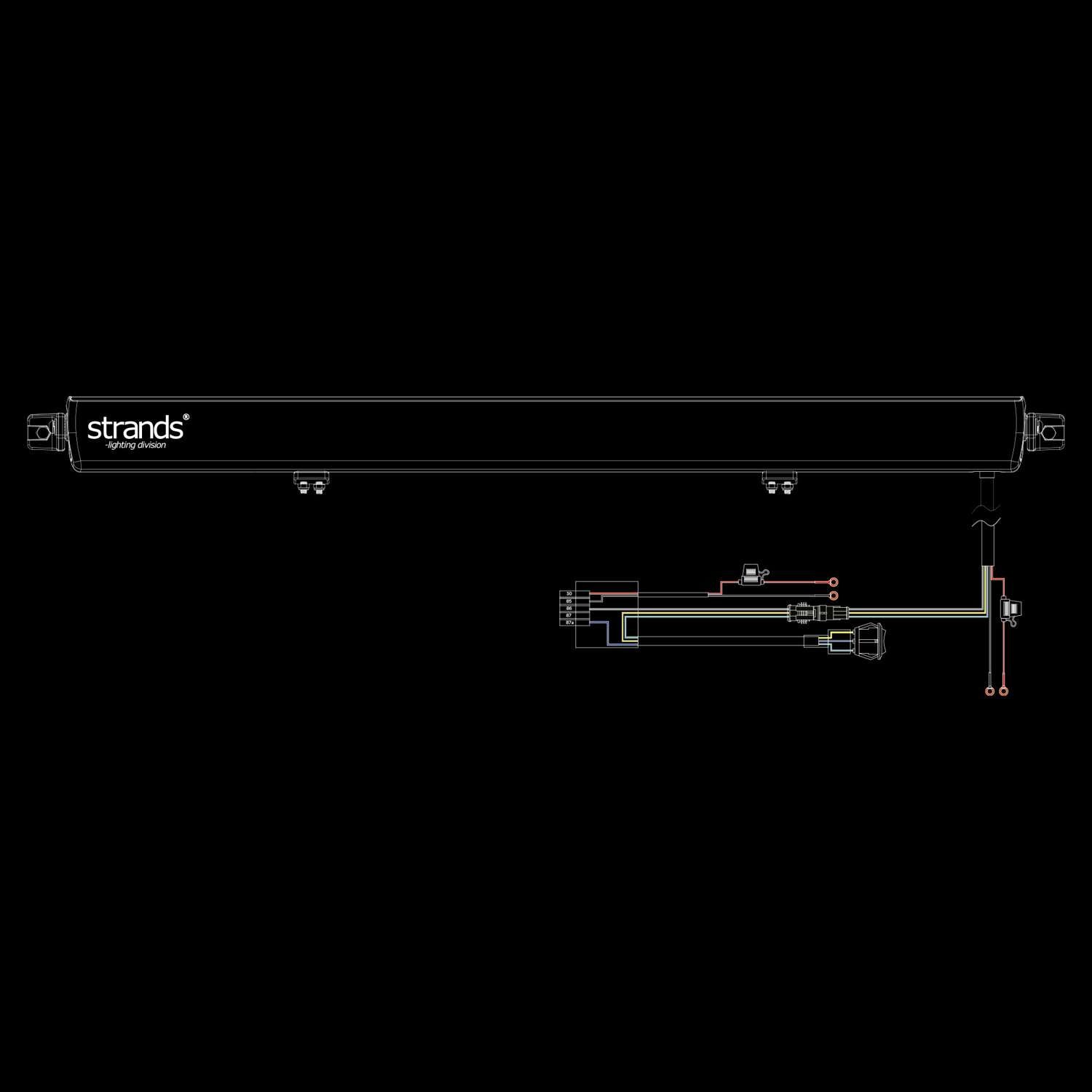

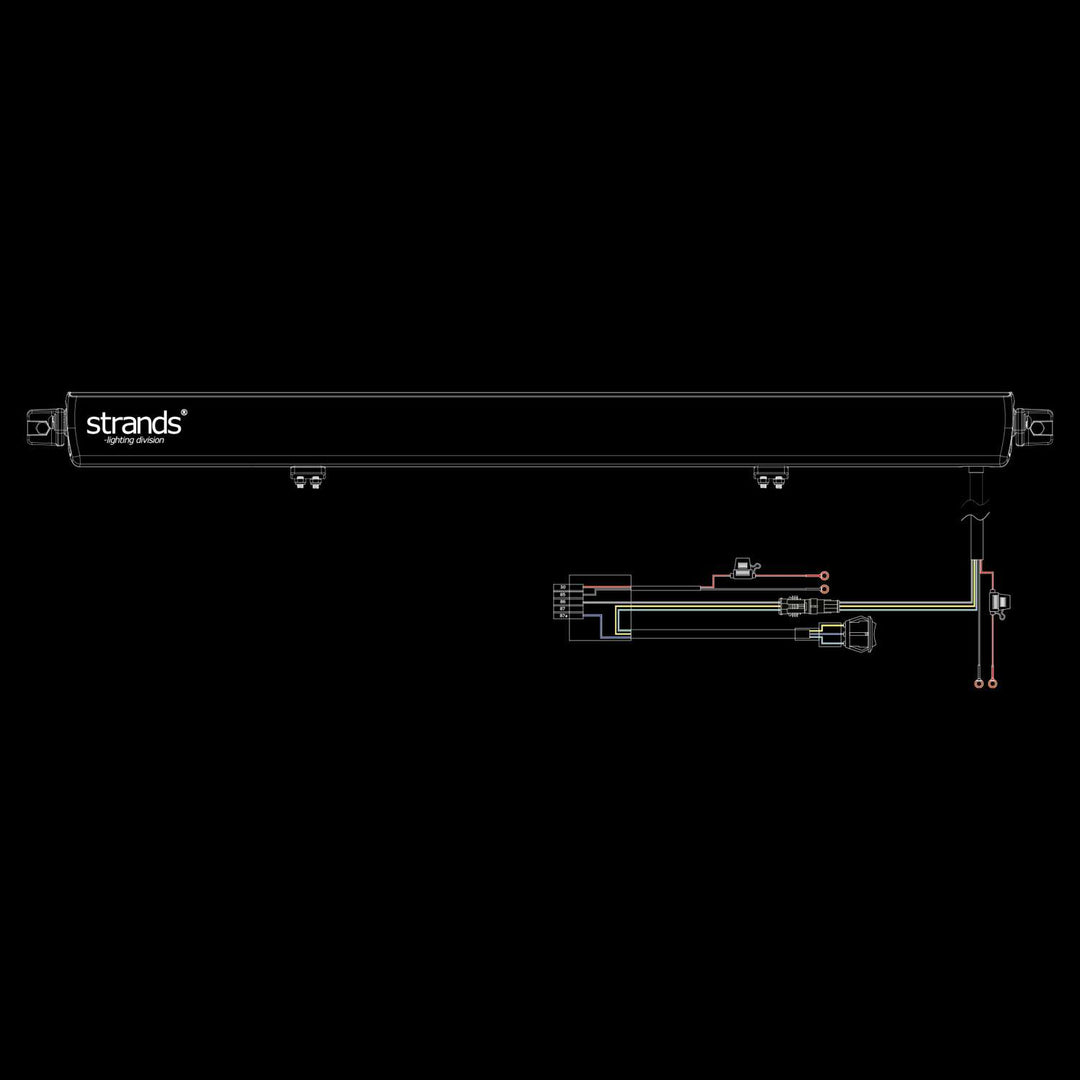

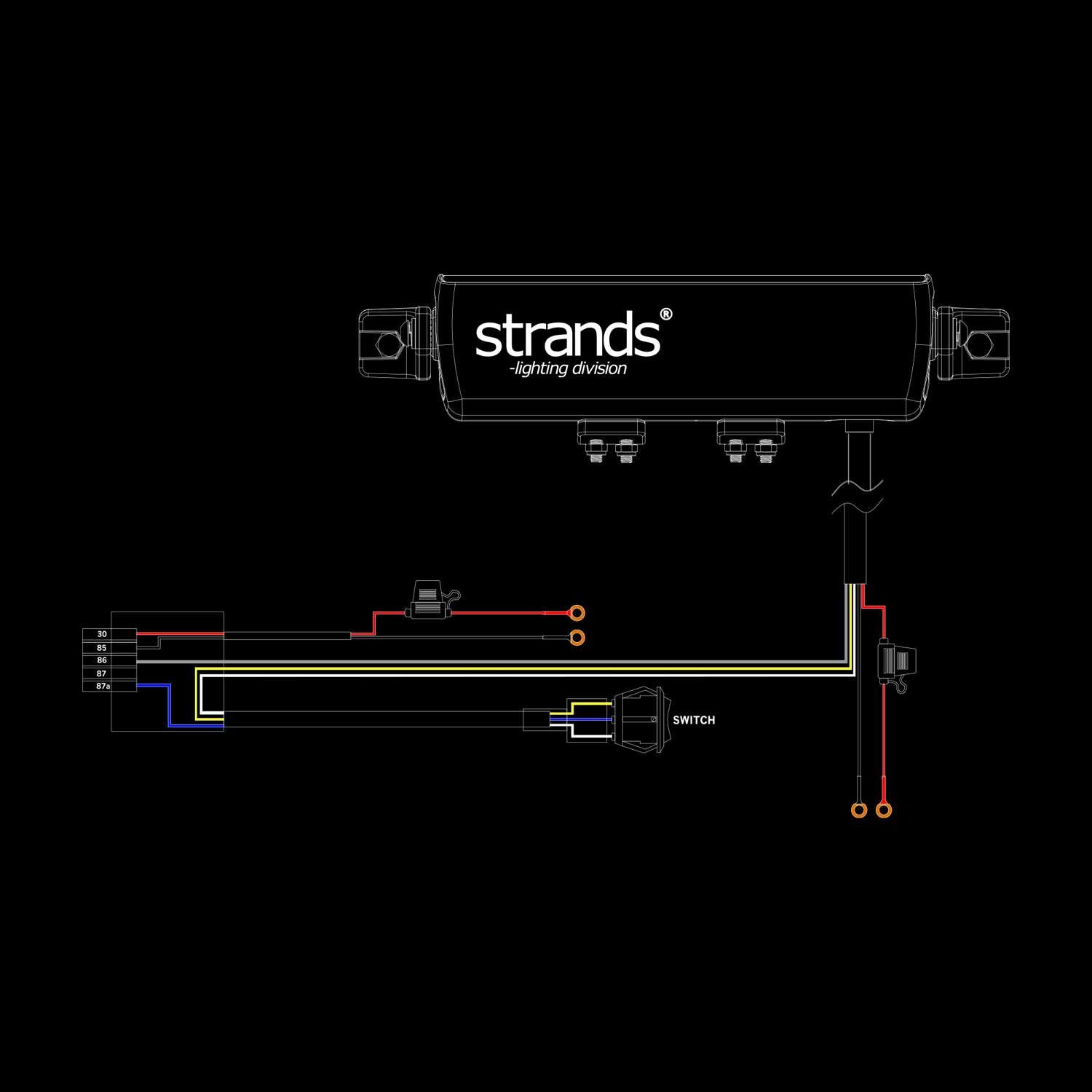

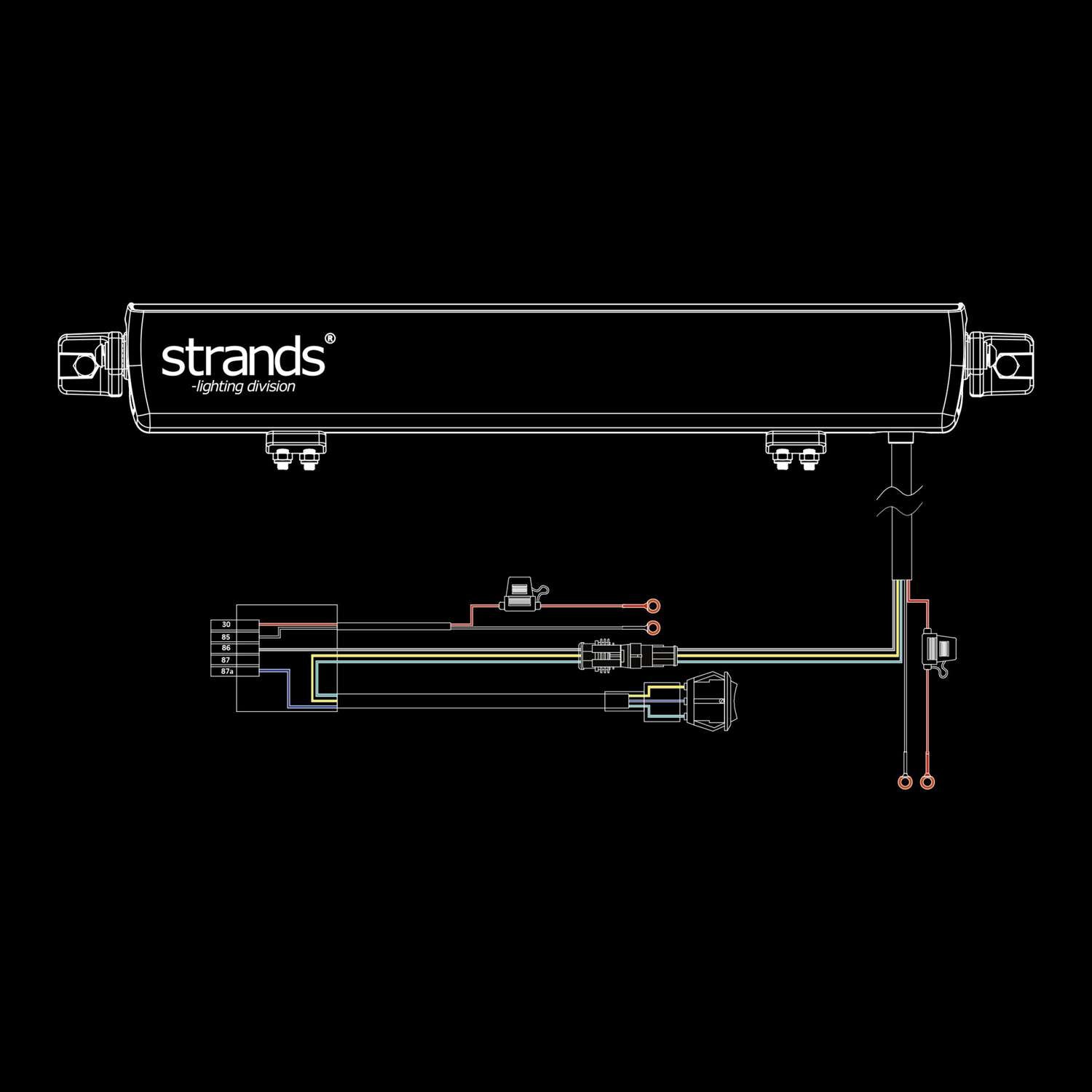

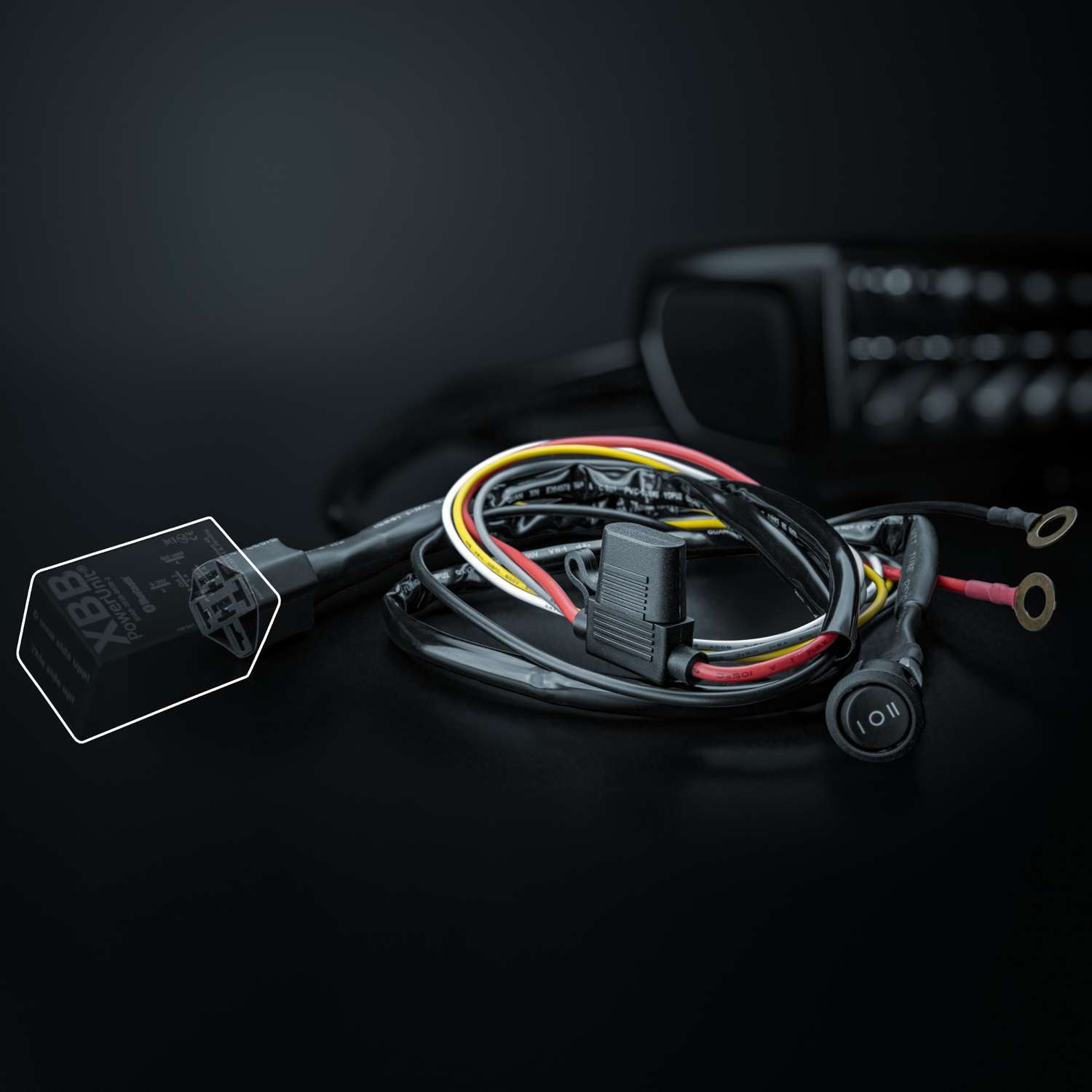

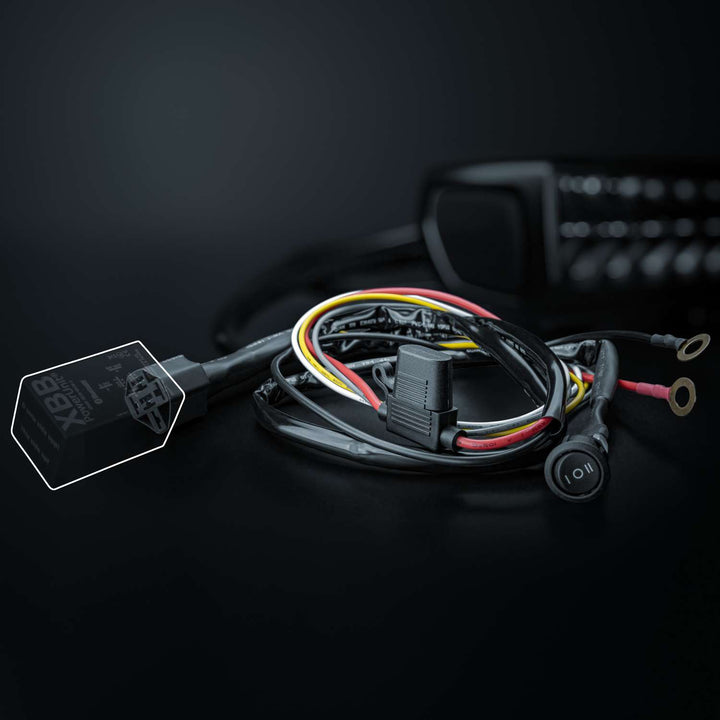

The Skylord LED bar is delivered with an XBB cable harness, enabling a smooth plug-and-play connection between the LED bar and XBB interface. The signal cable is already integrated into Output 1, and the position light into Output 2, ensuring fast and accurate setup. It features a pre-mounted switch for the position lights, located in the engine compartment, allowing you to easily switch them on or off with a simple press.

These lights are sold individually and do not require a relay harness due to the integral relay in the lamp itself. Please check the manual for wiring instruction.

Specifications

PART NUMBER	902000	902001	902002	902003
VOLTAGE	10-32V DC	10-32V DC	10-32V DC	10-32V DC
CONSUMPTION, XPERIENCE-MODE	76W	170W	276W	338W
CONSUMPTION, E-MODE	37W	74W	84W	76W
ACTUAL LUMEN, XPERIENCE-MODE	7700 lm	15800 lm	26000 lm	30100 lm
ACTUAL LUMEN, E-MODE	4000 lm	7600 lm	9200 lm	8500 lm
1 LUX @, XPERIENCE-MODE	517 m	780 m	1037 m	1090 m
1 LUX @, E-MODE	281 m	400 m	439 m	390 m
COLOR TEMPERATURE	5700K	5700K	5700K	5700K
BEAM PATTERN	Extended beam	Extended beam	Extended beam	Extended beam
IP-CLASS	IP68/IP69K	IP68/IP69K	IP68/IP69K	IP68/IP69K
COLOR LENS	Clear	Clear	Clear	Clear
HELLO FUNCTION	No	No	No	No
POSITION LIGHT	White & Amber	White & Amber	White & Amber	White & Amber
CONNECTION	Cable	Cable	Cable	Cable
CABLE LENGTH	2500 mm	2500 mm	2500 mm	2500 mm
MATERIAL HOUSING	Aluminium	Aluminium	Aluminium	Aluminium
MATERIAL LENS	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate

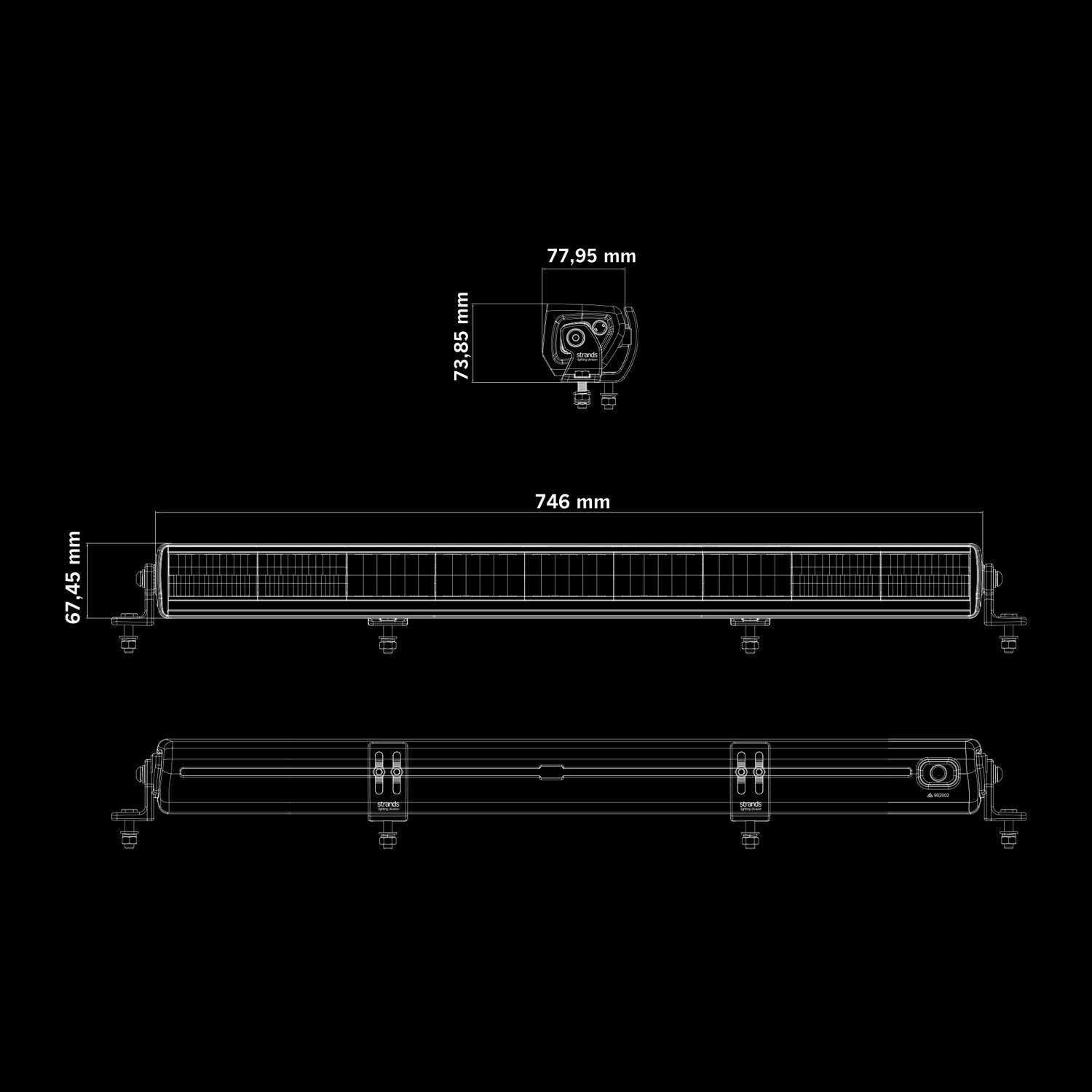

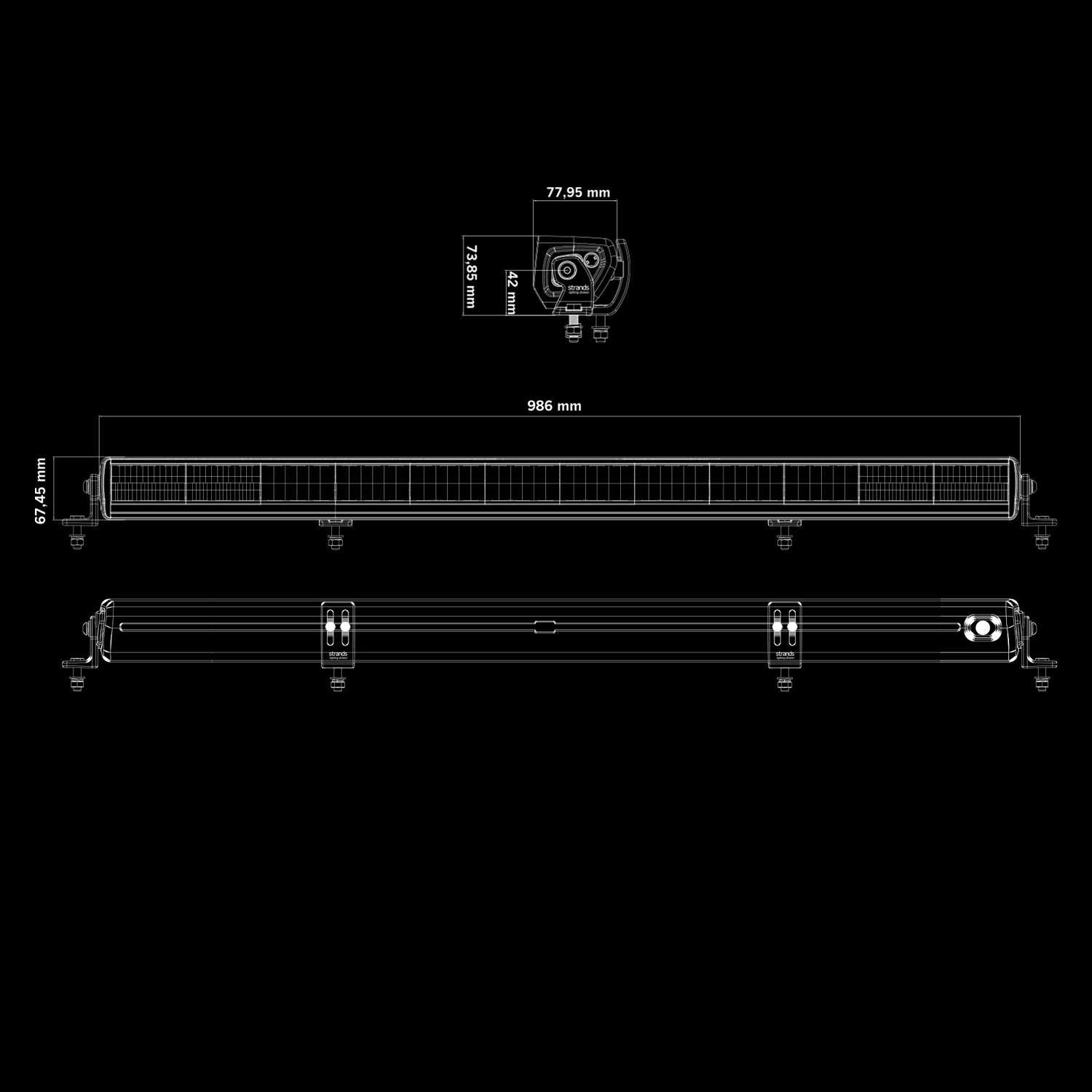

LENGTH	266 mm	506 mm	746mm	986 mm
DEPTH	77.95 mm	77.95 mm	77.95 mm	77.95 mm
HEIGHT	67.45 mm	67.45 mm	67.45 mm	67.45 mm
HEIGHT INCLUDING BRACKET	73.85 mm	73.85 mm	73.85 mm	73.85 mm
OPERATING TEMPERATURE	-35°C - +60°C	-35°C - +60°C	-35°C - +60°C	-35°C - +60°C
E-APPROVED	ECE R148, R149	ECE R148, R149	ECE R148, R149	ECE R148, R149
EMC-CERTIFICATE	ECE R10	ECE R10	ECE R10	ECE R10

Manual

Download Manual

Product Sheet

Download Product Sheet

All orders placed on Strandsamerica.com will ship next business day. Once the order has been Shipped all tracking information will be sent via email.
