Name: Siberia Double Row Curved (22"-50")
Brand: Strands-Canada
SKU: 809196
Price: 458.0 CAD
Availability: InStock

$458.00

Shipping calculated at checkout.

Size

22 Inch

32 Inch

42 Inch

50 Inch

Description
Specifications
Manual

Description

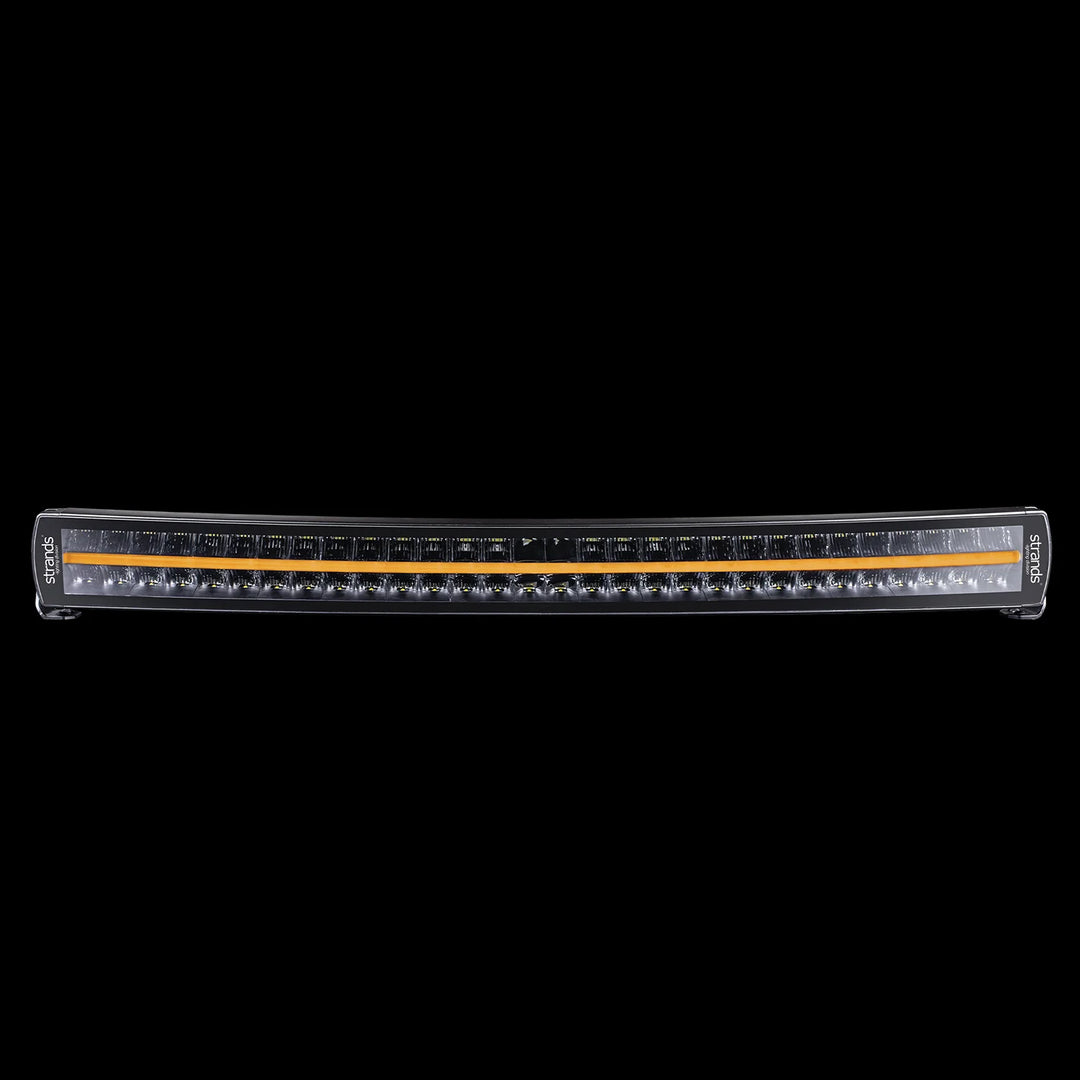

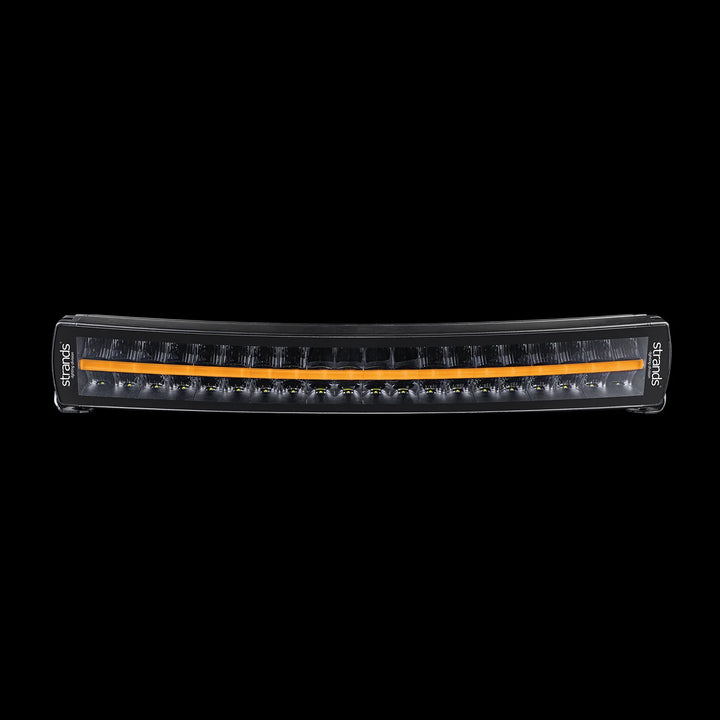

Welcome to the future. This is Siberia Curved. A double row LED bar, made for your vehicle. It is more than innovative. Siberia is pushing the boundaries and redefining what an LED bar is. We are talking cutting-edge design in combination with revolutionary features. The 22″ model is E-approved.

Pioneering design and incredible light capacity. Let yourself be enchanted by Siberia Curved. A curved shape, appealing from all angles. An elegant look, even during the bright hours of the day. Exclusive material choices. Innovative features that provide freedom of choice. Make your own mark and choose between amber and white position light. And of course – Siberia Curved offers an optimized light beam that provides maximum width, without losing length.

This light is sold individually and does not include a harness (whip included on models with DT connector)

Wiring Harnesses: For 1 Light (22" only)

Specifications

	22 Inch	32 Inch	42 Inch	50 Inch
VOLTAGE	10-40V DC	10-40V DC	10.40V DC	10-40V DC
CONSUMPTION (w)12V/24V
HIGH BEAM (w)	91/91	283.5/280	393.6/383.3	487.2/468.3
WHITE POSITION LIGHT (w)	5.5/5.5	7.5/7.5	9.5/9.5	12/12
AMBER POSITION LIGHT (w)	14.5/14.5	22/22	30/30	36.5/36.5
THEORETICAL LUMEN	16000	24000	32000	38400
ACTUAL LUMEN	6161	12663	15800	18900
1 LUX @ (m)	415	543	557	573
IP CLASS	IP67/IP69K	IP67/IPS9K	IP67/IP69K	IP67/IP69K
BEAM PATTERN	Combo	Combo	Combo	Combo
POSITION LIGHT	Yes, white and amber	Yes, white and amber	Yes, white and amber	Yes, white and amber
CONNECTION	DT4	Cable	Cable	Cable
CABLE LENGTH (mm)	500	2500	2500	2500
MATERIAL HOUSING	Aluminium	Aluminium	Aluminium	Aluminium
MATERIAL LENS	Polycarbonate	Polycarbonate	Polycarbonate	Polycarbonate
LENGTH (mm)	566,33	823,16	1078,4	1281,11
DEPTH (mm)	71,6	71,6	71,6	71,6
HEIGHT (mm)	76	76	76	76
HEIGHT INCLUDING BRACKET	89mm	89	89	89
OPERATING TEMPERATURE	-30°C - +65°C	-30°C . +65°C	-30°C . +65°C	-30°C . +65°C
E-APPROVED	ECE R7, R112	No	No	No
EMC-CERTIFICATE	ECE R10	ECE R10	ECE R10	ECE R10

Manual
