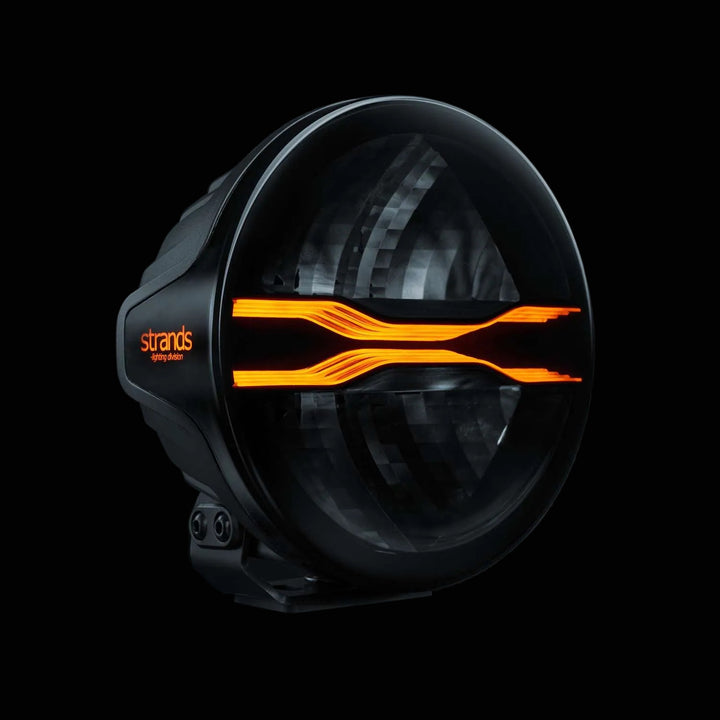

Black light fixture with amber accents on a dark background, featuring the Strands logo.
FOR9T DRAGON DRIVE XP (7″)
FOR9T DRAGON DRIVE XP (7″)
FOR9T DRAGON DRIVE XP (7″)
FOR9T DRAGON DRIVE XP (7″)
FOR9T DRAGON DRIVE XP (7″)
FOR9T DRAGON DRIVE XP (7″)
FOR9T DRAGON DRIVE XP (7″)
FOR9T DRAGON DRIVE XP (7″)
FOR9T DRAGON DRIVE XP (7″)
FOR9T DRAGON DRIVE XP (7″)
FOR9T DRAGON DRIVE XP (7″)
FOR9T DRAGON DRIVE XP (7″)
FOR9T DRAGON DRIVE XP (7″)

FOR9T DRAGON DRIVE XP (7″)

270967

Regular price$399.00
/
Shipping calculated at checkout.

The Dragon Drive is now available in a 7” version. It has an impressive output of 6600 actual lumens and a range of over 440 meters in Xperience mode. The E-mode is E-approved R148/149 with reference number 20, which is often required but also ideal for driving in poor weather conditions. The adjusted output reduces glare from rain, snow, or fog. The optimized (combo) beam ensures optimal forward and sideways illumination.

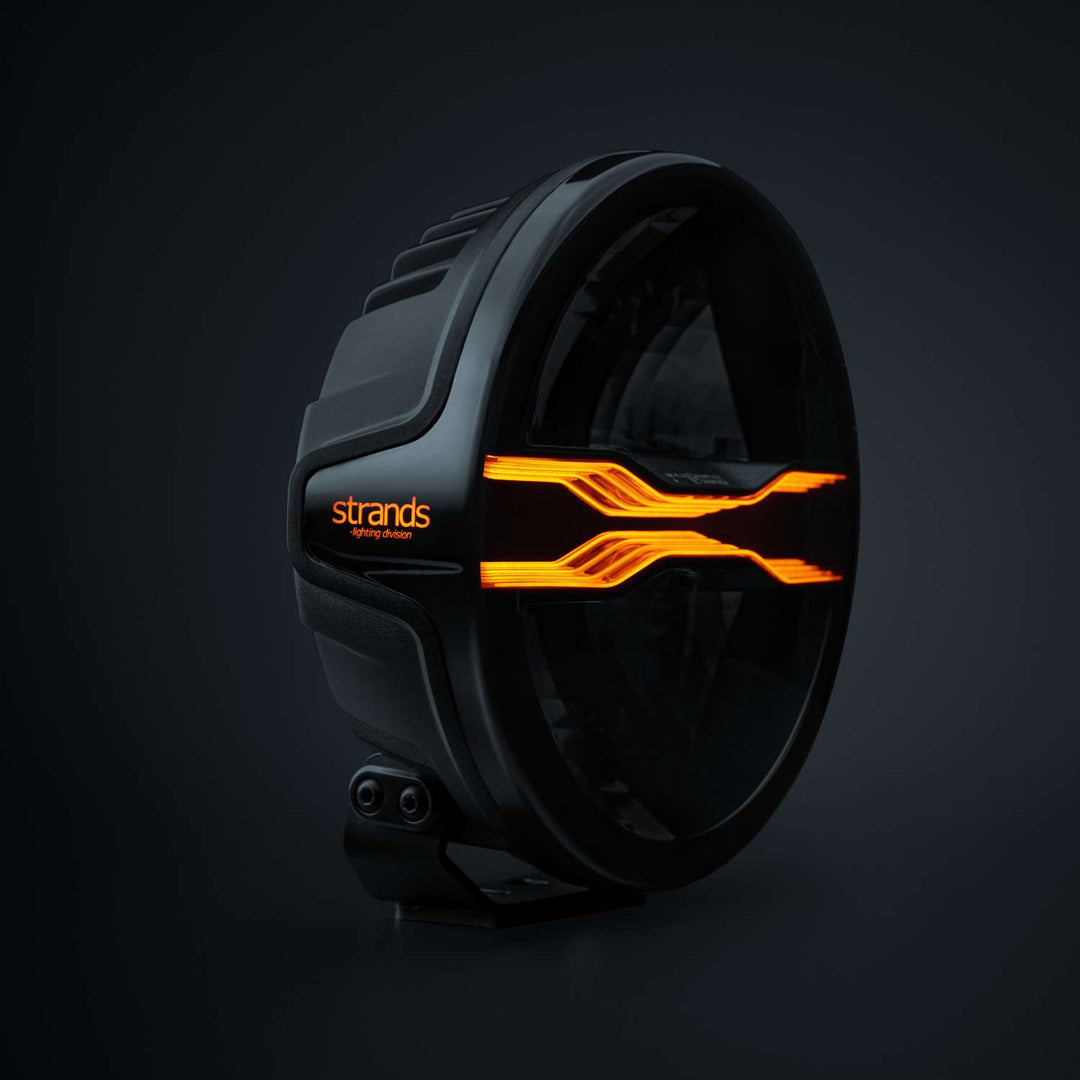

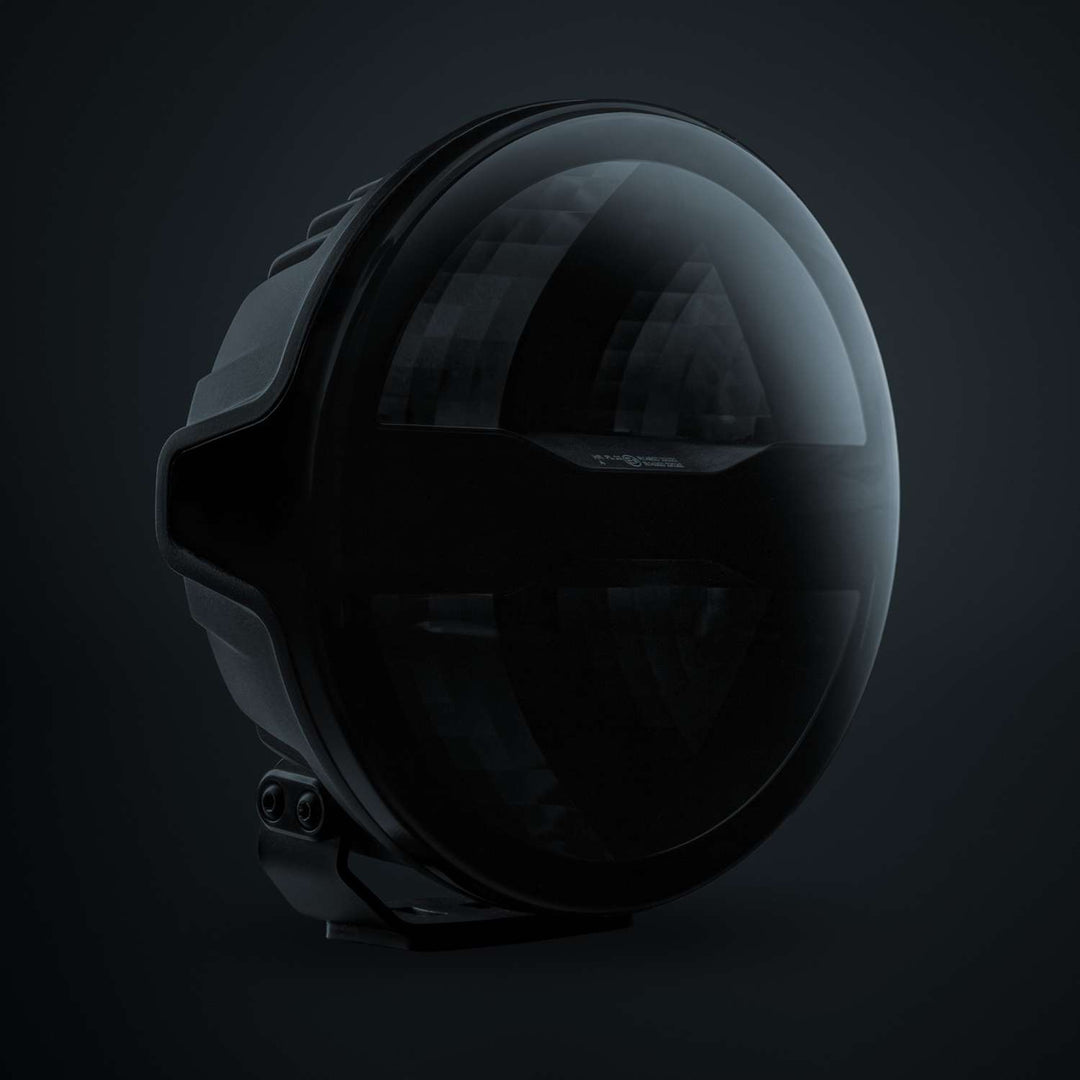

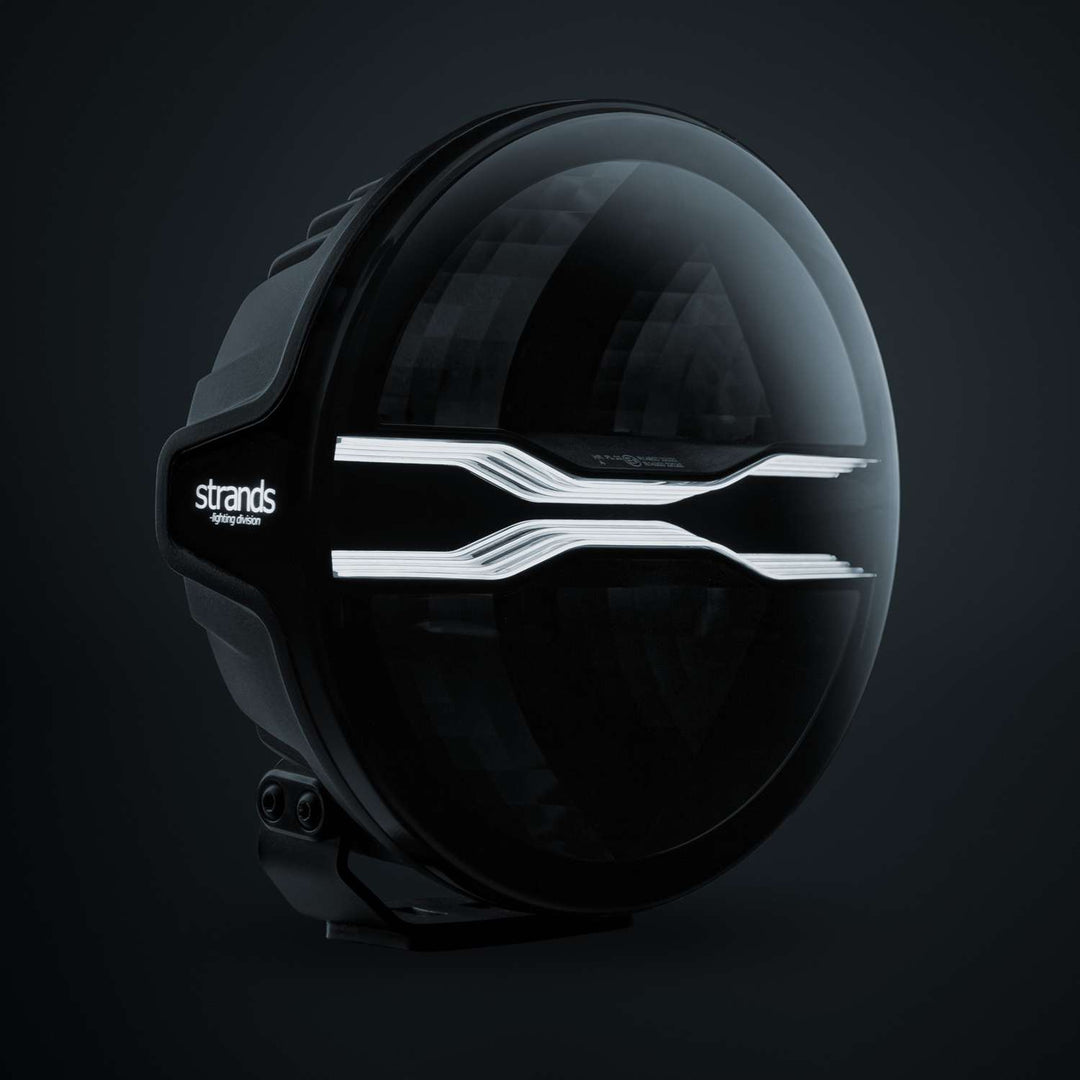

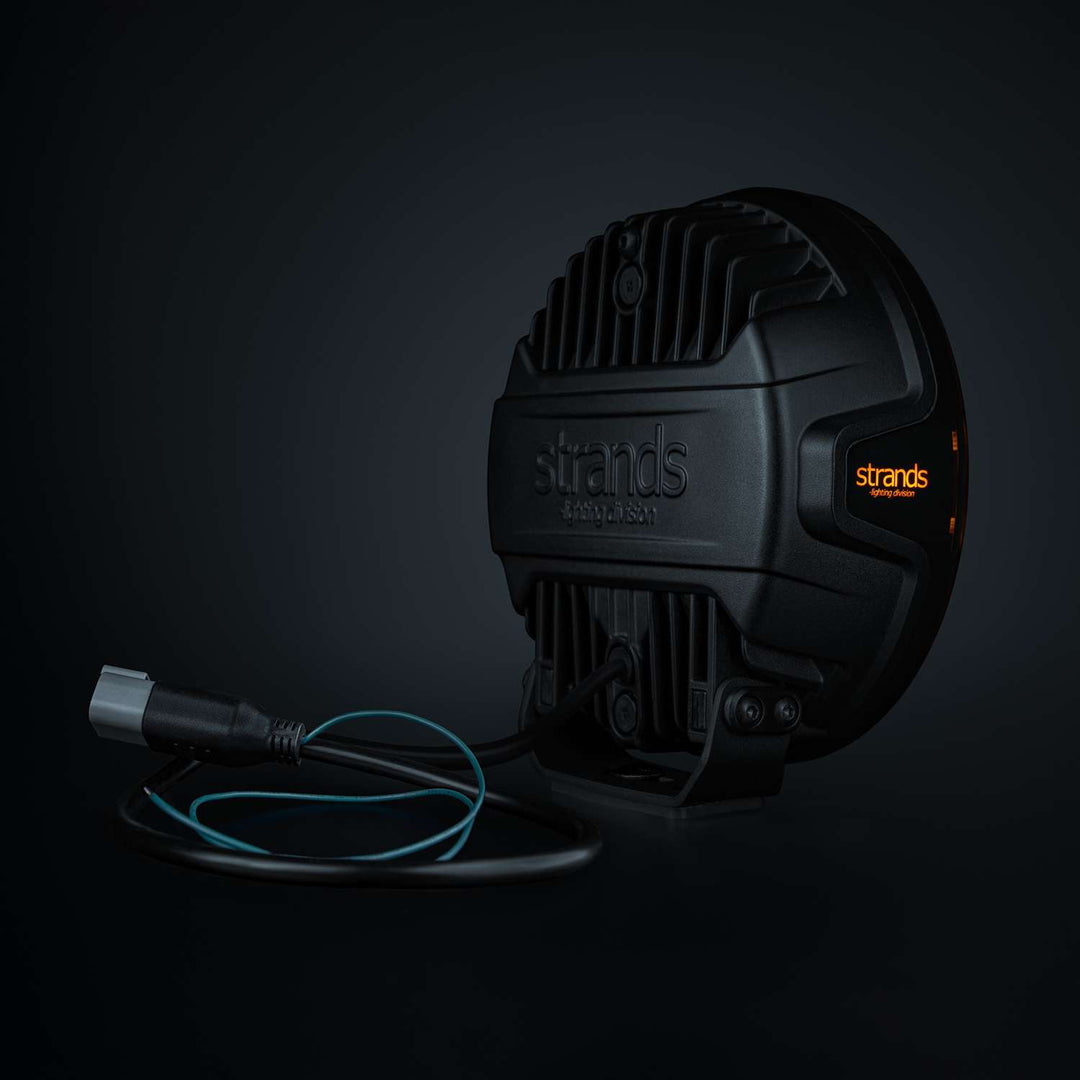

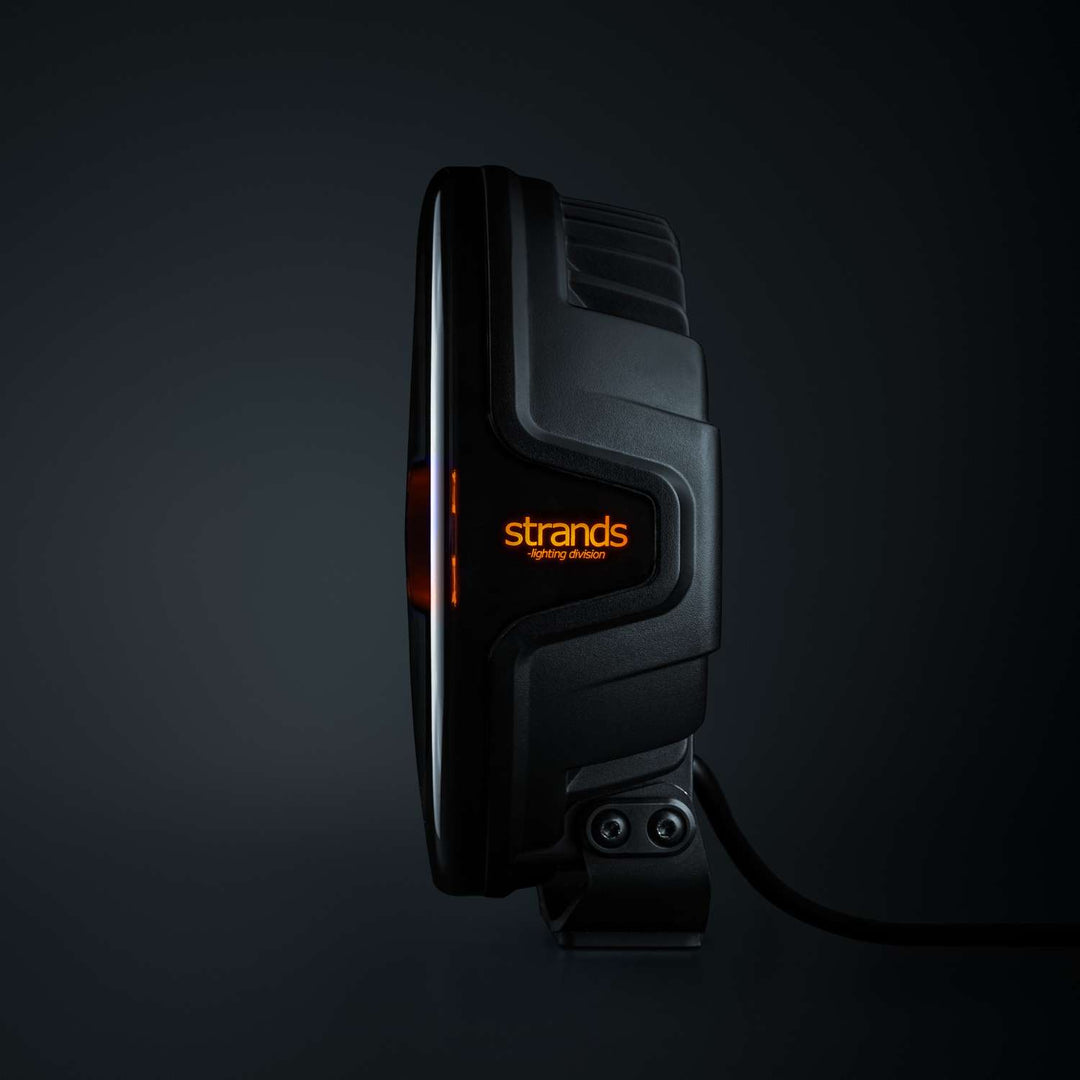

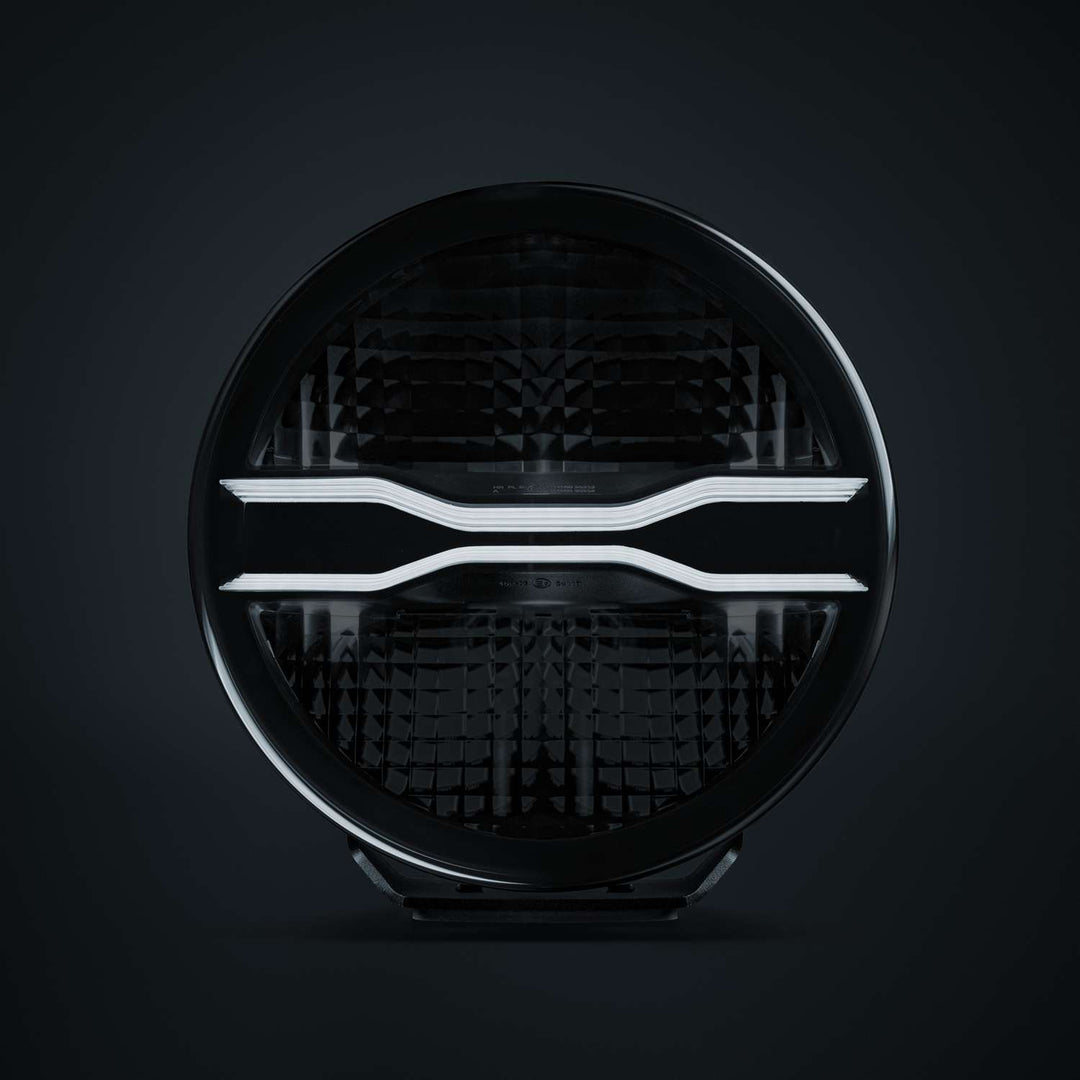

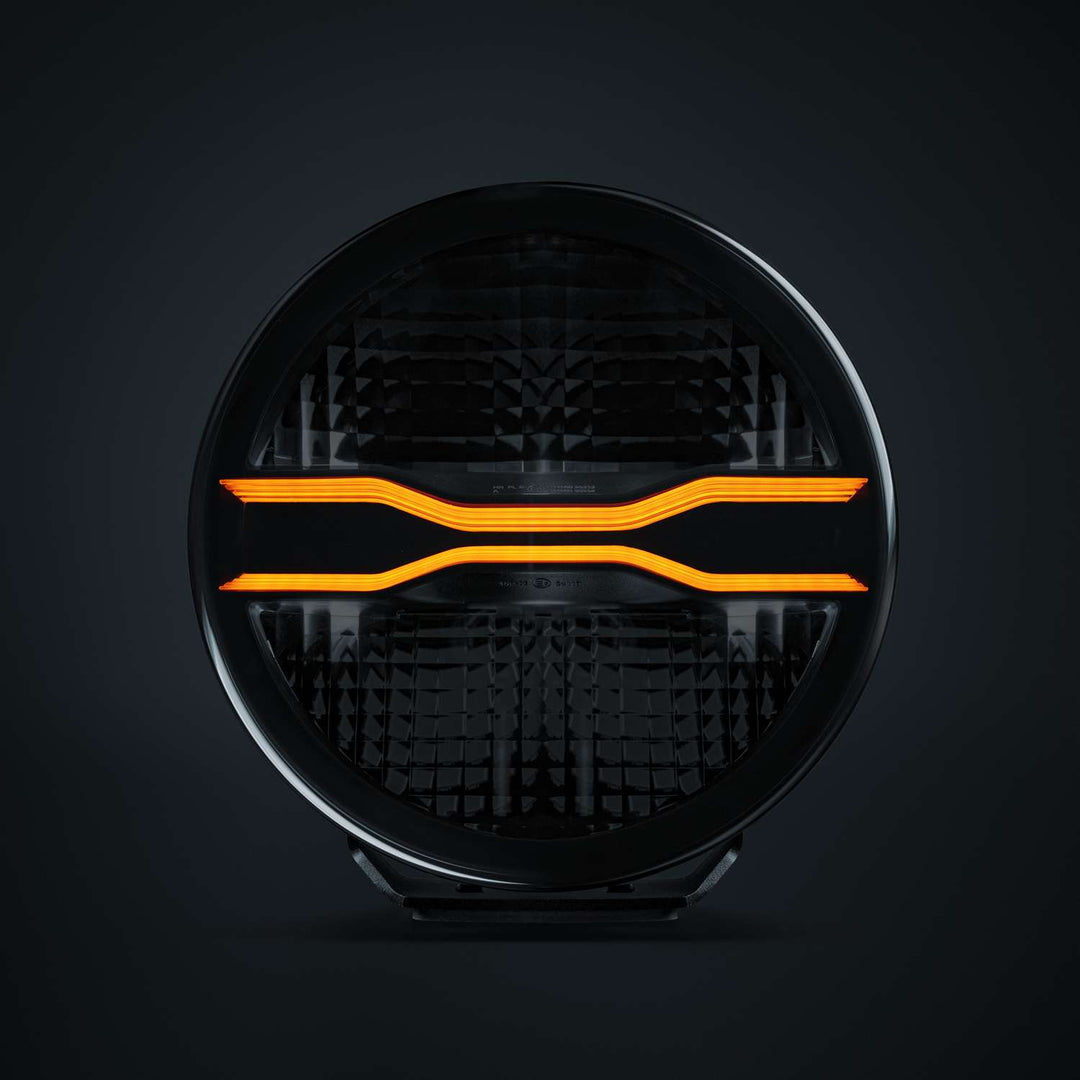

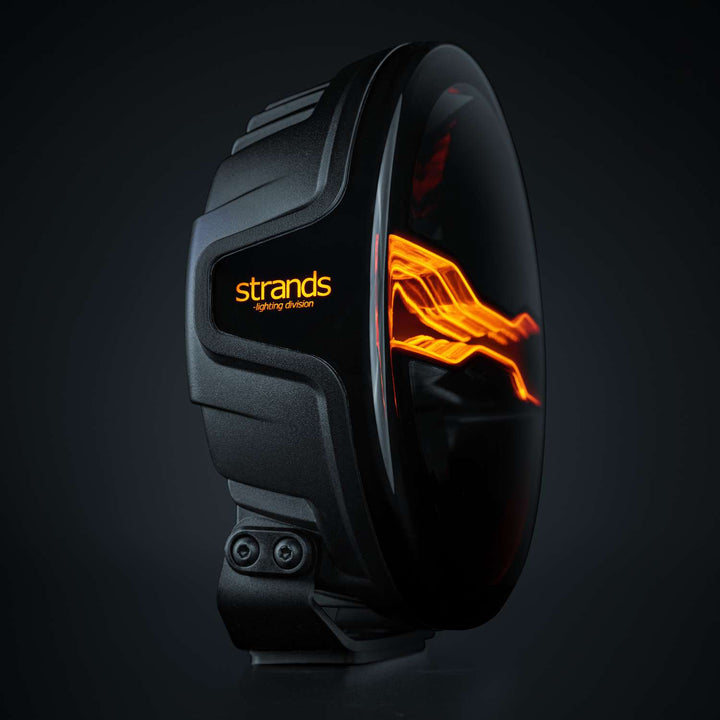

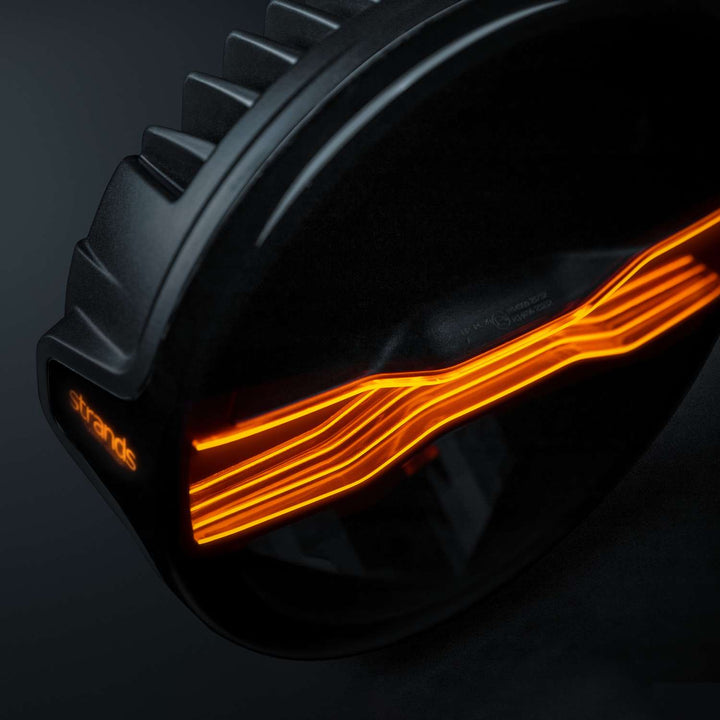

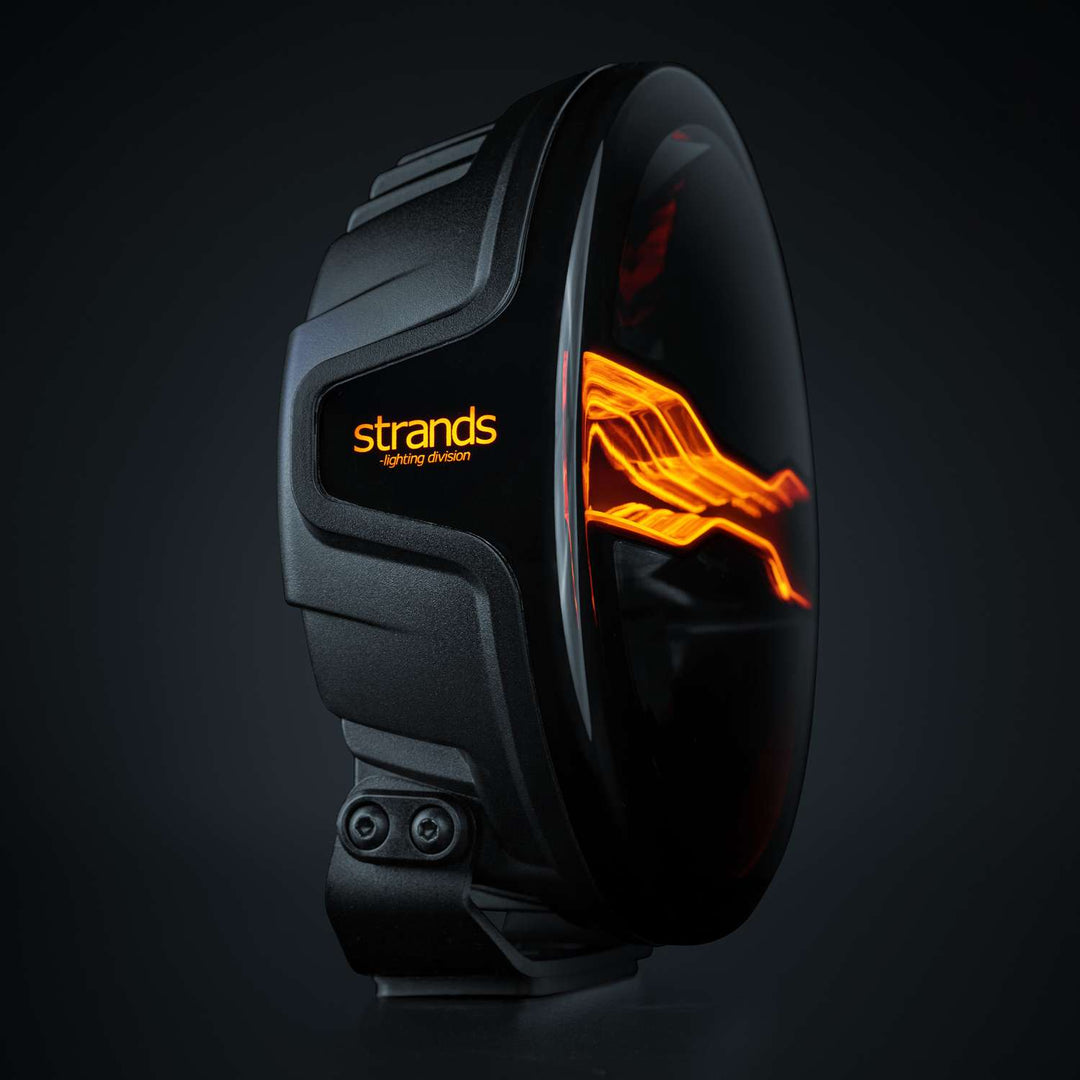

The FOR9T dual-color position lights in white and amber offer a modern look and superior performance, with flowing lines making your vehicle the center of attention. It also illuminates the Strands logo on the side of the lens. When not in use, the position lights are dark and invisible against the lens. The Dragon Drive is made with high-quality materials and has an IP rating of IP67, making it a lasting addition to your vehicle. It’s easy to install with a DT-4 connector and is covered by Strands Lighting Division’s leading 3-year warranty.

This light is sold individually.

Wiring Harnesses:

For 1 Light

For 2 Lights

For 3 Lights

    • Unit pcs
    • Voltage 10-48V DC
    • Theoretical effect 110W
    • Consumption E-mode: 32W / Xperience mode: 105W
    • Functions High-beam, white position light , amber position light, logo light
    • Consumption specific function White pos: 3.5W, Amber pos: 3.55W
    • Theoretical lumen 7800lm
    • Actual lumen E-mode: 2800lm / Xperience mode: 6600lm

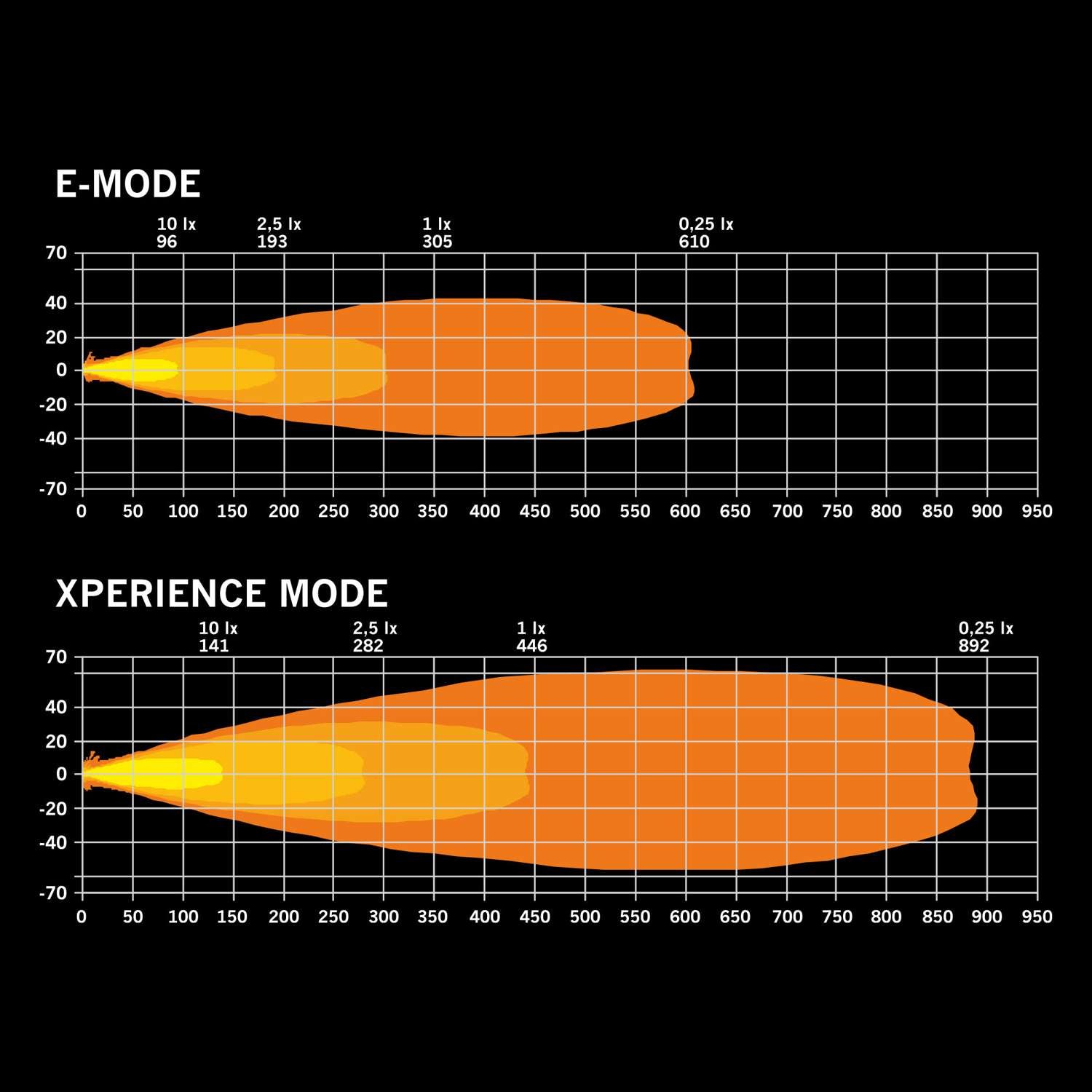

    • 1 lux @ E-mode: 305m / Xperience mode: 446m
    • Color temperature 6500K
    • Beam pattern Extended beam
    • Beam angle 17.7
    • Connection DT-4PIN
    • Cable length 550mm
    • Color housing Black
    • Color lens Clear/Dark
    • Color LED´s White and amber
    • Material bracket Stainless steel
    • Material housing/chassi Aluminium
    • Material lens Polycarbonate

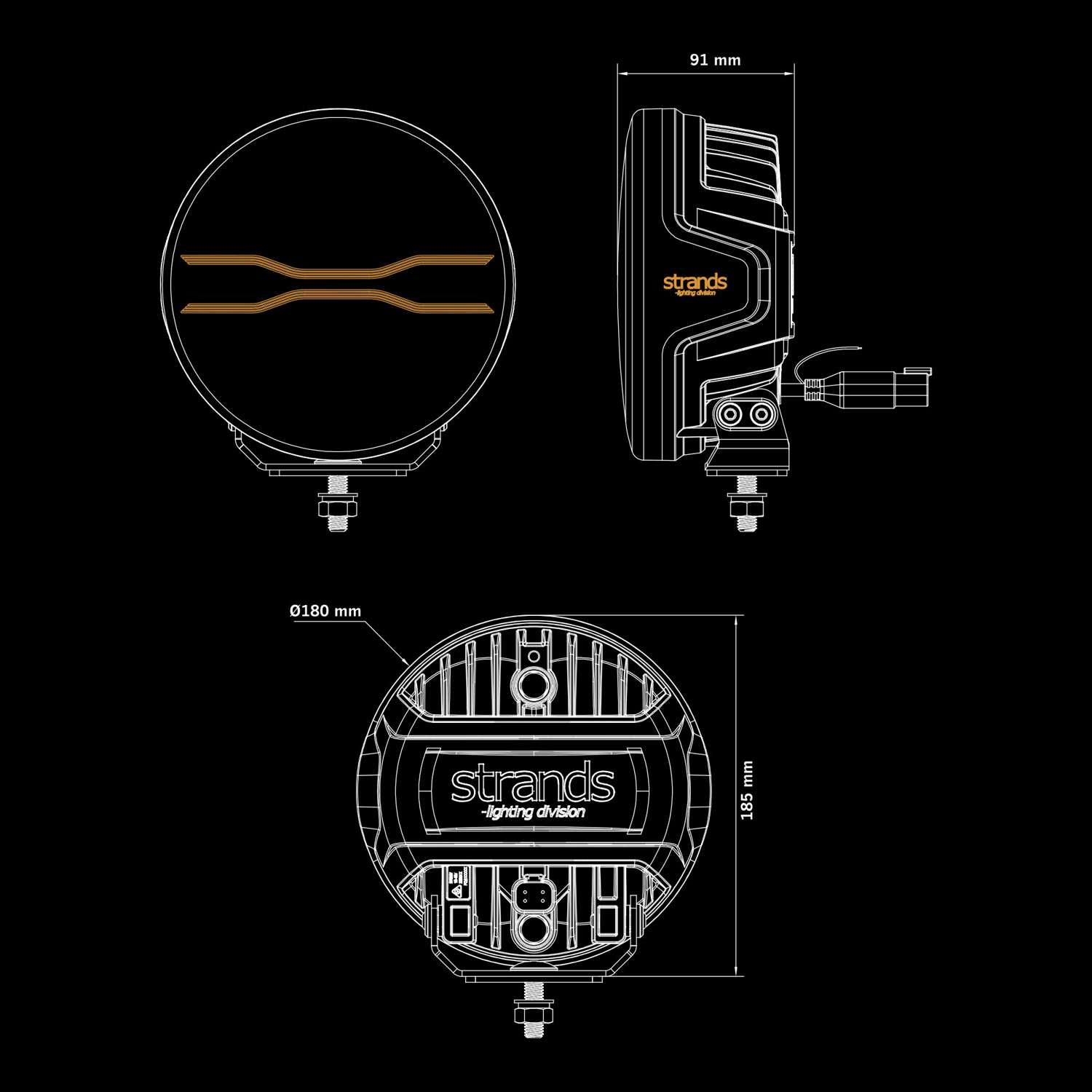

    • Depth 91mm
    • Height including bracket 185mm
    • Diameter 180mm
    • Weight 1.65kg
    • IP-class IP67
    • Operating temperature -30 - +65°C
    • E-approved Yes
    • According to regulation ECE R148, R149
    • Reference number 20
    • EMC ECE R10
